Coaxial connector DELOCK 89715 — FAKRA C male, 90° right-angle, 13.8×21.5×9.5 mm

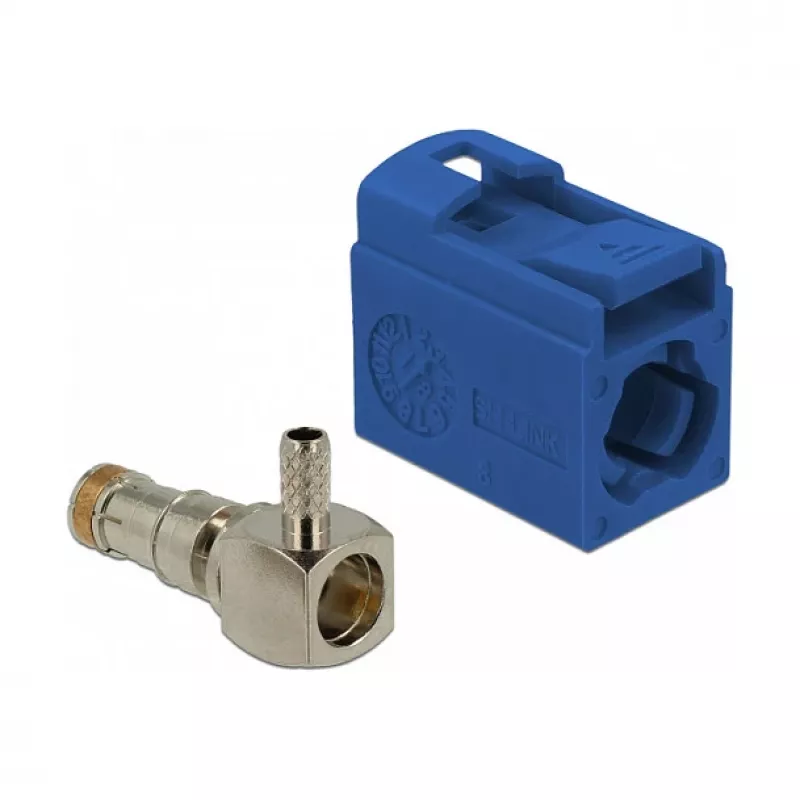

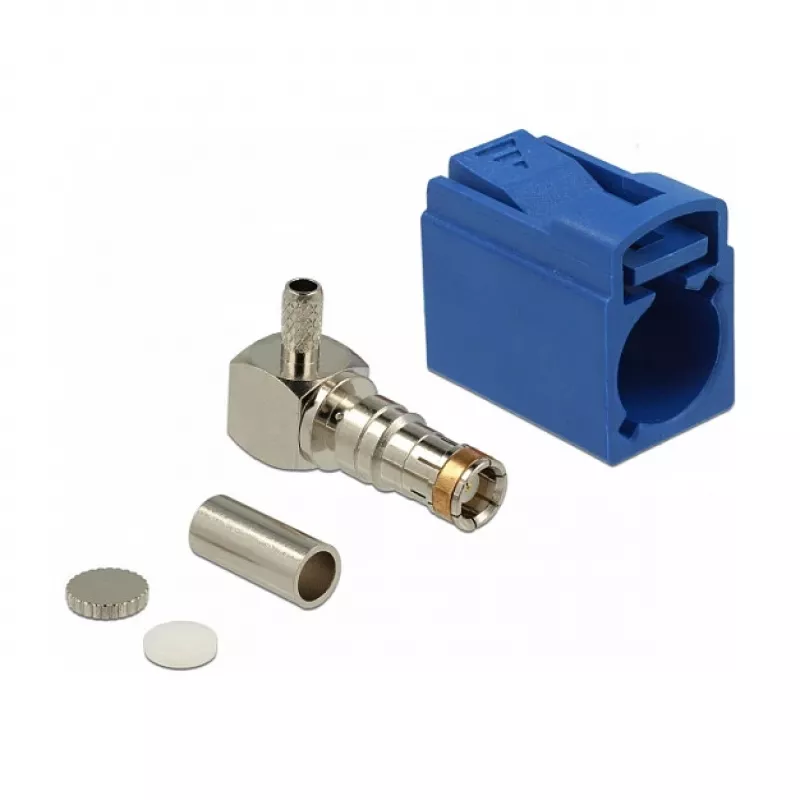

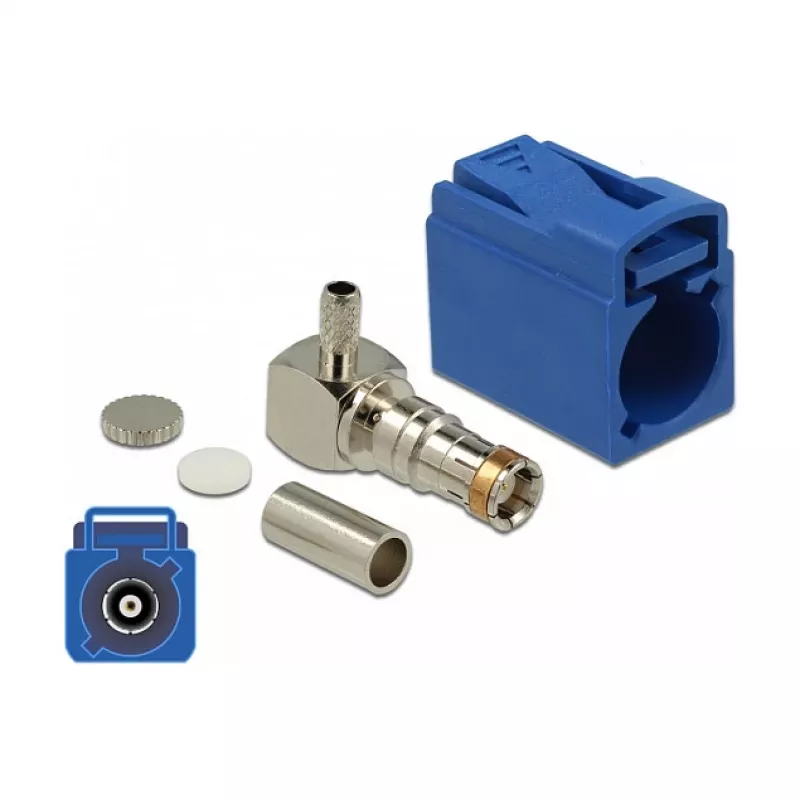

DELOCK 89715 is a right-angle coaxial connector with a FAKRA C male interface, intended for RF signal connections in automotive and communication equipment. The compact housing measures 13.8 × 21.5 × 9.5 mm and the 90° orientation helps to save installation space where straight connectors would be impractical. The connector is delivered in a polybag and is suitable for mating with standard FAKRA C female counterparts.

Advantages

The 90° right-angle design reduces the required mounting depth and facilitates routing of coaxial cables in confined spaces. A standardized FAKRA C male interface ensures compatibility with FAKRA C female connectors used in automotive and telecommunication systems. The small dimensions make it suitable for integration into compact housings and modules while maintaining the mechanical alignment and RF contact characteristics expected from FAKRA connectors.

Suitable for

Key specifications

How to use

Mount the connector to the mating FAKRA C female interface, ensuring correct alignment of the polarizing key and secure mechanical engagement. Route the coaxial cable to avoid sharp bends near the connector and secure the cable to relieve strain on the connector interface. Use appropriate torque and mounting hardware if the installation requires panel fixation or soldering to a PCB according to the device manufacturer’s instructions.

Recommendations

For reliable RF performance, avoid excessive bending or torsion at the 90° bend, verify compatibility with the mating FAKRA C female connector, and follow vehicle or equipment manufacturer guidelines for grounding and shielding to minimize signal loss and interference.
