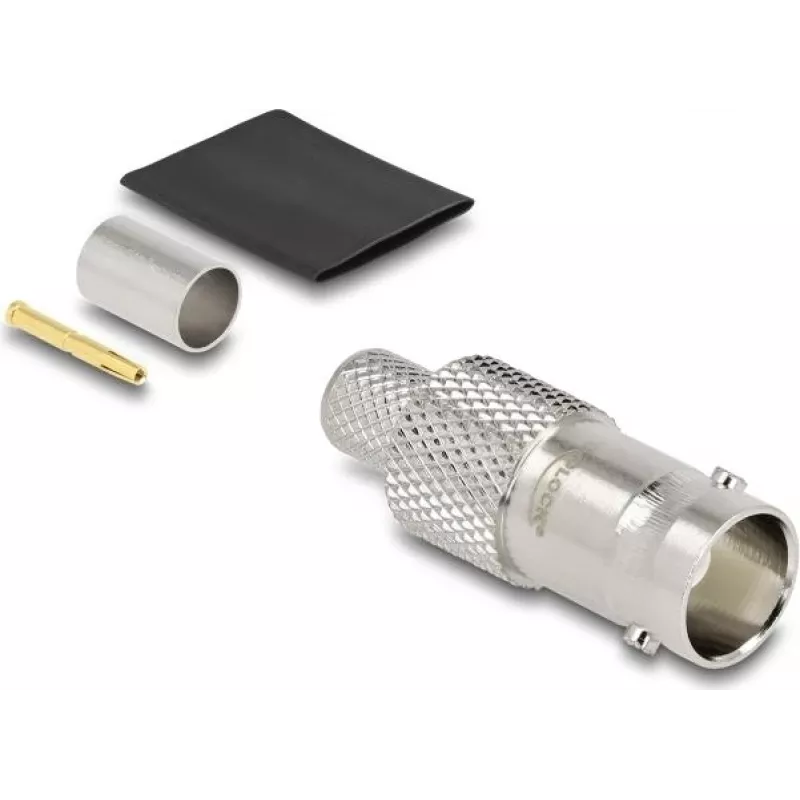

Coaxial BNC female connector DELOCK 91775 for crimping RG‑6 with heat‑shrink tube

DELOCK 91775 is a BNC female coaxial connector designed for crimping onto RG‑6 cable and supplied with a heat‑shrink tube. The connector provides a standard BNC female interface for CCTV, analog video and RF signal connections, allowing a crimped termination that secures the conductor and shield. The included heat‑shrink tube offers improved insulation and strain relief after installation.

Advantages

The connector is made for crimp termination on RG‑6 cable, combining a female BNC interface with a dedicated heat‑shrink sleeve to protect the joint from moisture and mechanical stress. Its design ensures consistent electrical contact for video and RF signals while the heat‑shrink tube enhances insulation and reduces the risk of cable movement affecting the termination.

Suitable for

Key specifications

How to use

Prepare the RG‑6 cable by stripping the outer jacket, braid and dielectric to the recommended dimensions for a crimp BNC termination. Slide the supplied heat‑shrink tube over the cable before fitting the connector. Insert the cable into the connector so the centre conductor and shield make correct contact, then secure the fitting with an appropriate crimp tool sized for RG‑6. After crimping, position the heat‑shrink tube over the joint and apply heat to shrink it for a secure, insulated finish.

Recommendations

Use a crimp tool recommended for RG‑6 terminations and verify the crimp quality and electrical continuity after assembly. Apply heat evenly to the supplied heat‑shrink tube to ensure full adhesion and strain relief. Inspect installations periodically in environments exposed to moisture or mechanical stress.
