Miniature circuit breaker HiSmart NV821495 2-pole 16A C curve

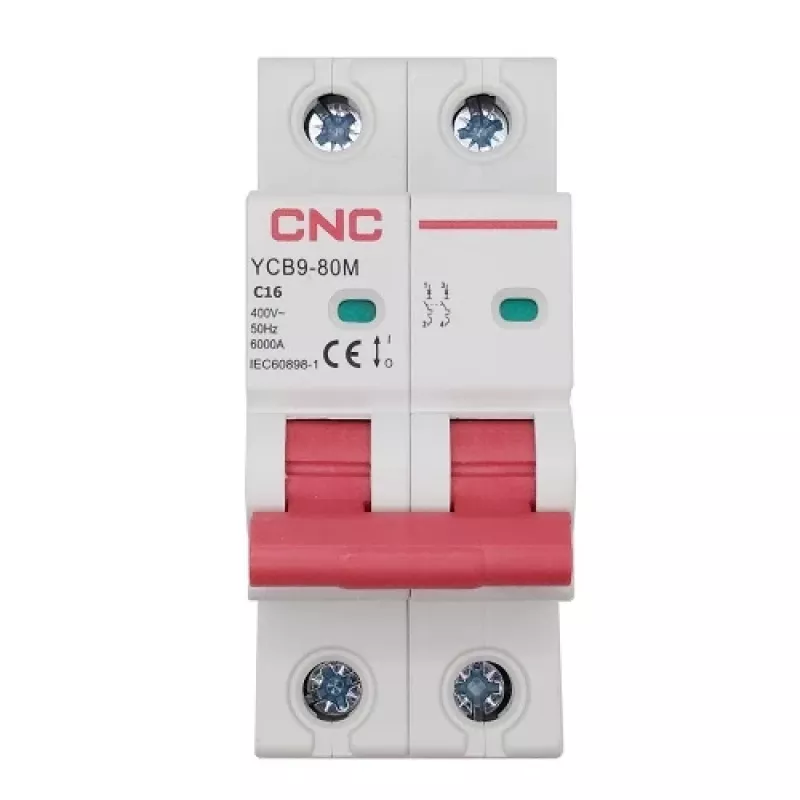

Miniature circuit breaker HiSmart NV821495 is a 2-pole protective device rated at 16 A with a type C tripping characteristic. It provides automatic disconnection for overload and short-circuit conditions and is suitable for residential and light commercial electrical circuits. The compact breaker mounts on a standard 35 mm DIN rail and supports top and bottom connections for cables or pin-type busbars.

Advantages

The HiSmart NV821495 offers overload and short-circuit protection with a C curve characteristic for general-purpose circuits. It features an anti-mistake contact terminal block, flame-retardant and impact-resistant construction, and a visual contact position indicator (red = closed, green = open). The device complies with IEC 60898-1 / EN 60898-1 standards and provides a rated breaking capacity of 6 kA.

Suitable for

• Residential circuit protection
• Light commercial electrical installations
• Protection of lighting and socket circuits
• DIN rail distribution boards (35 mm)

Key specifications

• Number of poles: 2
• Rated current: 16 A
• Tripping characteristic: Class C
• Rated voltage (Ue): AC 400 V
• Insulation voltage (Ui): 500 V
• Rated frequency: 50/60 Hz
• Rated breaking capacity (Icu): 6000 A
• Rated impulse withstand voltage (Uimp): 6000 V
• Mechanical life: 20000 operations
• Electrical life: 8000 operations
• Protection class: IP20
• Terminal connection type: cable / pin-type busbar
• Wire / busbar cross-sectional area: up to 25 mm² / 18-3 AWG
• Connection: top and bottom
• Installation: DIN rail EN 60715 (35 mm) with fast clip
• Operating temperature: -5°C to +40°C (daily average <35°C)
• Storage temperature: -25°C to +70°C
• Dimensions: 85.5 x 78.8 x 36 mm
• Standards: IEC 60898-1 / EN 60898-1

How to use

Install the HiSmart NV821495 on a standard 35 mm DIN rail using the fast clip device. Connect incoming and outgoing conductors to the top and bottom terminals, ensuring correct conductor cross-section up to 25 mm² or compatible busbar pins. Use the contact position indicator to verify the switch state (red = closed, green = open). The breaker will trip automatically under overload or short-circuit conditions and can be manually reset when the fault is cleared.

Recommendations

Verify that the selected 16 A C-curve breaker matches the circuit load and coordination requirements. Ensure installation and maintenance are performed by a qualified electrician and comply with local electrical codes. Do not expose the device to temperatures or conditions outside the specified ranges.
