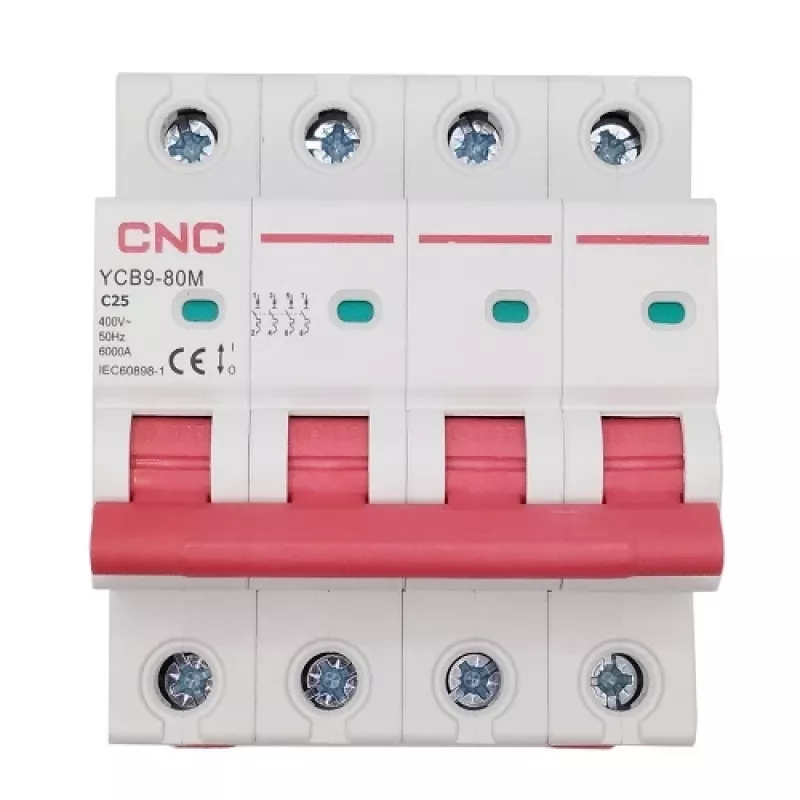

CNC Circuit Breaker, 4P, 25A, C Class, 6kA

CNC Circuit Breaker, 4P, 25A, C Class, 6kA
CNC Circuit Breaker, 4P, 25A, C Class, 6kA
R386
CNC Circuit Breaker, 4P, 25A, C Class, 6kA Circuit breaker, 4-pole, 25 A, Class C, 6 kA. Provides protection against overload and short circuits. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green that it is open). Rated short-circuit... Read More
Stock 5 Code 2181631 Brand CNC Model NV821617 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

CNC Circuit Breaker, 4P, 25A, C Class, 6kA

Circuit breaker, 4-pole, 25 A, Class C, 6 kA. Provides protection against overload and short circuits. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green that it is open). Rated short-circuit breaking capacity (Icu): 6000 A.

Genuine CNC product — MPN: NV821617 · EAN: 6942034316143.

Key Highlights
  • Protection of three-phase circuits in commercial and industrial distribution boards
  • Multi-pole protection for motors, compressors and other inductive loads
  • Panelboards and control cabinets requiring DIN-rail devices
  • Number of poles: 4
  • Rated current: 25 A
  • Tripping class: C
  • Rated voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A (6 kA)
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Protection degree: IP20
  • Terminal type: cable / pin-type busbar
  • Wire/busbar cross-section: up to 25 mm² / 18-3 AWG
  • Connection: top and bottom
  • Mounting: DIN rail EN 60715 (35 mm) with fast clip device
  • Operating temperature: -5 °C to +40 °C (daily average
  • Storage temperature: -25 °C to +70 °C
  • Dimensions: 85.5 x 78.8 x 71.5 mm
  • Standards: IEC 60898-1 / EN 60898-1
  • Warranty: 24 months
