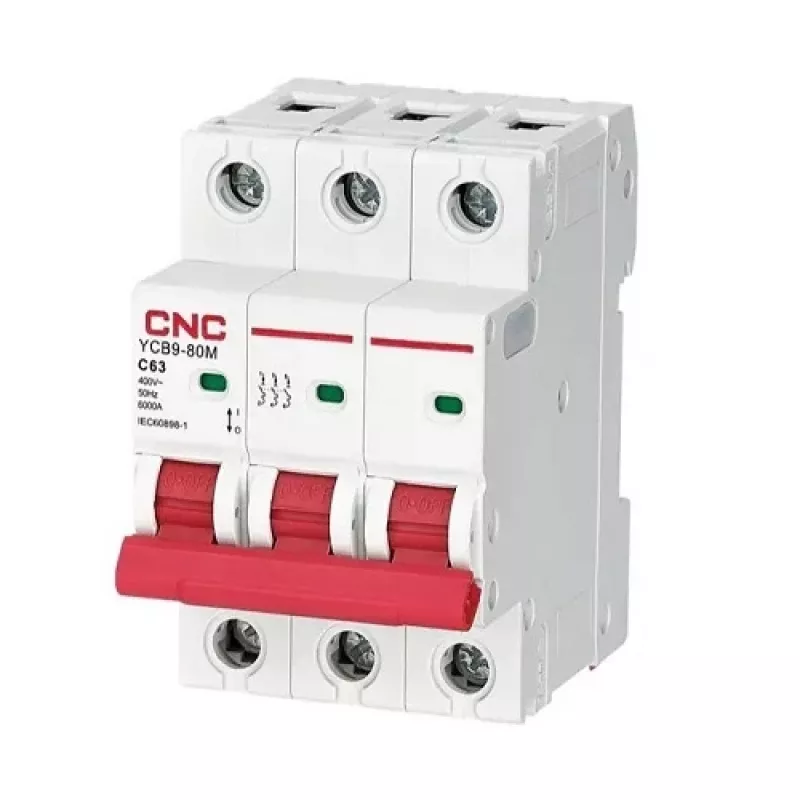

CNC Circuit Breaker, 3P, 63A, C Class, 6kA

CNC Circuit Breaker, 3P, 63A, C Class, 6kA
CNC Circuit Breaker, 3P, 63A, C Class, 6kA
R228
CNC Circuit Breaker, 3P, 63A, C Class, 6kA Automatic circuit breaker, 3-pole, 63A, class C, 6kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green shows it is open). Rated short... Read More
Stock 5 Code 2181628 Brand CNC Model NV821587 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

CNC Circuit Breaker, 3P, 63A, C Class, 6kA

Automatic circuit breaker, 3-pole, 63A, class C, 6kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green shows it is open). Rated short-circuit breaking capacity (Icu): 6000A.

Genuine CNC product — MPN: NV821587 · EAN: 6942034315825.

Key Highlights
  • Three‑phase distribution boards in residential buildings
  • Small commercial electrical installations
  • Light industrial circuits with moderate inrush currents
  • Number of poles: 3
  • Rated current (In): 63 A
  • Tripping class: C
  • Rated operational voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Protection degree: IP20
  • Terminal connection: cable or pin‑type busbar, up to 25 mm² / 18‑3 AWG
  • Connection orientation: top and bottom
  • Mounting: DIN rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5°C to +40°C (daily average
  • Storage temperature: -25°C to +70°C
  • Dimensions (H×W×D): 85.5 × 78.8 × 54 mm
  • Standards: IEC 60898‑1 / EN 60898‑1
  • Rated short‑circuit breaking capacity: 6 kA
