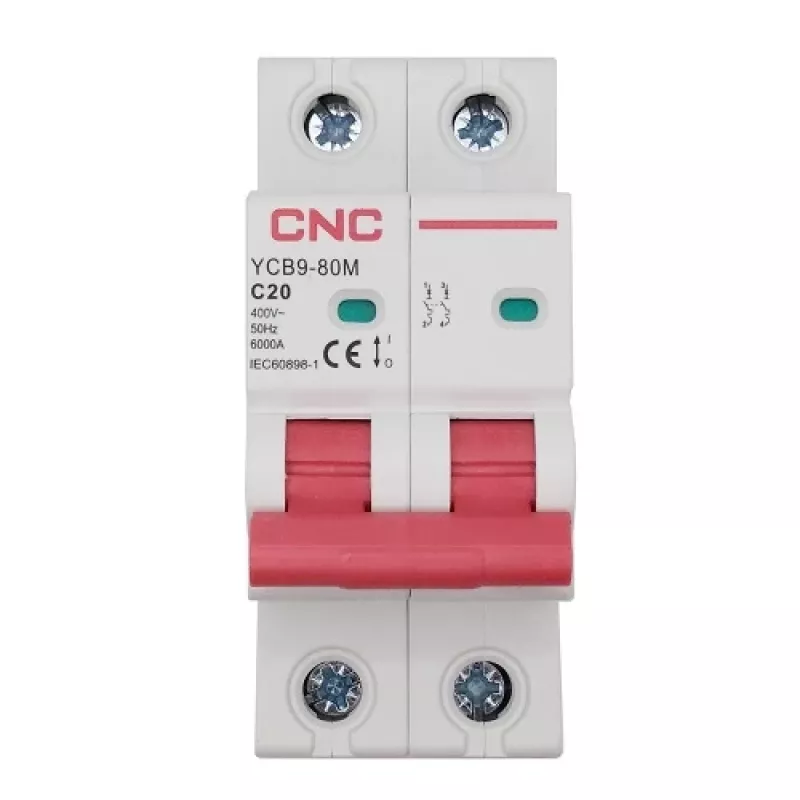

CNC Circuit Breaker, 2P, 20A, C Class, 6kA

CNC Circuit Breaker, 2P, 20A, C Class, 6kA
CNC Circuit Breaker, 2P, 20A, C Class, 6kA
R185
CNC Circuit Breaker, 2P, 20A, C Class, 6kA Miniature circuit breaker, 2-pole, 20A, Class C, 6kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green shows it is open). Rated ultim... Read More
Stock 5 Code 2181617 Brand CNC Model NV821501 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

CNC Circuit Breaker, 2P, 20A, C Class, 6kA

Miniature circuit breaker, 2-pole, 20A, Class C, 6kA. Provides protection against overload and short circuit. Resistant to flame, high temperature and impact. Contact position indication (red shows the contact is closed, green shows it is open). Rated ultimate short-circuit breaking capacity (Icu): 6,000 A.

Genuine CNC product — MPN: NV821501 · EAN: 6942034315405.

Key Highlights
  • Residential distribution boards
  • Commercial branch circuit protection
  • Protection of lighting and socket circuits
  • DIN-rail electrical panels where space is limited
  • Number of poles: 2
  • Rated current: 20 A
  • Tripping class: C
  • Rated voltage (Ue): AC 400 V
  • Insulation voltage (Ui): 500 V
  • Rated frequency: 50/60 Hz
  • Rated breaking capacity (Icu): 6000 A
  • Rated impulse withstand voltage (Uimp): 6000 V
  • Mechanical life: 20,000 cycles
  • Electrical life: 8,000 cycles
  • Safety class: IP20
  • Terminal connection type: cable / pin-type busbar
  • Wire/busbar cross-section: up to 25 mm² / 18-3 AWG
  • Connection direction: top and bottom
  • Mounting: DIN-rail EN 60715 (35 mm) with fast clip
  • Operating temperature: -5°C to +40°C (daily average
  • Storage temperature: -25°C to +70°C
  • Dimensions: 85.5 x 78.8 x 36 mm
  • Standards: IEC 60898-1 / EN 60898-1
