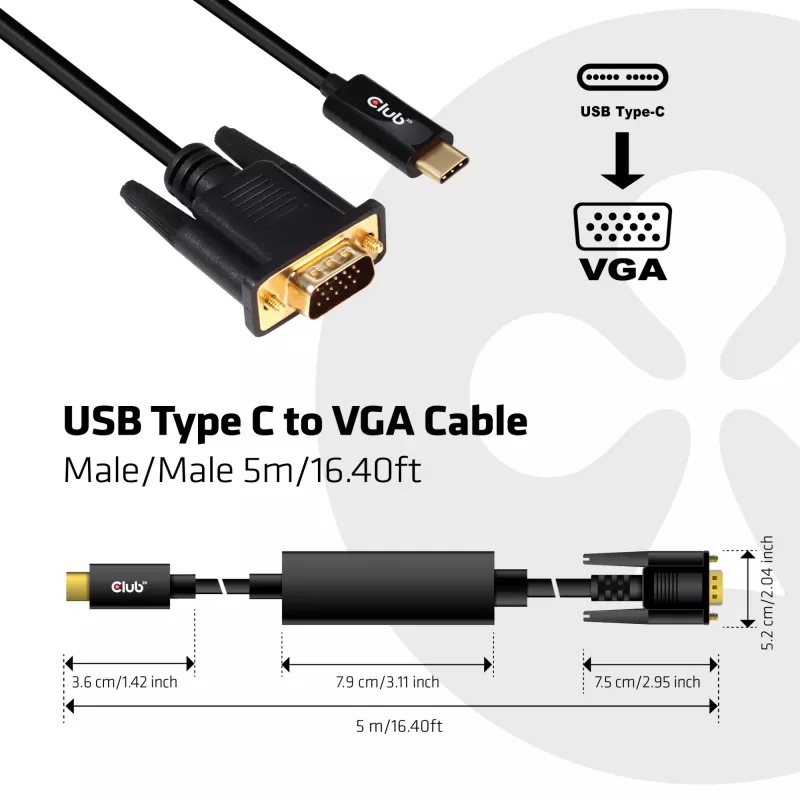

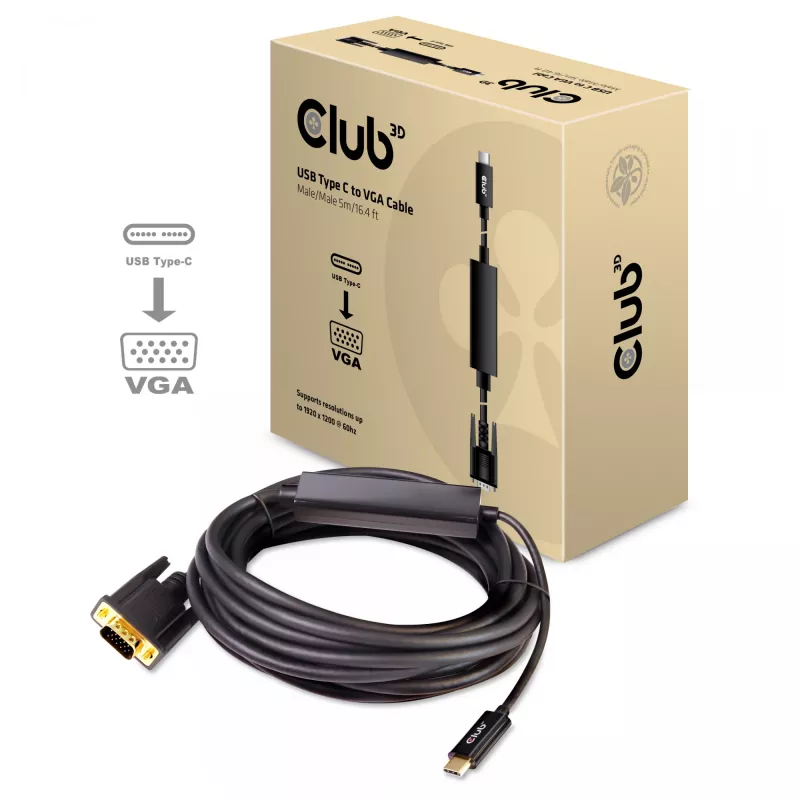

USB Type C to VGA Active Cable M/M CLUB3D CAC-1512 5m

The Club 3D CAC-1512 is a 5 m active USB Type‑C to VGA cable that connects a USB‑C computer or device to a VGA monitor or projector. The cable uses a reversible USB‑C connector and requires the host device to support DisplayPort Alt Mode over USB‑C. It supports widescreen resolutions up to 1920x1200 (WUXGA) and is supplied in black.

Advantages

This all‑in‑one cable combines an active adapter and cable in a single 5 m lead, removing the need for separate dongles. It provides a stable analog VGA output from USB‑C sources that support DP Alt Mode and delivers up to 1920x1200 resolution suitable for standard widescreen displays. The reversible USB‑C connector simplifies connection.

Suitable for

• Connecting USB‑C laptops (MacBook, MacBook Pro, Chromebook, Dell XPS) to VGA projectors
• Extending or mirroring desktop output to VGA monitors in offices or classrooms
• Presentations and meeting room setups using legacy VGA displays

Key specifications

• Model: CLUB3D CAC-1512
• Length: 5 m
• Connector 1: USB Type‑C (requires DisplayPort Alt Mode)
• Connector 2: VGA (HD15)
• Maximum resolution: up to 1920x1200 (WUXGA)
• Color: Black
• Weight: 0.245 kg

How to use

Connect the USB‑C plug to a compatible host device that supports DisplayPort Alt Mode. Plug the VGA end into the monitor or projector and select the appropriate input on the display. The cable is active and powered by the host, so no external power is required. Configure the display settings on your computer to set resolution and mirroring/extension options.

Recommendations

Use this cable with devices that explicitly support DisplayPort Alt Mode over USB‑C. For best results, set the display resolution to 1920x1200 or 1920x1080 in your operating system. Avoid kinking the cable and route it to prevent sharp bends.
