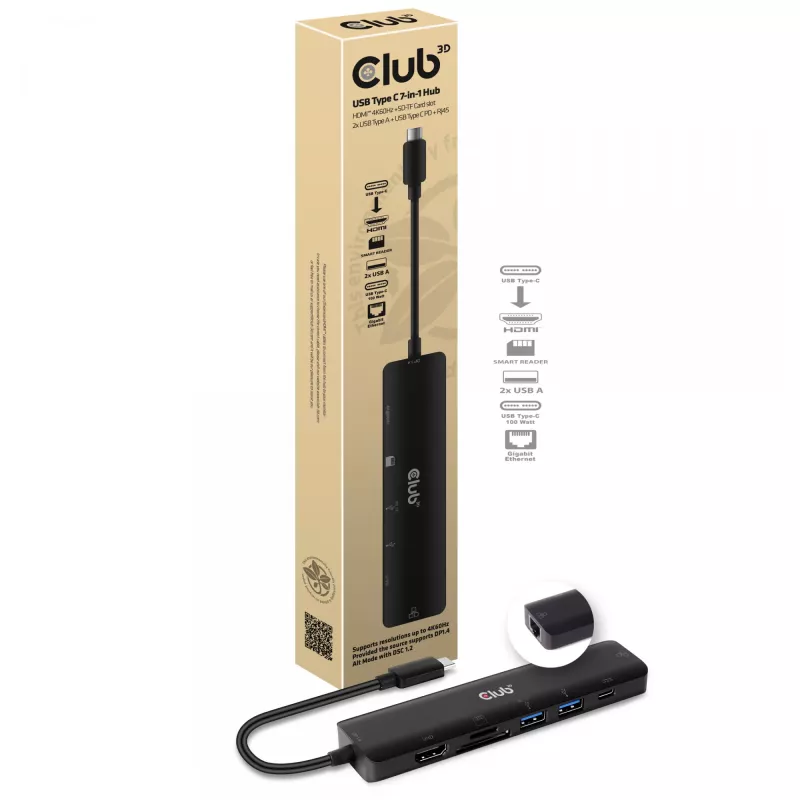

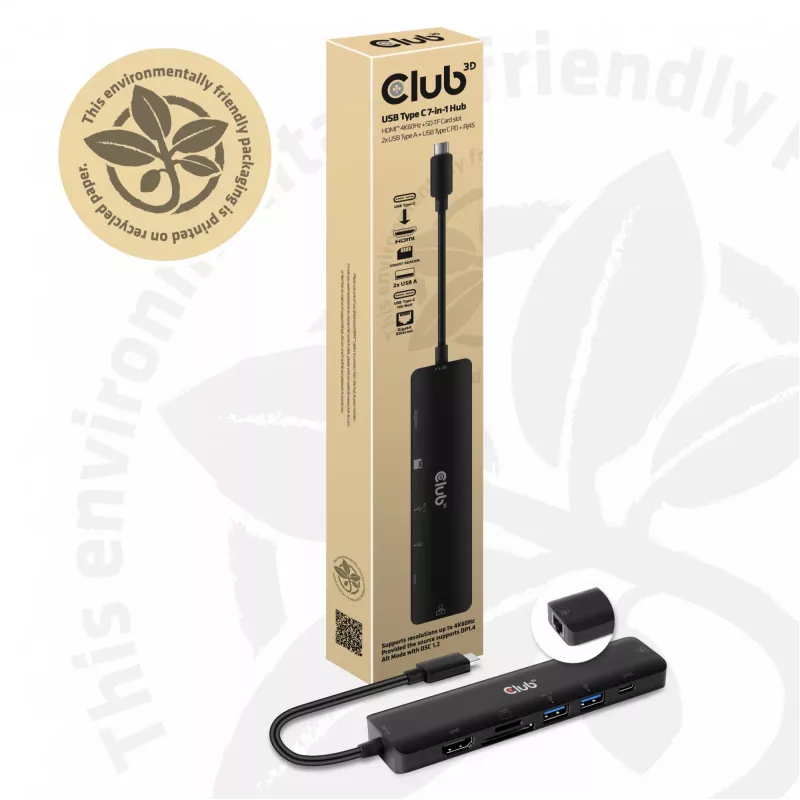

CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3

CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
R1,550
CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.),especially for the host with a single USB Type ... Read More
Stock 110 Code 361259 Brand CLUB 3D Model CSV-1592 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

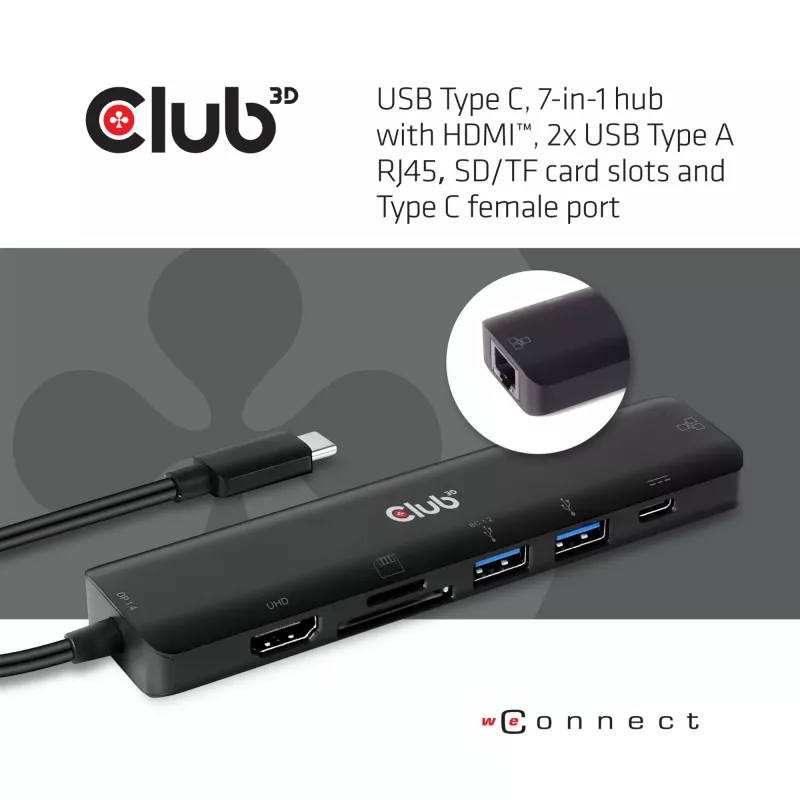

CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.),especially for the host with a single USB Type C port. This hub adopts the latest DP 1.4 Alt mode technology available today, enabling to output HDMI™ video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2x USB Type A ports allow you to connect 2 USB devices simultaneously.

SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the USB Type C female supports PD 3.0 with max 100W PD Charging. It can work on all USB Type C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode).When working on Thunderbolt™3 host, this product transmits DP signal.

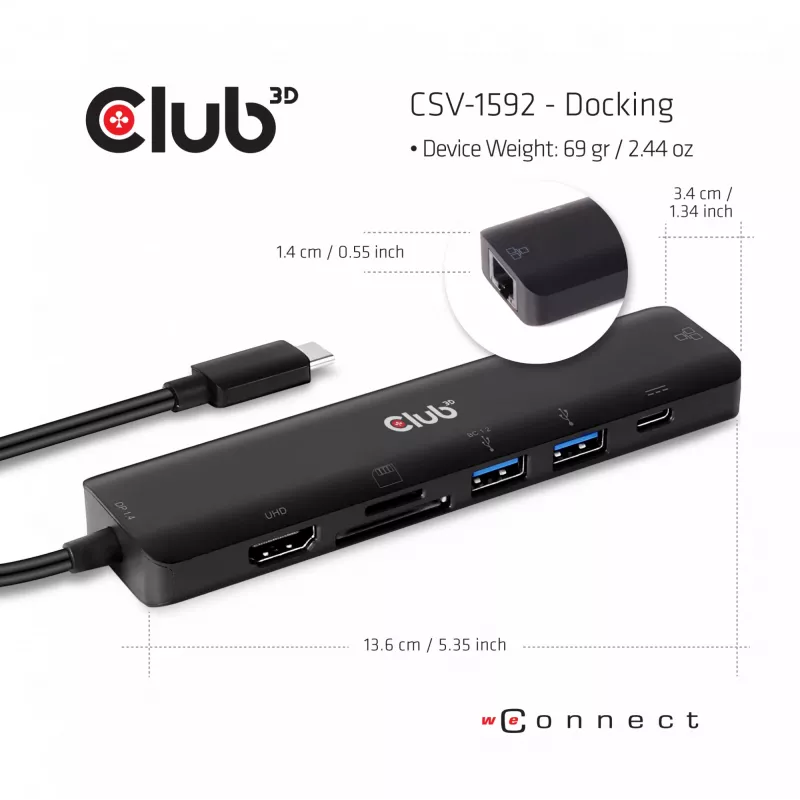

CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C. Width: 136 mm, Depth: 34 mm, Height: 14 mm

Key Highlights
  • USB Type C Male (Connection to host)
  • Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps
  • (8.1Gbps per lane),downward compatible with DP1.2 Alt mode
  • Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format
  • Support HDMI™ max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth
  • Support 6/8/10/12 bit color depth output
  • Support output pixel format RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2
  • Support HDCP 2.2&HDCP1.4
  • Support HDR
  • Note: When connecting a DP 1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz; When connecting a DP 1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz due to bandwidth limitation
  • 2x USB Type A 3.0
  • 1- USB Type A port supports BC 1.2 with max. 7.5W([email protected]) downstream charging
  • 2- USB Type A share max. 8W (5V/1.6A) downstream charging
  • Max 5Gbps bandwidth per USB Type A port
  • SD/Micro SD
  • Support Secure Digital v3.0 UHS-I (Ultra High Speed)SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
  • RJ45 (Gigabit Ethernet) Support 10Mbps/100Mbps/1000Mbps
  • USB Type C Female (for PD Charging)
  • Support PD Charging 100W (20V/5A)
  • Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
  • 8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host

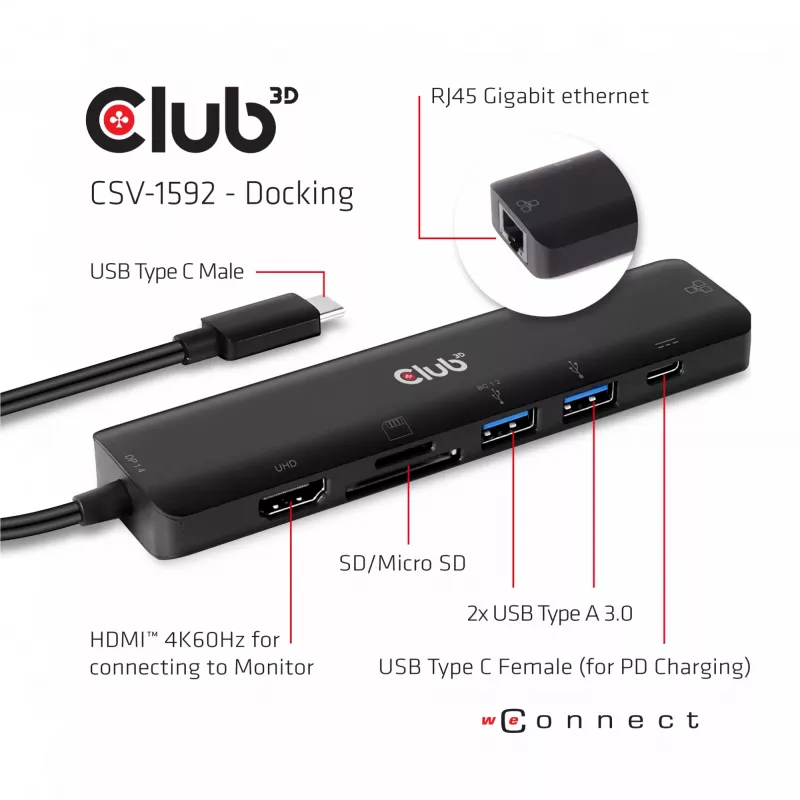

  • Available Interfaces:
  • Upstream :
  • 1x USB Type C Male (Host connection)
  • Downstream :
  • 1x HDMI™ Female for connecting to Monitor
  • 1x SD Card Slot
  • 1x Micro SD Card Slot
  • 2x USB type A, BC1.2 charging
  • 1x USB Type-C female PD (Charging + Data)
  • 1x RJ45
  • Docking
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • USB Power Delivery (USB PD)
  • Ethernet LAN 10,100,1000 Mbit/s
  • MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC
  • Plug and Play
Specifications
Card reader integrated
Yes
Certification
FCC, CE EMI
Charging function
Yes
Compatibility
Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC
Compliance certificates
RoHS
Connectivity technology
Docking
Country of origin
China
Depth
34 mm
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Harmonized System (HS) code
84733020
HD type
4K Ultra HD
HDMI ports quantity
1
HDMI version
2.0
Headphone outputs
0
Height
14 mm
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Manual
Yes
Maximum digital resolution
3840 x 2160 pixels
Microphone in
No
Package depth
60 mm
Package height
30 mm
Package weight
110 g
Package width
320 mm
Plug and Play
Yes
Power connector
USB Type-C
Power source type
USB
Product colour
Black
Quantity per pack
1 pc(s)
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
USB Type-C DisplayPort Alternate Mode
Yes
Weight
69 g
Width
136 mm
Windows operating systems supported
Yes

Leaflet

Open Leaflet
