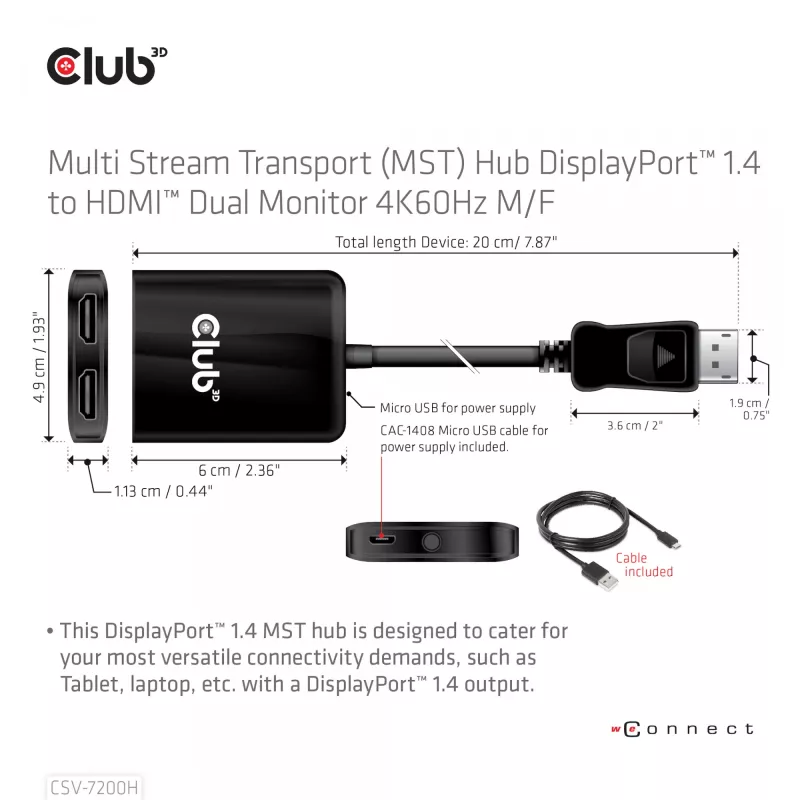

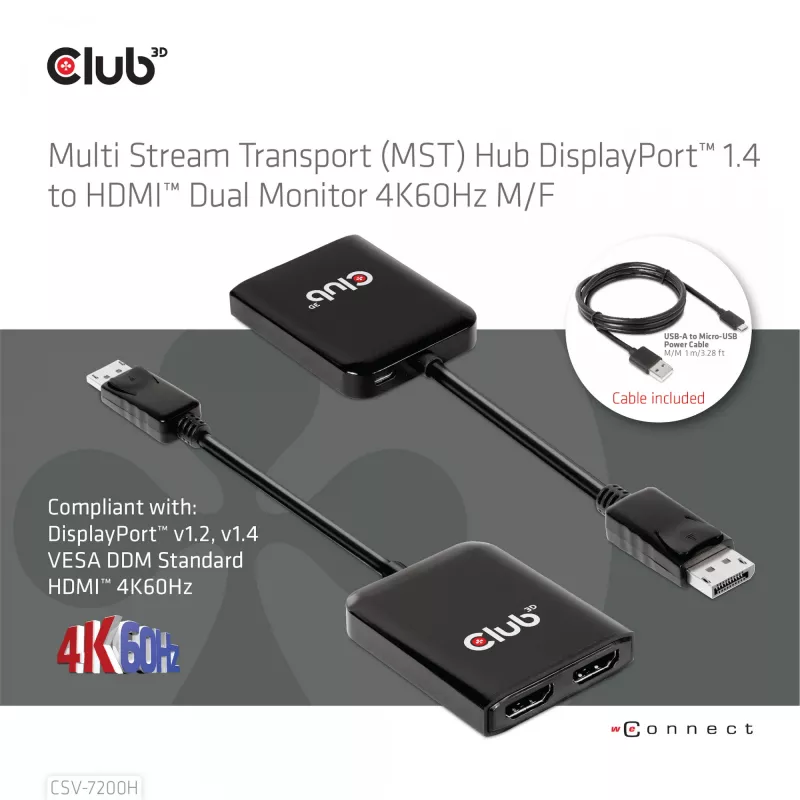

CLUB3D Multi Stream Transport (MST) Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F

The CLUB3D CSV-7200H MST Hub DisplayPort 1.4 to Dual HDMI 4K60Hz lets you connect two HDMI displays to a single DisplayPort 1.4 output. It supports Multi Stream Transport (MST) mode to show identical content on both screens or extend the desktop across two monitors for a panoramic workspace. The compact hub provides a portable alternative to a full docking station for systems with DP 1.2/1.4 graphics outputs and is suitable for gaming and commercial applications.

Advantages

The MST hub supports dual 4K displays at 60 Hz from one DisplayPort 1.4 source, offering both mirror and extend modes. It is compliant with ROHS, FCC and CE EMI standards for safety and electromagnetic compatibility. Its small footprint and plug-and-play operation make it convenient for mobile setups without requiring additional drivers.

Suitable for

• Extending a laptop or desktop workspace across two HDMI monitors
• Mirroring a single source to two displays for presentations
• Gaming setups that use DP 1.2/1.4 graphics cards
• Portable multi-monitor requirements for commercial or office use

Key specifications

• Model: CLUB3D CSV-7200H
• Interface: DisplayPort 1.4 input to Dual HDMI outputs
• Display support: Up to 4K (3840×2160) at 60 Hz per monitor (MST)
• Modes: Mirror and Extend (MST)
• Compliance: ROHS, FCC, CE EMI
• MPN: CSV-7200H • EAN: 8719214471996

How to use

Connect the hub to a DisplayPort 1.4 output on your host device. Attach up to two HDMI monitors to the hub's HDMI outputs. Configure display mode (mirror or extend) in your operating system's display settings. Ensure your graphics output supports DP MST (DisplayPort 1.2 or 1.4) to achieve dual 4K60Hz operation.

Recommendations

Use high-quality HDMI cables and verify the host GPU driver and firmware are up to date. For best results with two 4K60Hz displays, confirm the host device supports sufficient bandwidth and MST; if performance is limited, reduce resolution or refresh rate.
