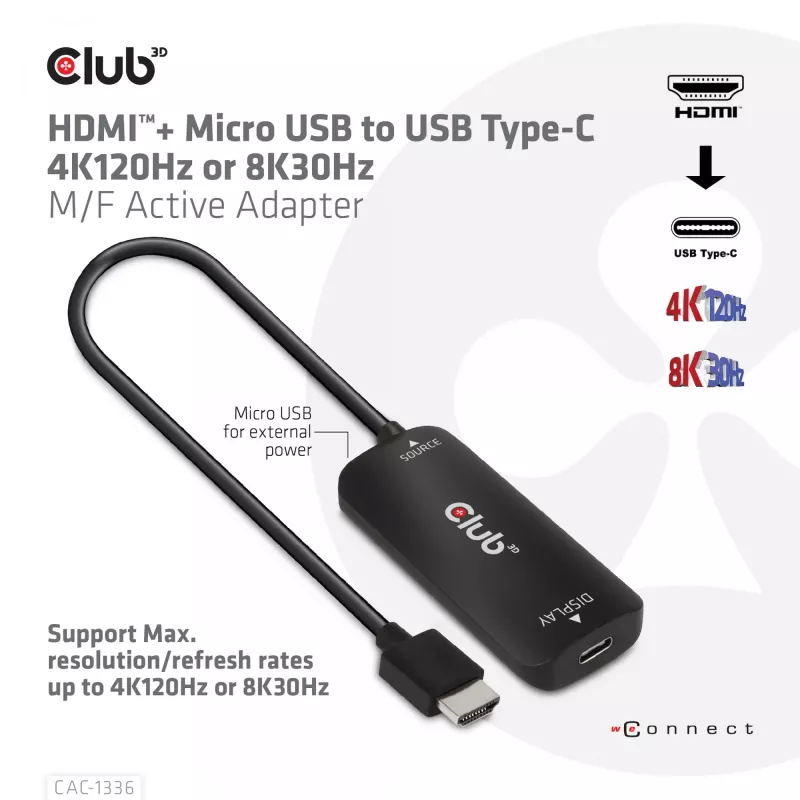

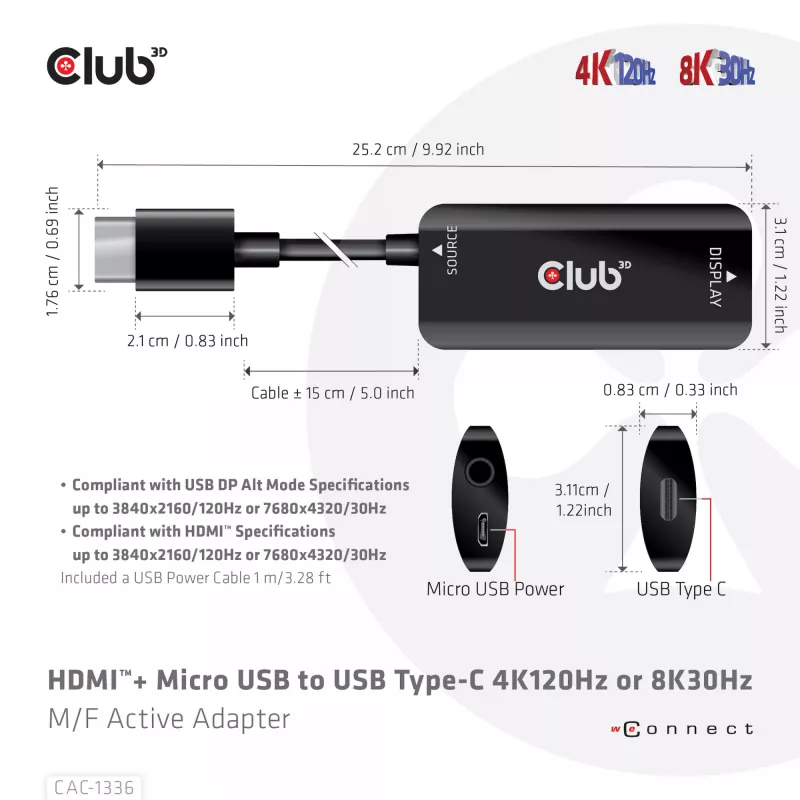

CLUB3D HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

The Club 3D CAC-1336 Active Adapter converts an HDMI source plus micro USB power into a USB Type-C connection compatible with displays that support USB Type-C 4K@120Hz or 8K@30Hz. The adapter enables connection of HDMI devices to modern USB-C monitors and displays that are self-powered and accept these resolutions, and it ships with a 1 m USB Type-A to Micro USB cable for power.

Advantages

This adapter supports high-resolution video output up to 4K at 120 Hz or 8K at 30 Hz when the HDMI source provides those formats. It is compact and lightweight (approx. 28 g) for easy transport, and includes a Micro USB power cable. The adapter is CE, FCC and RoHS certified and uses a powered design to bridge HDMI sources to USB Type-C displays that require external power.

Suitable for

• Connecting HDMI video sources (PCs, laptops, media players) to USB Type-C monitors that are self-powered
• Driving USB-C displays at 4K@120Hz or 8K@30Hz when supported by the HDMI source
• Temporary or portable setups where a lightweight active adapter is needed

Key specifications

• Model: CLUB3D CAC-1336
• Input: HDMI (video) + Micro USB (5V/1.5A power)
• Output: USB Type-C (to display)
• Supported resolutions: up to 4K@120Hz or 8K@30Hz (dependent on source capability)

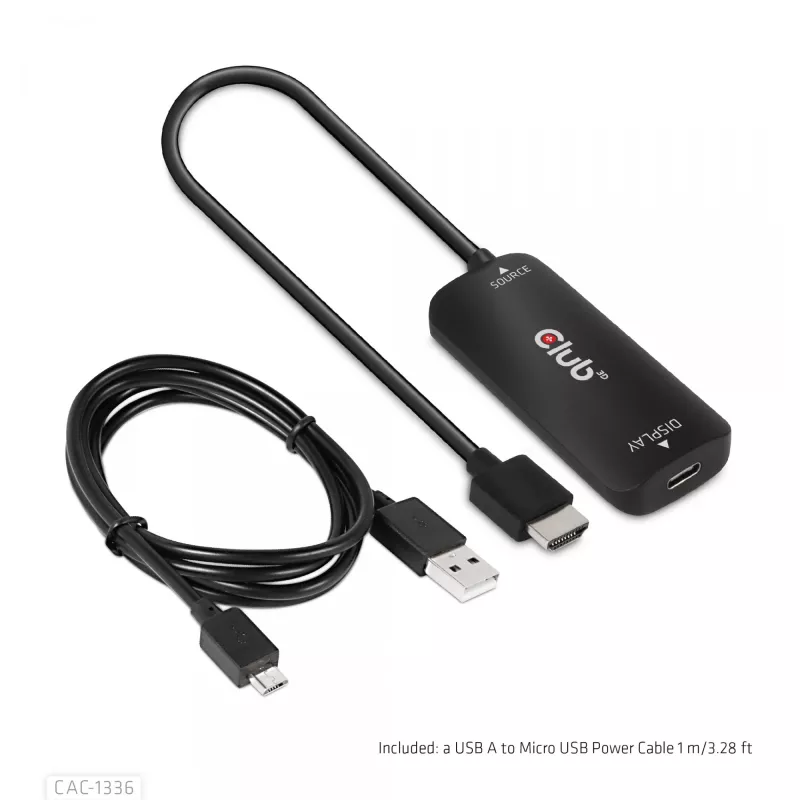

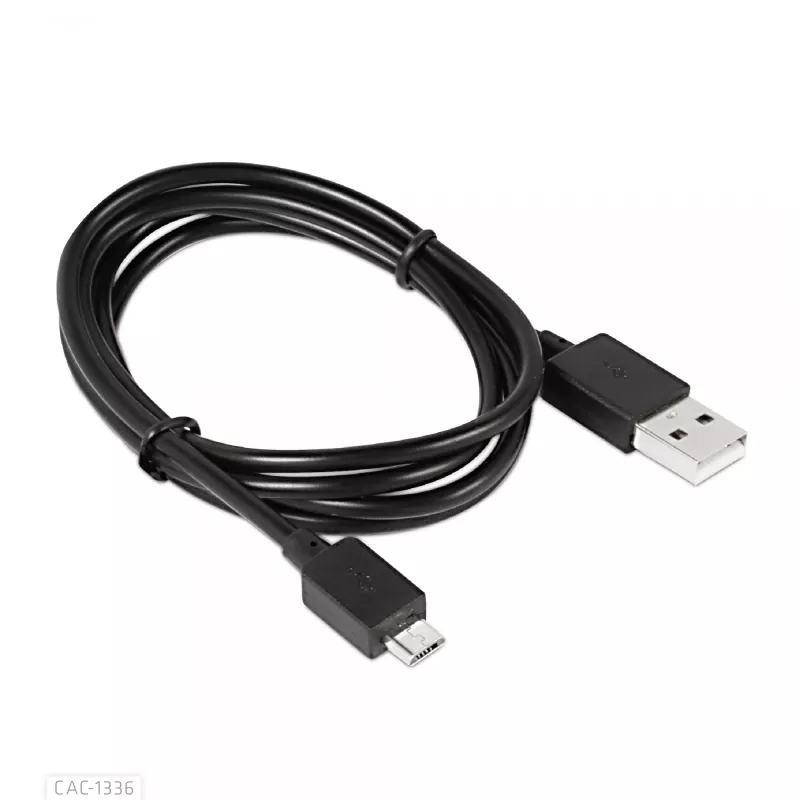

• Cable included: USB Type-A to Micro USB M/M, 1 m
• Weight: 0.028 kg
• Colour: Black
• Certifications: CE, FCC, RoHS

How to use

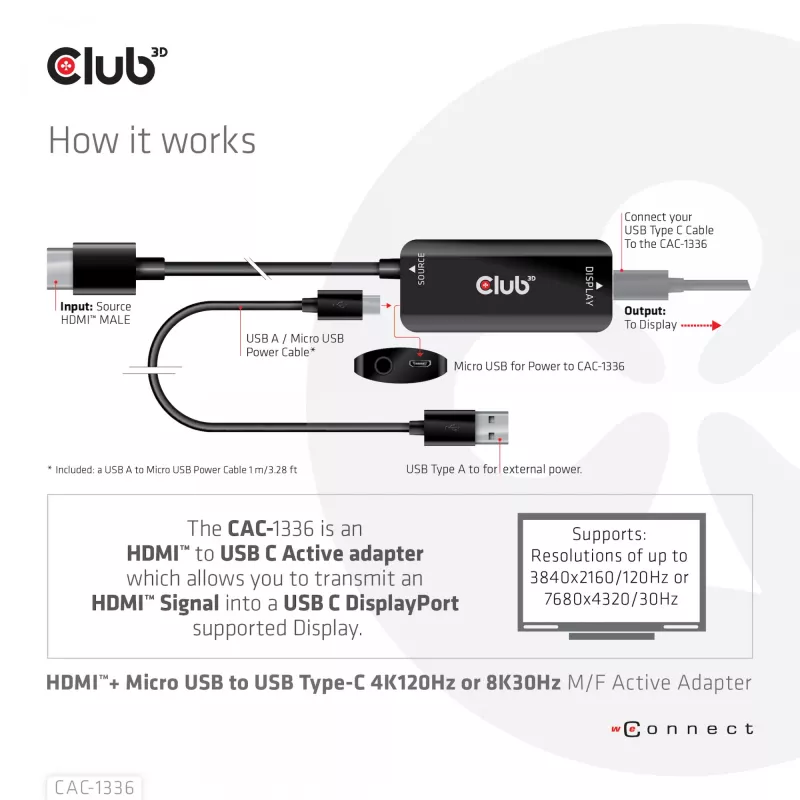

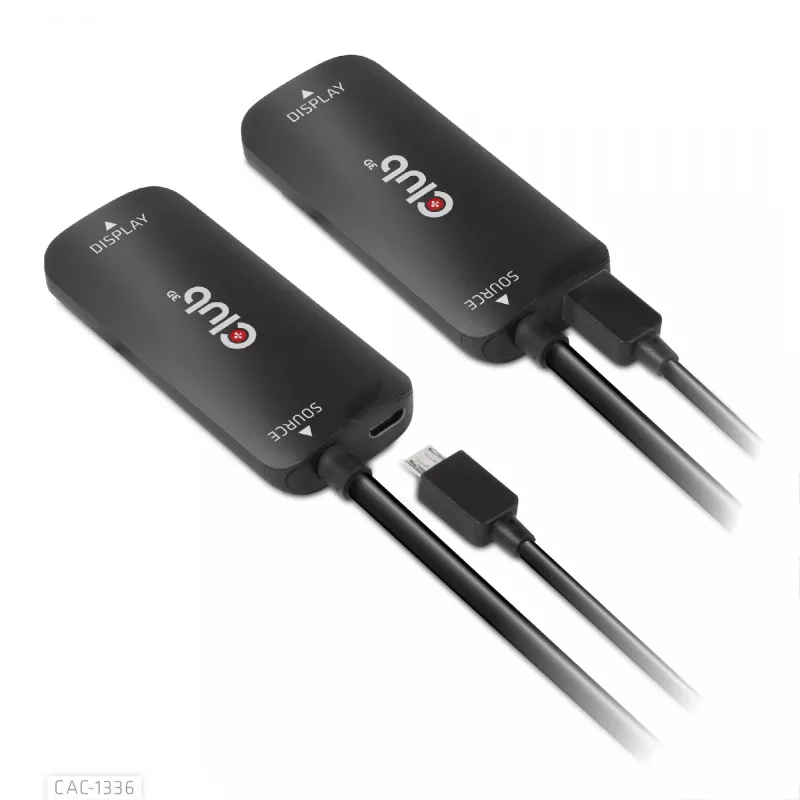

Connect the HDMI output of your source device to the adapter's HDMI connector. Plug the supplied USB Type-A to Micro USB cable into a 5V/1.5A power source and into the adapter's Micro USB power port. Finally, connect the adapter's USB Type-C plug to the USB-C input on the display. Ensure the display is self-powered and that your HDMI source supports the desired resolution and refresh rate.

Recommendations

For optimal results use Club 3D certified extension or adapter cables such as the CAC-1576 or CAC-1571. This adapter works only with self-powered USB Type-C displays; it will not function with bus-powered USB-C monitors. If you need help selecting compatible cables or confirming device support, consult Club 3D's website or contact [email protected].
