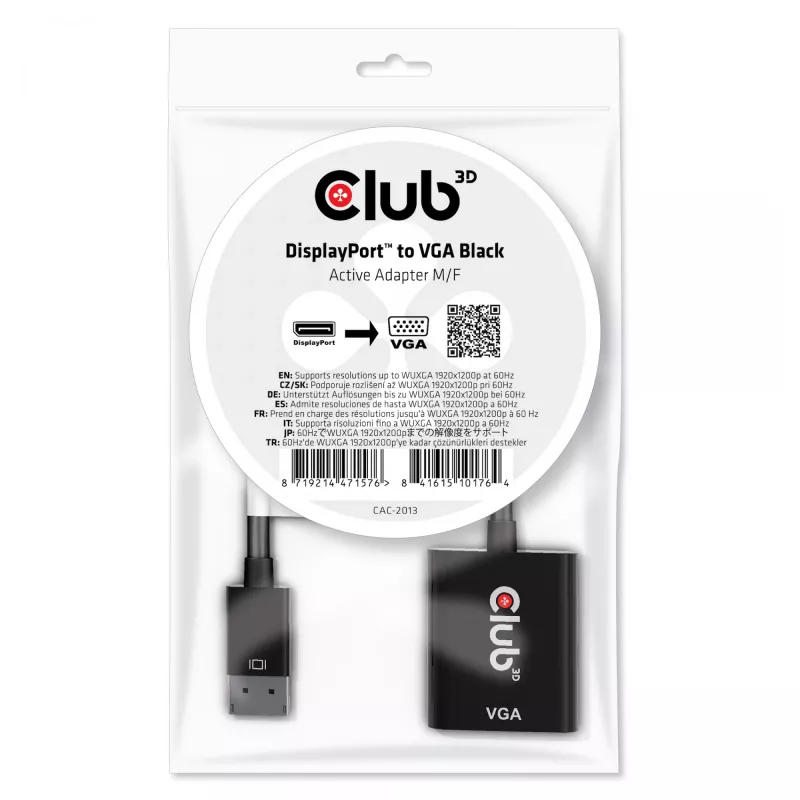

CLUB3D DisplayPort™ to VGA Black Active Adapter M/F

The CLUB3D CAC-2013 is an active DisplayPort to VGA adapter that converts a digital DisplayPort signal to an analog VGA output. It lets you connect a DisplayPort-enabled desktop or laptop to VGA televisions, monitors or projectors without driver installation. The adapter draws power from the DisplayPort output and supports resolutions up to WUXGA 1920×1200 @ 60Hz, complying with VSIS timing standards. It is compatible with AMD, Nvidia and Intel graphics and has a compact, lightweight design with DisplayPort and VGA connectors for direct connection; use a suitable extension or adapter cable if required.

Advantages

This active DisplayPort to VGA adapter provides plug-and-play operation with no additional drivers needed and is powered by the DisplayPort source. It supports up to WUXGA (1920×1200 @ 60Hz) and adheres to VSIS timing standards for reliable analog output. The adapter is compatible with major GPU vendors (AMD, Nvidia, Intel) and is compact and lightweight for easy transport and use in different setups.

Suitable for

• Connecting a DisplayPort-equipped laptop or desktop to a VGA monitor
• Connecting to VGA projectors in meeting rooms or classrooms
• Driving legacy VGA televisions and displays from modern PCs

Key specifications

• Model: CLUB3D CAC-2013
• Type: Active DisplayPort (male) to VGA (female) adapter
• Max resolution: WUXGA 1920×1200 @ 60Hz
• Power: Powered by DisplayPort output (no external power required)
• Compatibility: AMD, Nvidia, Intel graphics
• Connectors: DisplayPort and VGA

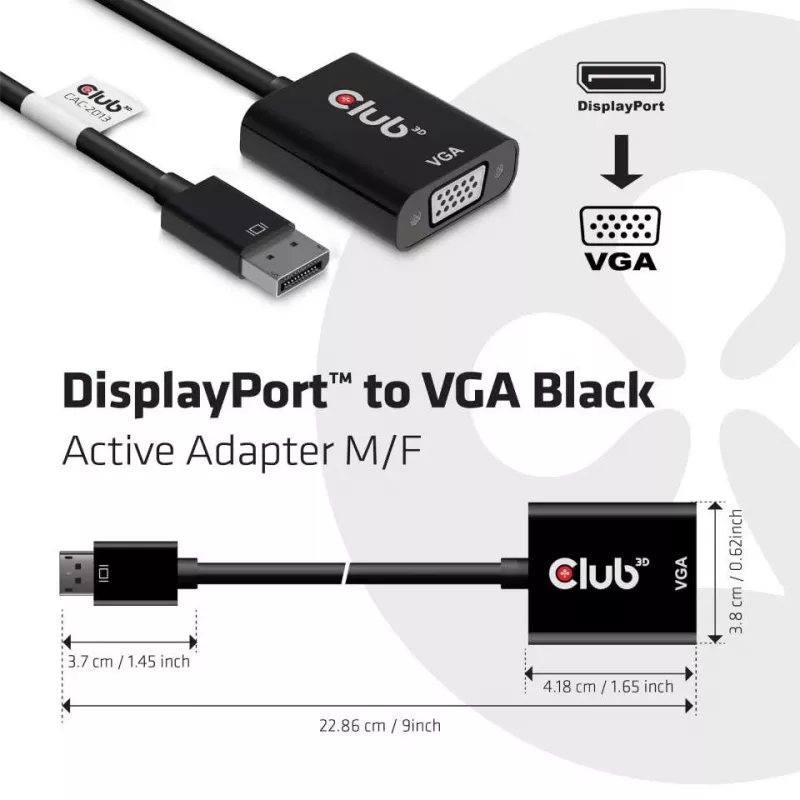

• Length: 0.228 m (cable length)
• Weight: 0.026 kg
• Color: Black
• Certifications: CE, FCC, RoHS

How to use

Connect the DisplayPort end of the adapter to the DisplayPort output on your desktop or laptop, then attach a VGA cable from the adapter's VGA output to your VGA display device. The adapter is plug-and-play and receives power from the DisplayPort port, so no driver installation or external power source is required. If your setup requires additional reach, use a compatible extension or adapter cable between the adapter and your devices.

Recommendations

For best results, use quality VGA cables and ensure the source device’s DisplayPort output is active. If you need a longer reach or a specific cable gender/length, choose a compatible extension cable; contact the manufacturer or support for assistance selecting the correct cable.
