CLUB3D DisplayPort™ 2.1 DP54™ VESA® Certified Cable 8K120Hz 3m/ 9.84ft

The Club 3D CAC-1093 DisplayPort 2.1 VESA Certified DP54 cable connects a DisplayPort‑enabled PC or laptop to an 8K or high-resolution monitor and other DisplayPort devices. It supports UHBR10 and UHBR13.5 signaling up to 54 Gbps, Display Stream Compression (DSC) 1.2, Forward Error Correction, and maintains full backward compatibility with previous DisplayPort versions.

Advantages

The cable is VESA certified for full DisplayPort 2.1 functionality and guarantees backward compatibility with DP 2.0/1.4/1.2. A flexible TPE jacket allows easy routing in tight spaces and endures repeated bending. Nickel‑plated, latching connectors with strain reliefs reduce accidental disconnection and are rated for more than 10,000 insertions. A braided aluminum shield improves EMI protection while the halogen‑free, RoHS‑compliant jacket provides durable, safe construction suitable for professional and gaming setups.

Key specifications

• Brand/model: Club 3D CAC-1093
• Standard: DisplayPort 2.1 (VESA Certified)
• Bandwidth: DP54™ — 54 Gbps (four UHBR13.5 lanes)
• Resolution/refresh: up to 8K120Hz with DSC
• Audio: up to 32‑channel audio
• Compatibility: backward compatible with DP 2.0/1.4/1.2

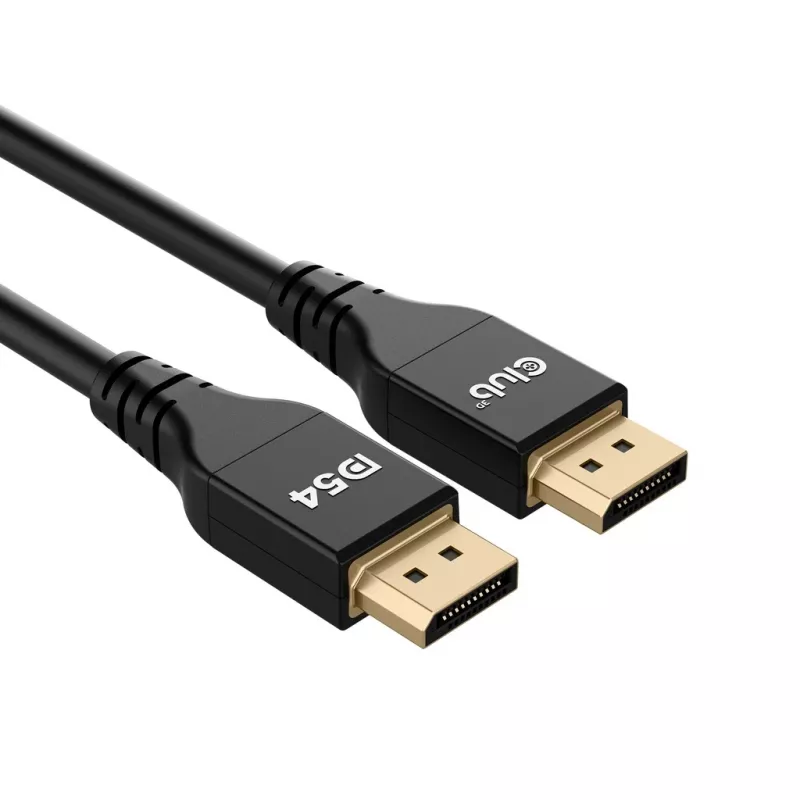

• Connector: latching DisplayPort connectors with strain relief

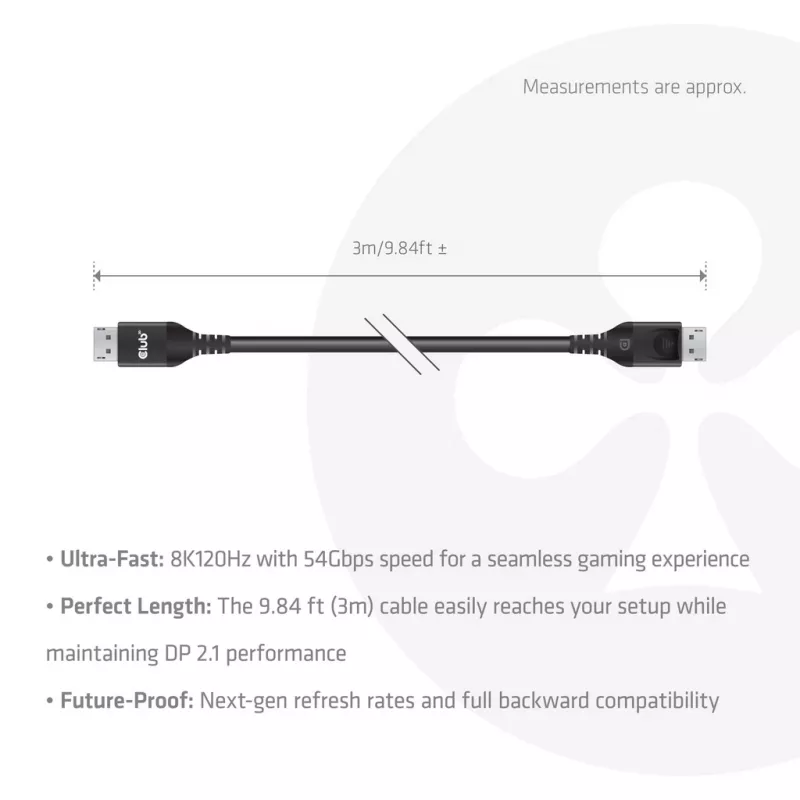

• Cable length and color: 3.0 m (9.84 ft), black
• Conductor/diameter: 26 AWG, 6.5 mm (0.26 in) O.D.
• Features: DSC 1.2, HDCP 2.2 support, Forward Error Correction

How to use

Connect one latching DisplayPort end to the DisplayPort output on your PC, GPU, or docking station and the other end to the DisplayPort input on your monitor or target device. Ensure connectors click into place to secure the connection. For highest resolutions and refresh rates, enable DP 2.1/UHBR settings in your GPU or monitor firmware and enable DSC if required. Avoid sharp bends beyond the cable’s specified tolerance and route the cable through cable management pathways to reduce strain.
