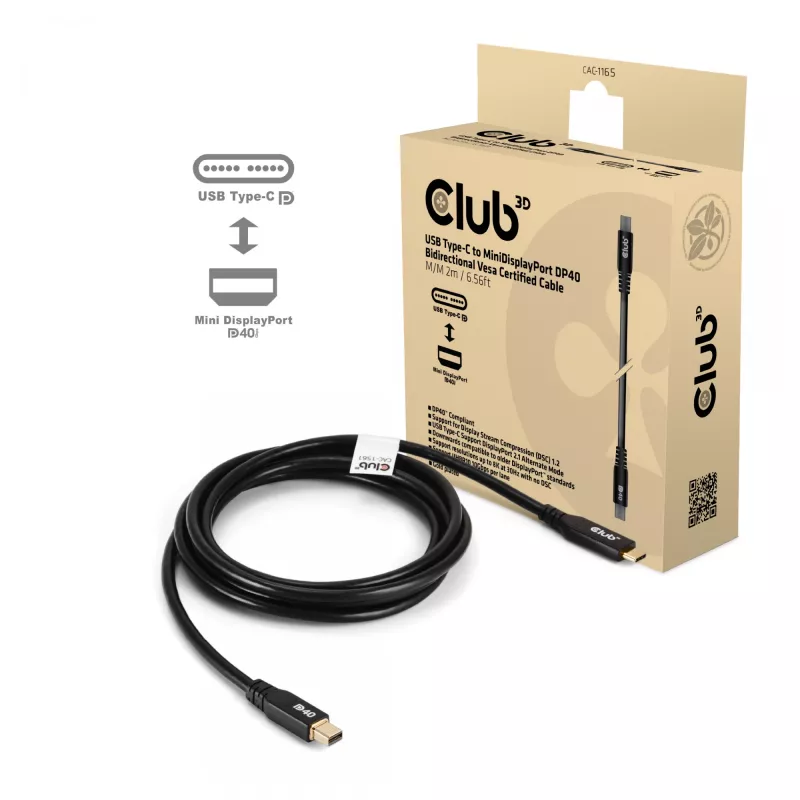

CLUB3D CAC-1561 DisplayPort cable 2 m Mini DisplayPort USB Type-C Black

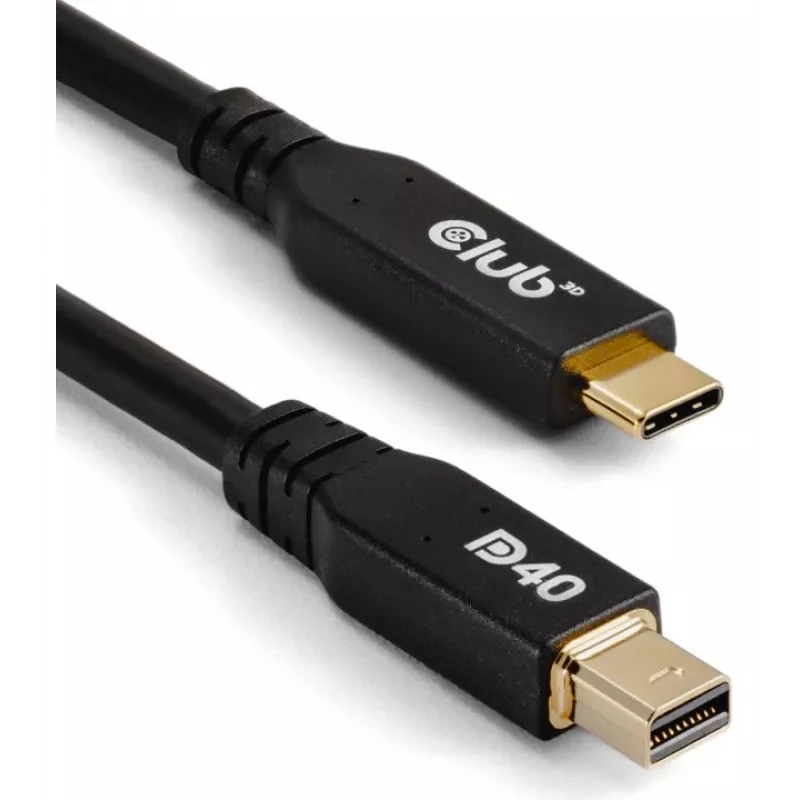

The Club 3D CAC-1561 is a 2 m USB Type-C to Mini DisplayPort 2.1 bi-directional cable designed to connect USB Type-C equipped PCs or laptops to Mini DisplayPort displays and devices. It supports DisplayPort 2.1 UHBR10 bandwidth up to 40 Gbps, Display Stream Compression (DSC) 1.2, Forward Error Correction and up to 32 inline audio channels. The cable has a soft UltraFlex jacket and a Mini DisplayPort connector with contact fingers engineered for high-speed signals.

Advantages

The cable provides high-bandwidth video and audio transmission enabling up to 4K at 240 Hz or 8K at 30 Hz depending on host and display capabilities. Bi-directional operation allows use from USB-C source to Mini DisplayPort sink or from Mini DisplayPort source to USB-C sink where the device supports the corresponding alternate modes. The UltraFlex jacket improves bend resistance while compact connector sizes keep installation tidy. The product is RoHS compliant and lightweight for easy routing.

Suitable for

• Connecting a USB Type-C laptop or PC to a Mini DisplayPort monitor
• Connecting Mini DisplayPort-equipped graphics cards to USB-C displays that accept DP Alt Mode
• High-refresh gaming setups requiring 4K240Hz or 8K30Hz support (subject to device capabilities)
• Professional displays and multimedia workstations requiring high bandwidth and multiple audio channels

Key specifications

• Length: 2 m
• Connector 1: Mini DisplayPort (male)
• Connector 2: USB Type-C (male)
• DisplayPort version: 2.1, UHBR10 up to 40 Gbps
• Supports DSC 1.2 and Forward Error Correction
• Inline audio channels: up to 32
• Product colour: Black
• Weight: 0.079 kg
• Manufacturer part number (MPN): CAC-1561
• EAN: 8719214473112

How to use

Connect the Mini DisplayPort end to the Mini DisplayPort output on the source device or display and insert the USB Type-C end into the corresponding USB-C port on the other device. Ensure both devices support the required DisplayPort alternate mode or output and that display settings (resolution and refresh rate) are configured on the host to match the monitor capabilities. Avoid forcing the connectors; align them correctly before insertion.

Recommendations

For optimal performance, use the cable with devices that explicitly support DisplayPort 2.1 or compatible DP Alt Mode over USB-C. Check host and display specifications to confirm supported resolutions and refresh rates. Route the cable without sharp bends and avoid tight cable wraps to preserve the UltraFlex jacket and signal integrity.
