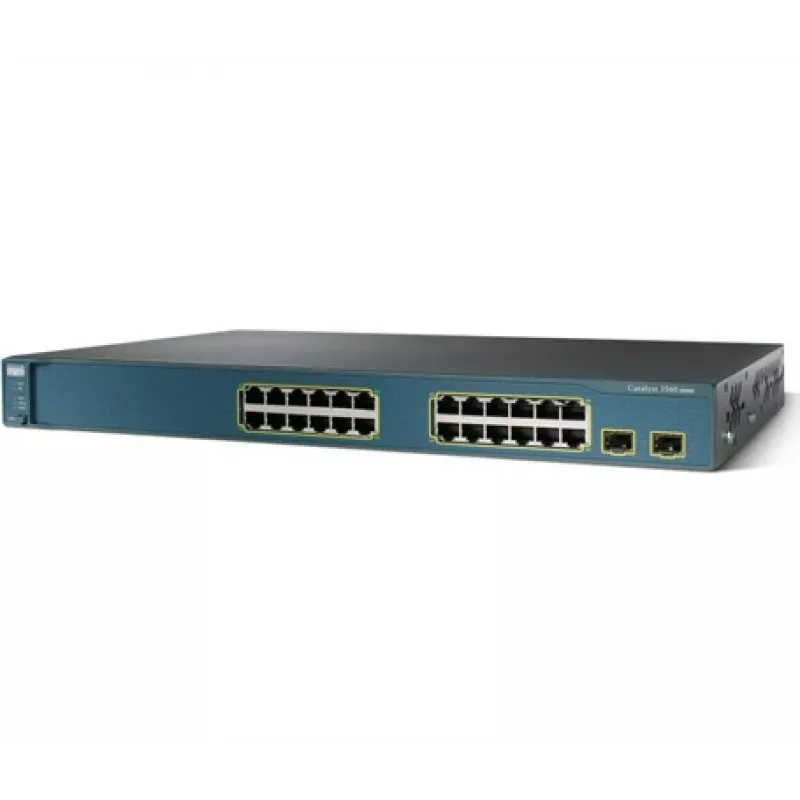

Cisco Catalyst 3560-24TS EMI Managed Switch - 24 Ports 10/100 + 2 SFP, Layer 3

The Cisco Catalyst 3560-24TS EMI is a high-performance managed switch designed for enterprise networks requiring advanced Layer 3 routing and robust security features. With 24 10/100Base-TX ports and 2 SFP Gigabit Ethernet uplinks, this rack-mountable 1U switch delivers reliable connectivity and scalability for demanding environments.

Advantages

Enhanced security with RADIUS, TACACS+, and SSHv2 authentication; advanced QoS for traffic prioritization; support for VLANs, STP, RSTP, MSTP, and ACLs; jumbo frame support up to 9018 bytes; and a switching capacity of 10 Gbps with 6.5 Mpps forwarding performance.

Suitable for

• Enterprise access layer deployments
• Small to medium business networks requiring Layer 3 routing
• Network environments needing high availability and security

Key specifications

• Device Type: Managed Switch
• Enclosure: Rack-mountable 1U
• Ports: 24 x 10/100Base-TX + 2 x SFP (Gigabit Ethernet)
• Switching Capacity: 10 Gbps
• Forwarding Performance: 6.5 Mpps
• Layer Support: Layer 3
• Routing Protocols: OSPF, BGP, EIGRP, RIP-1, RIP-2, Static IP routing
• MAC Address Table: 12K entries
• Jumbo Frame Support: Up to 9018 bytes
• RAM: 128 MB
• Flash Memory: 16 MB
• Management: SNMP 1, 2c, 3, Telnet, HTTP, HTTPS, SSH, CLI
• Authentication: RADIUS, TACACS+, SSHv2
• Features: VLAN, QoS, STP, RSTP, MSTP, ACL, DHCP snooping, LACP
• Power Supply: Internal, AC 120/230 V (50/60 Hz)
• MTBF: 200,000 hours

Recommendations

Ideal for network administrators seeking a reliable, feature-rich switch with advanced Layer 3 capabilities and strong security. Suitable for both access and distribution layers in enterprise networks.
