Chiller Alphacool Chiller 1000 Black 1400W 220V

The Alphacool ES Chiller 1000 ServerRack 5U is a compressor cooling system designed for server and workstation environments in a 5U form factor. It circulates and cools the coolant using an integrated pump and maintains the set temperature. The chiller includes G1/4" connections compatible with common water-cooling fittings and a built-in 2-liter reservoir.

Advantages

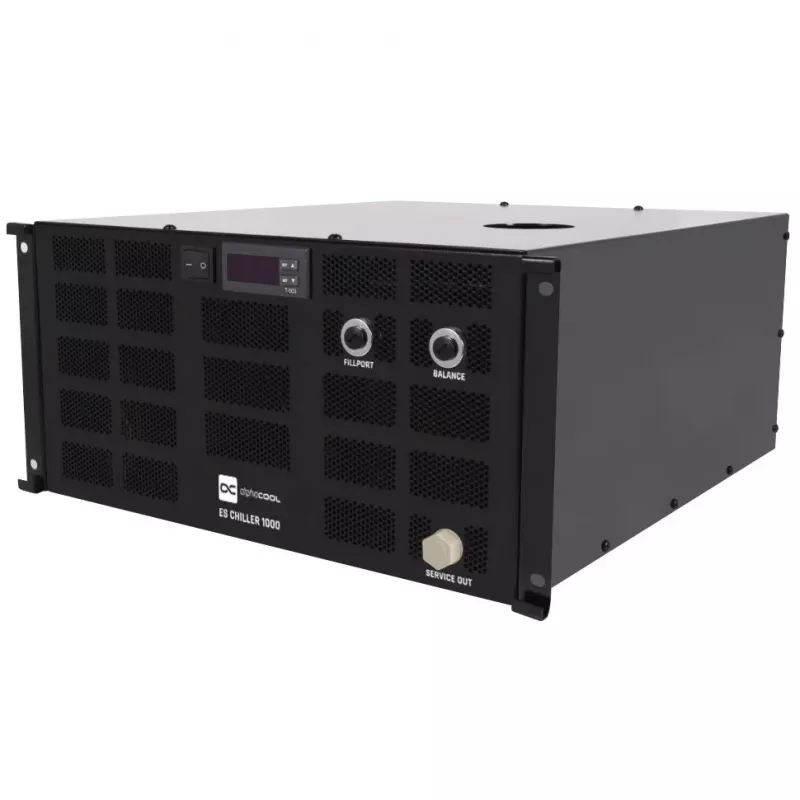

The unit provides a high cooling capacity (stated as up to 1000 watts in the source description) while integrating pump, reservoir and control in a single 5U chassis. A front display allows temperature control in 0.3°C increments and system configuration. Integrated features include overvoltage protection for the compressor and alarms for low flow or excessive temperature. G1/4" threaded ports enable straightforward connection to standard water-cooling loops.

Suitable for

• Rack-mounted servers and server rooms requiring dedicated liquid cooling
• High-performance workstations in 5U chassis environments
• Custom water-cooling loops for CPUs, GPUs and other heat-generating components

Key specifications

• Cooling principle: compressor chiller with integrated pump
• Maximum cooling capacity: up to 1000 W (as specified in source text)
• Reservoir capacity: 2 liters

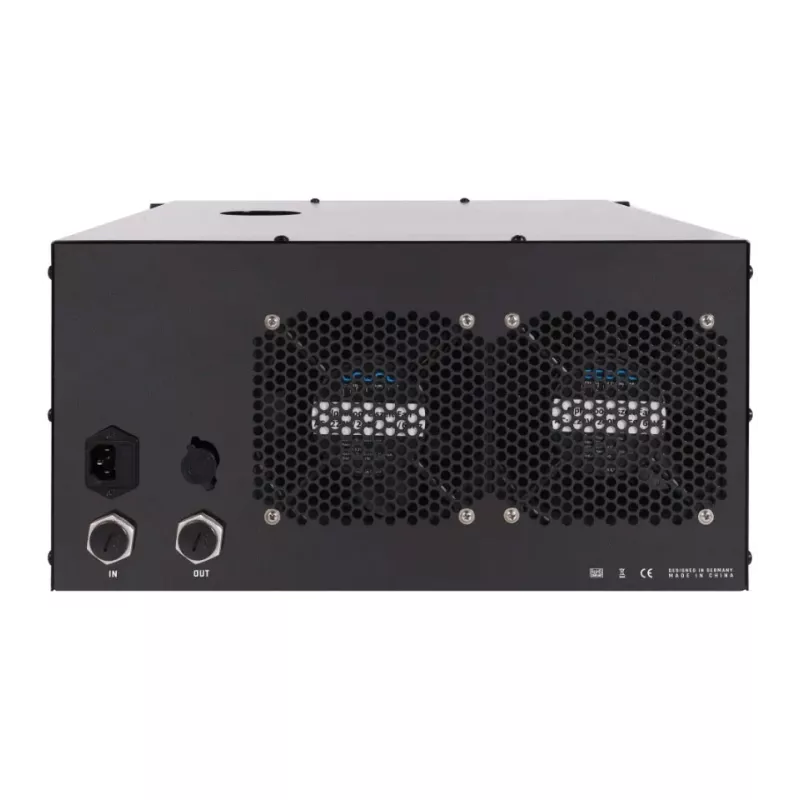

• Connections: G1/4" threaded ports (compatible with standard water-cooling fittings)
• Temperature control resolution: 0.3°C increments via display
• Integrated pump delivery head: up to 10 m (as stated in source text)
• Protection and alarms: compressor overvoltage protection; alarms for low flow and high temperature
• Form factor: 5U rack-mount

How to use

Install the chiller in a compatible 5U rack space and connect the G1/4" fittings to your existing water-cooling loop. Fill the 2-liter reservoir with a suitable coolant and use the built-in pump to circulate fluid through the system. Configure the desired temperature and other settings via the front display, which allows adjustments in 0.3°C steps. Monitor the display for alarm notifications about flow or temperature issues and follow standard safety procedures when working with pressurized coolant loops.

Recommendations

Use compatible water-cooling fittings for G1/4" threads, maintain coolant quality, and ensure adequate ventilation in the rack. Heed alarms for low flow or high temperature and verify electrical connections to benefit from the compressor overvoltage protection.
