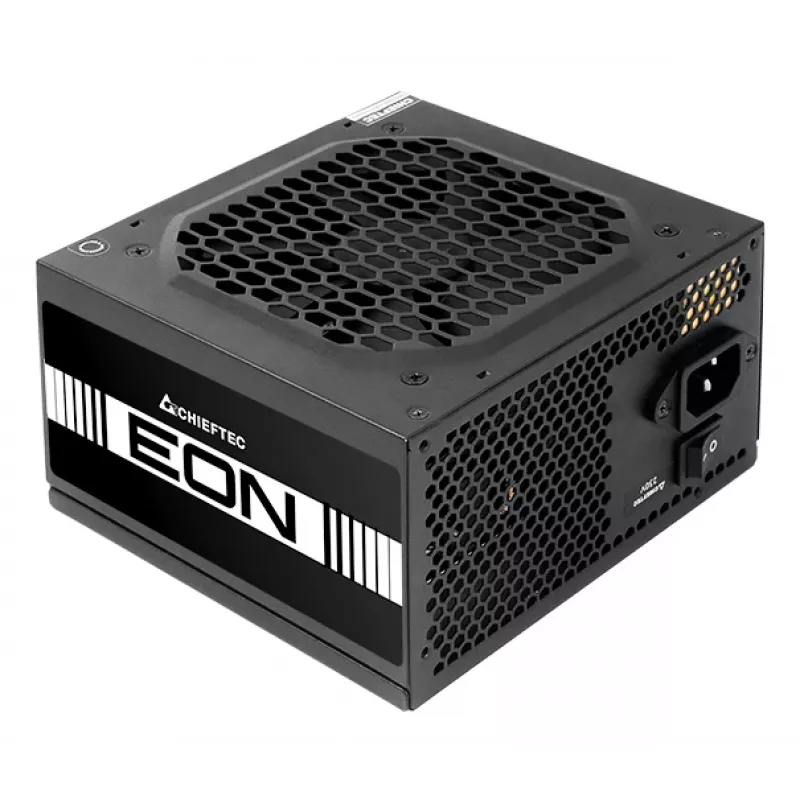

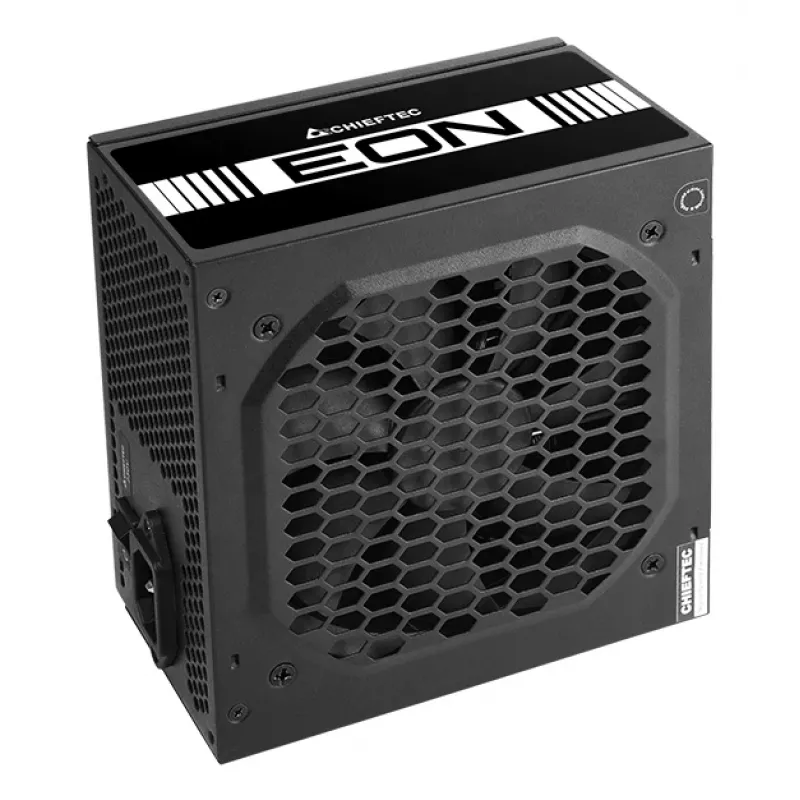

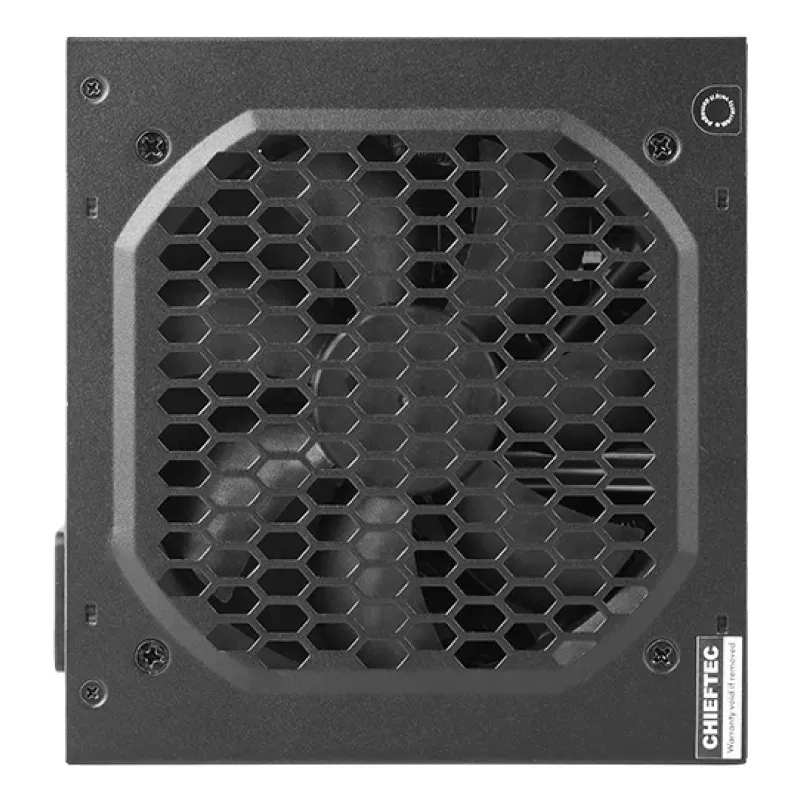

Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black

Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
R1,036
The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power wit... Read More
Stock 17 Code 349232 Brand CHIEFTEC Model ZPU-500S Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.

The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.

Chieftec EON ZPU-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS

Key Highlights
  • 500 W 200 - 240 V 50 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC/Server ATX 80 PLUS
  • Active 12 cm
  • Black
Specifications
80 PLUS certification
80 PLUS
AC input frequency
50 Hz
AC input voltage
200 - 240 V
ATX power connector (20+4 pin)
Yes
ATX version
2.3
Cabling type
Non-Modular
Combined power (+12V)
444 W
Combined power (+3.3V)
100 W
Combined power (+5V)
100 W
Combined power (+5Vsb)
12.5 W
Combined power (-12V)
4.8 W
Compliance certificates
CB, CE, EAC, RoHS
Cooling type
Active
CPU power connector (4+4 pin)
Yes
Depth
140 mm
EPS power connector (4+4 pin)
Yes
Fan diameter
12 cm
Height
86 mm
Input current
3.5 A
Max output current (+12V1)
37 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.4 A
Motherboard power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
On/off switch
Yes
Package type
Box
Package weight
1.45 kg
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power cable length
150,450 mm
Peripheral (Molex) power connectors (4-pin)
2
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Short circuit, Surge and inrush, Surge protection
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC/Server
SATA power cable length
450,600,750 mm
Supported motherboard form factors
ATX
Sustainability certificates
ErP
Total power
500 W
Warranty period
2 year(s)
Weight
1.2 kg
Width
150 mm

Leaflet

Open Leaflet
Price history over the last 6 months
Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Current
R1,036
Lowest
R866
Highest
R1,140
Change 24H
+R164   +19%
Week
+R86   +9%
Month
+R83   +9%
