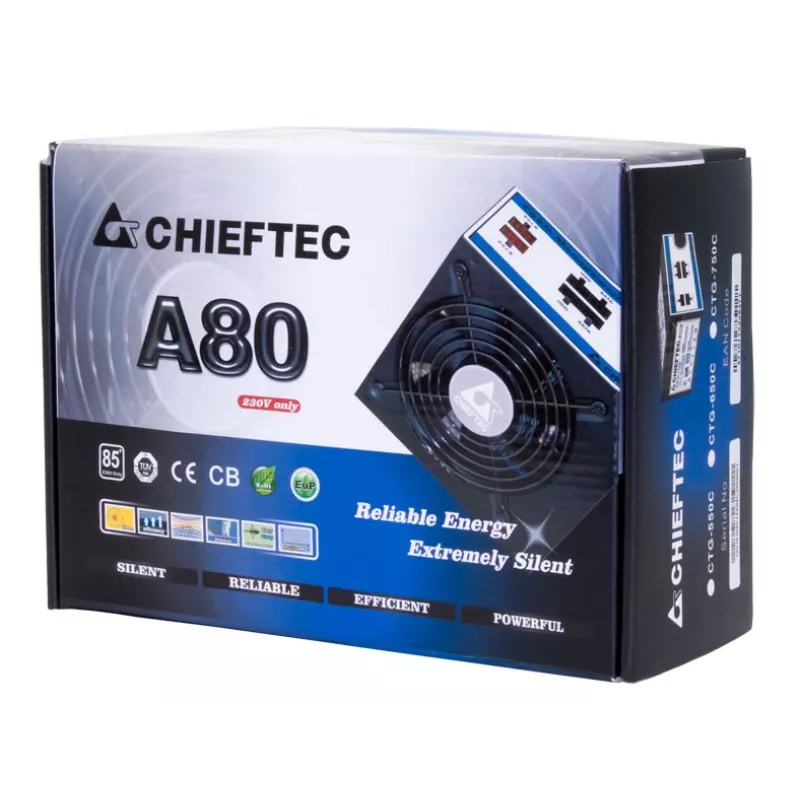

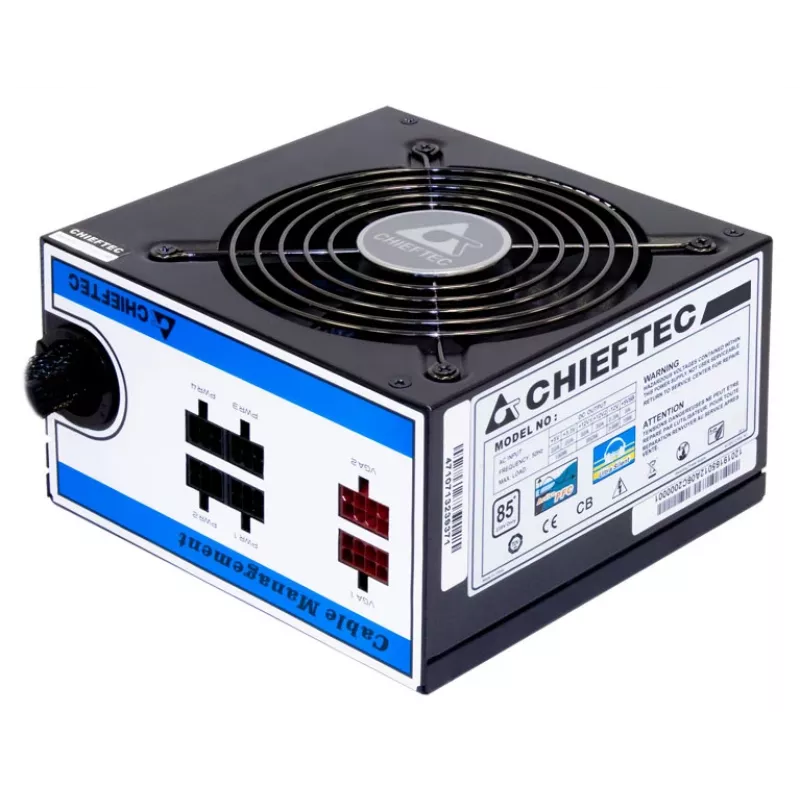

Chieftec CTG-550C power supply unit 550 W 20+4 pin ATX ATX Black

Chieftec CTG-550C power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec CTG-550C power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec CTG-550C power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec CTG-550C power supply unit 550 W 20+4 pin ATX ATX Black
R1,198
this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency. Chieftec CTG-550C. Total power: 550 W, AC input voltage: 230 V, AC input freque... Read More
Stock 2 Code 117828 Brand CHIEFTEC Model CTG-550C Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.

Chieftec CTG-550C. Total power: 550 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, FCC

Key Highlights
  • 550 W 230 V 50 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS
  • Active 12 cm
  • Black
Specifications
80 PLUS certification
80 PLUS
AC input frequency
50 Hz
AC input voltage
230 V
ATX version
2.3
Cabling type
Semi-Modular
Certification
CE, CB, FCC
Combined power (+12V)
456 W
Combined power (+3.3V)
130 W
Combined power (+5V)
130 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
Compliance certificates
RoHS
Cooling type
Active
CPU P4 connector (4-pin)
1
Depth
140 mm
Efficiency
85%
EPS power connector (8-pin)
Yes
Fan diameter
12 cm
Fan location
Top
Floppy drive power connector
2
Harmonized System (HS) code
84733020
Height
87 mm
Input current
6 A
Max output current (+12V1)
25 A
Max output current (+12V2)
25 A
Max output current (+3.3V)
25 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Mean time between failures (MTBF)
100000 h
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
6
Package type
Box
Parallel processing technology support
2-Way CrossFireX, 2-Way SLI
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
4
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
Total power
550 W
Width
150 mm
