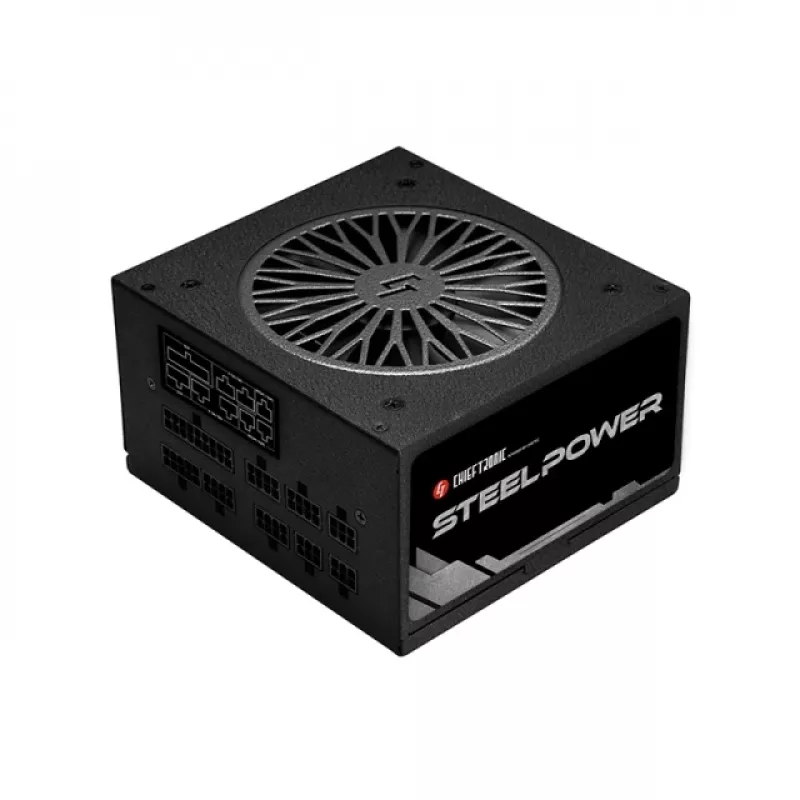

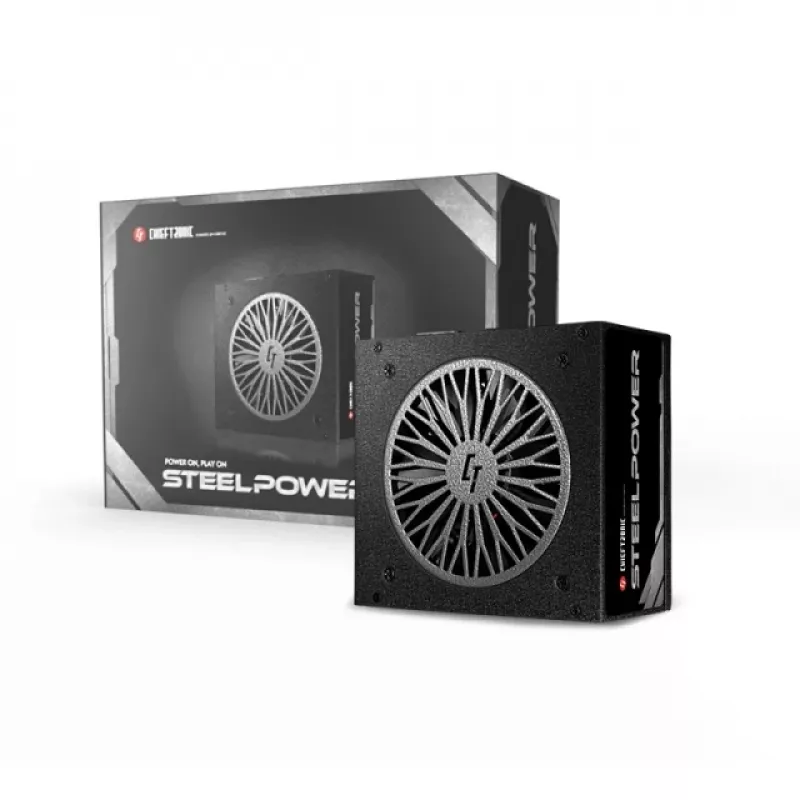

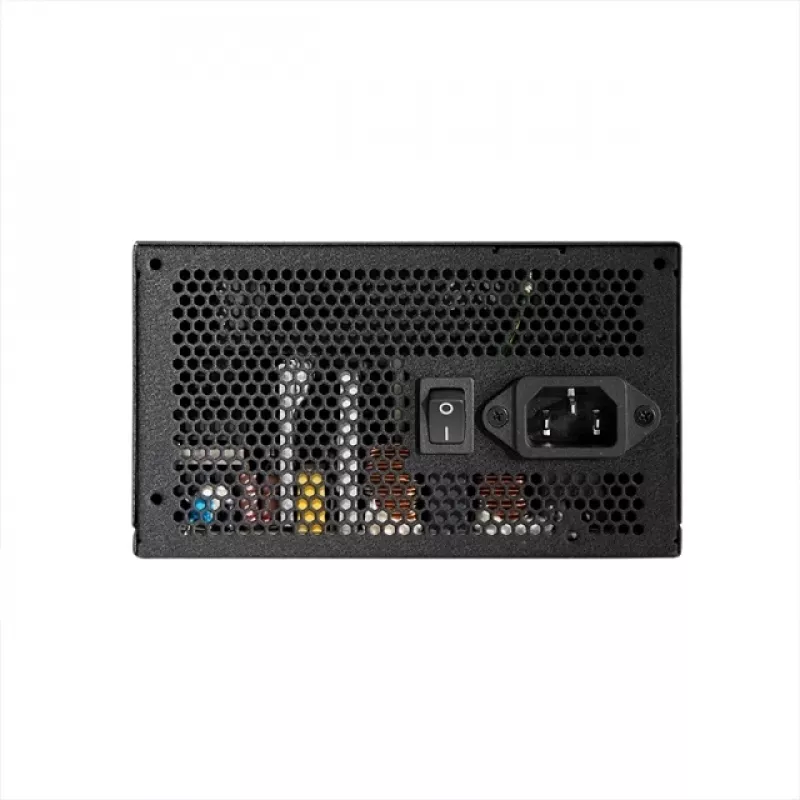

Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black

Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
R1,551
The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters wi... Read More
Stock 8 Code 360999 Brand CHIEFTEC Model BDK-550FC Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.

Chieftec BDK-550FC. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS, Certification: EAC FCC CB

Key Highlights
  • 80 PLUS® Bronze certified effiiciency

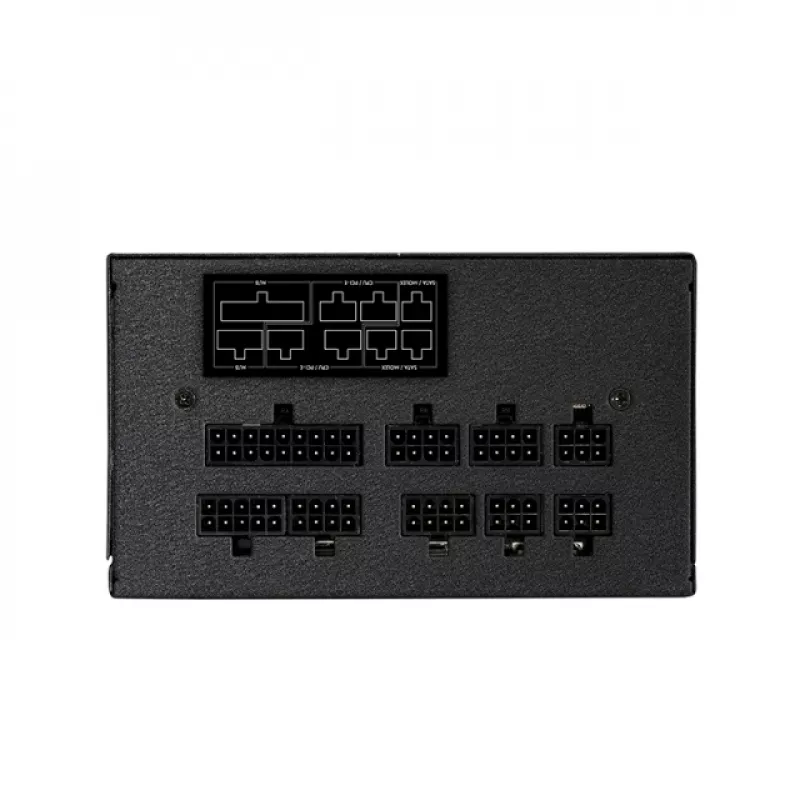

  • Fully modular cable management
  • Half-bridge LLC converter with DC-to-DC technology
  • Premium Japanese capacitors

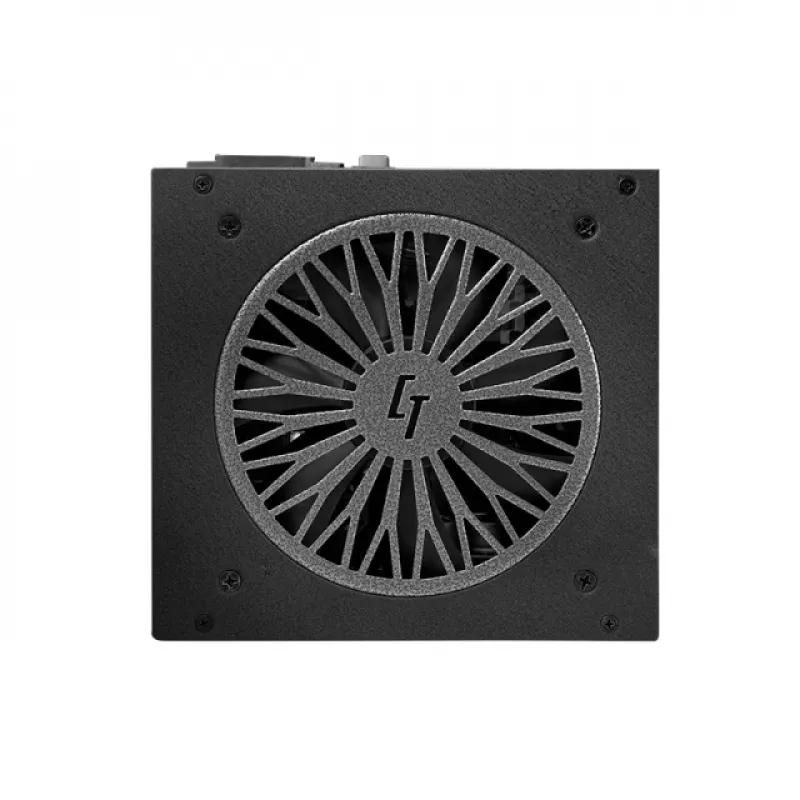

  • FDB 12cm fan
  • 550 W 100 - 240 V 47 - 63 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC/Server ATX 80 PLUS Bronze
  • Active 12 cm
  • Black
Specifications
80 PLUS certification
80 PLUS Bronze
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
ATX version
2.3
Bearing technology
FDB
Cabling type
Fully-Modular
Certification
EAC FCC CB
Combined power (+12V)
546 W
Combined power (+3.3V)
100 W
Combined power (+5V)
100 W
Combined power (+5Vsb)
12.5 W
Combined power (-12V)
3.6 W
Compliance certificates
CE, RoHS
Cooling type
Active
Depth
140 mm
EPS power connector (4+4 pin)
Yes
Fan diameter
12 cm
Floppy drive power connector
1
Harmonized System (HS) code
84733020
Height
86 mm
Input current
8 A
Max output current (+12V)
45.5 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Motherboard power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
6
Package weight
2.17 kg
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
150,500 mm
Peripheral (Molex) power connectors (4-pin)
3
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC/Server
SATA power cable length
150,500 mm
Sustainability certificates
ErP
Sustainability compliance
Yes
Total power
550 W
Weight
1.62 kg
Width
150 mm
