Ceiling TV mount MACLEAN MC-112B, max load 60 kg, adjustable tilt and rotation

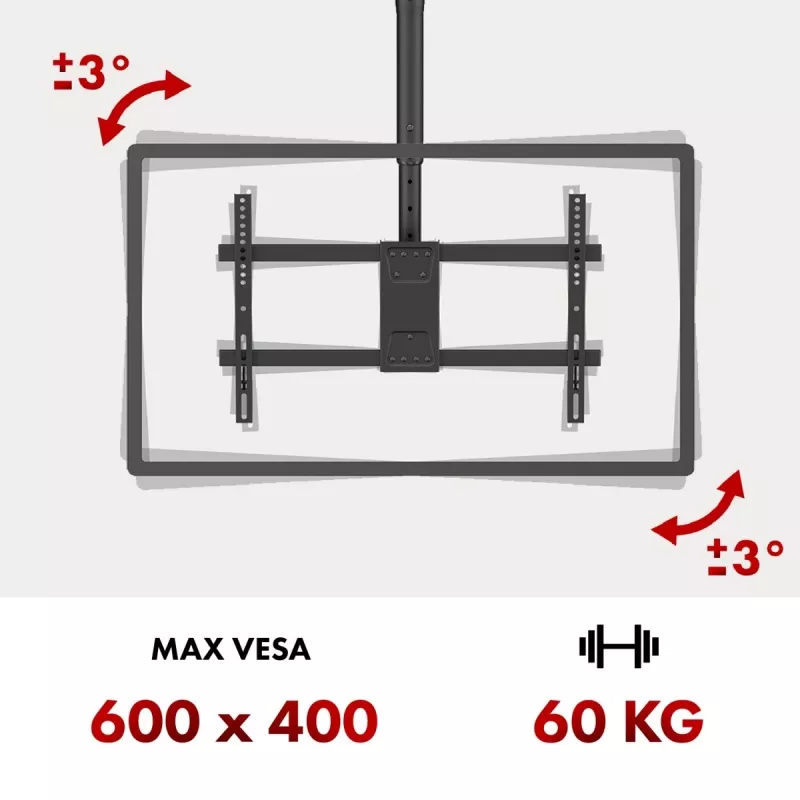

Description: Ceiling mount for 43-86'' 60kg VESA TVs Maclean ceiling mount for TV, max load 60kg, 43-86, max VESA 600x400, MC-112 B DURABLE TELEVISION SUFFIT HOLDER - THE IDEAL SOLUTION FOR MODERN INTERIORS The sturdy Maclean MC-112 TV ceiling mount is designed for maximum functionality and safety. With a load capacity of up to 60 kg, it will easily hold TVs from 43 to 86 inches, meeting the expectations of even the most demanding users. The mount supports the VESA standard up to 600x400 mm, making it a universal solution compatible with most models available on the market - both from well-known brands (Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi) and less popular manufacturers. FULL FLEXIBILITY OF ADJUSTMENT - COMFORTABLE WATCHING FROM ANYWHERE The mount offers a wide range of adjustment that allows you to customize the position of your screen exactly to your needs. The tilt angle can be adjusted up to 25° down, and the 180° swivel capability ensures that you can comfortably position your TV in any direction. What's more, the mount allows you to level the screen within 3°, which is especially useful for minor mounting imperfections. In addition, the angle adjustment at the ceiling up to 60° and the ability to adjust the height provide maximum mounting flexibility. | Usage: TV | Type: Ceiling | Screen size (min): 43 | Screen size (max): 86 | VESA: 400 x 200 | VESA: 600 x 400 | VESA: 200 x 200 | VESA: 300 x 200 | VESA: 300 x 300 | VESA: 400 x 300 | VESA: 400 x 400 | Load (max): 60 | Vertical adjustment: -25 | Horizontal adjustment: 180 | Range adjustment: Yes | Range adjustment: No | Range (min): 485 | Range (max): 925 | Corner mount: No | Stuff: Steel | Accessories included: Ceiling bracket for TV Maclean MC-112 B Mounting accessories Screws for fastening the TV (M6x14, M8x16, M6x30, M8x35) Installation manual Manufacturer's packaging | Color: Black | Dimensions: Minimum/Maximum horizontal spacing: 200/600 mm Minimum/Maximum vertical spacing: 100/400 mm | Other features: Manufacturer: Maclean - Model: MC-112 B Maximum load: 60 kg Tilt adjustment: 0° to -25° Rotation adjustment: 180° TV height adjustment: 485-925 mm Minimum/Maximum horizontal spacing: 200/600 mm Minimum/Maximum vertical spacing: 100/400 mm Possibility to level the TV after mounting +3/-3° Cable masking system: yes Material of construction: steel (powder coated) Color: black - VESA: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400 mm Designed for 43 to 86 inchTV Comes with a set of mounting screws for the ceiling and for screwing the TV on

How to use

Choose a suitable ceiling location able to support the combined weight of the mount and screen. Assemble the mount components following the included instructions, attach the bracket to the display using the matching VESA holes, and secure the ceiling plate to structural framing or anchors rated for the load. Use the adjustment screws to set tilt and rotation, then tighten all fasteners and route cables along the column or through designated channels for a tidy installation.

Recommendations

Verify that the ceiling structure and fixing hardware can safely carry the total load. For best results, perform a test alignment before final tightening and use appropriate corrosion-resistant fasteners in humid or outdoor-exposed environments. If in doubt about structural integrity or for installations in public venues, consult a qualified installer.
