Ceiling light Steinel DL Vario Quattro PRO S, round LED fixed 14 W, 310×69 mm, white, motion sensor

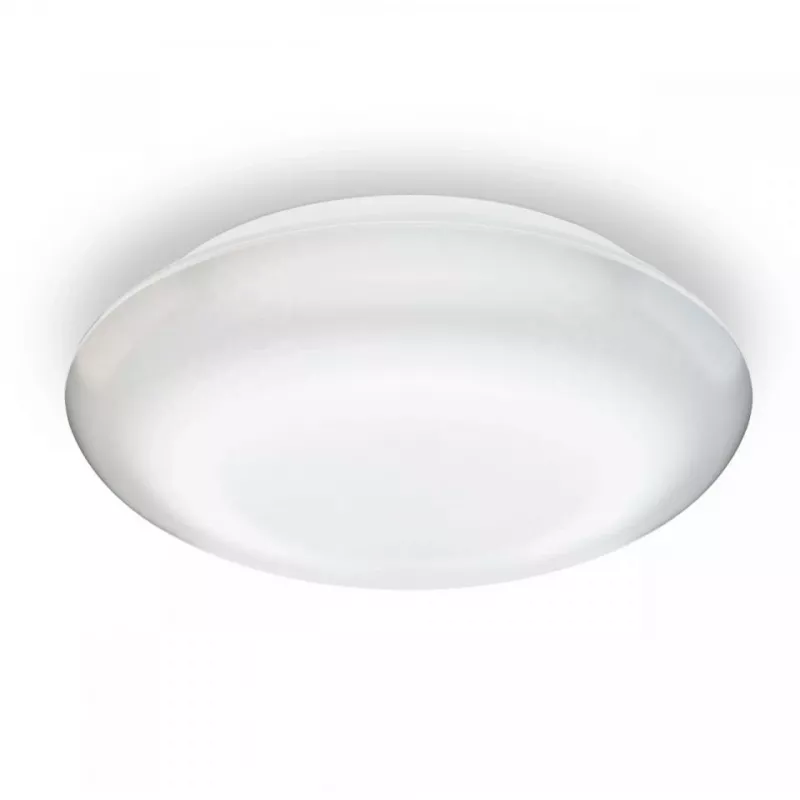

The Steinel DL Vario Quattro PRO S is a round ceiling LED luminaire with an integrated 14 W non-replaceable LED module and built-in motion detection. With a 310 mm diameter and 69 mm depth, the white fixture delivers 1430 lm and is suitable for mounting up to 6 m high. It operates on 220–240 V AC (50/60 Hz) and is available in neutral white (4000 K) or warm white (3000 K). The diffuser integrates four infrared sensor lenses, providing discreet, precise presence detection.

Advantages

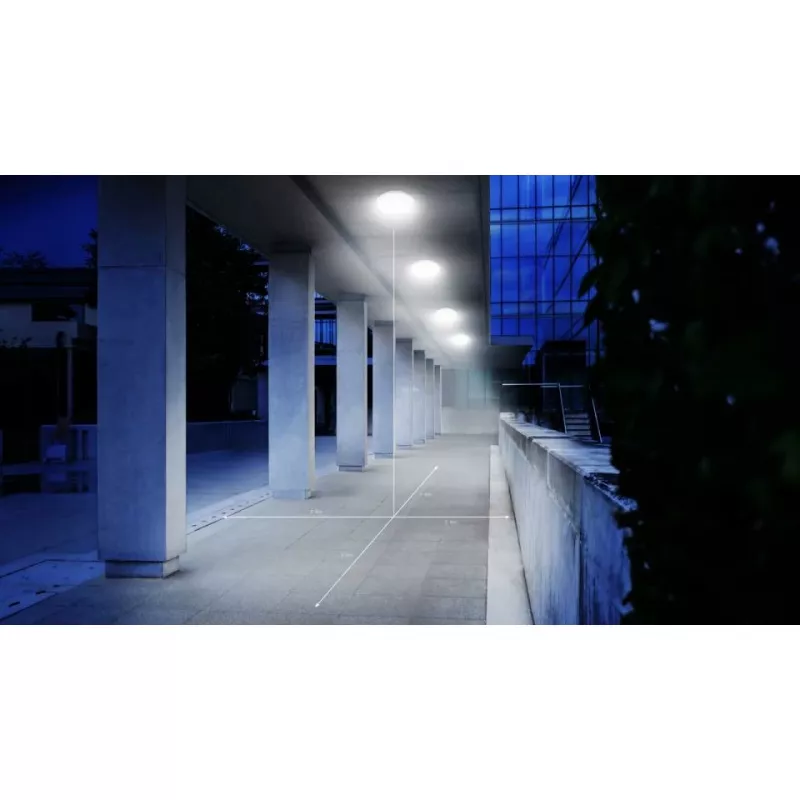

Four mechanically adjustable infrared sensors provide 360° detection with an adjustable range from 2 to 8 m, allowing precise definition of the detection zone. The sensor lenses are integrated into the diffuser to preserve a clean design. The luminaire offers a basic light level function (10%) at twilight and can be networked by cable with up to 10 units. Energy-efficient output yields 1430 lm at 14 W, reducing running time compared with continuously lit conventional LED luminaires.

Suitable for

• Corridors and hallways

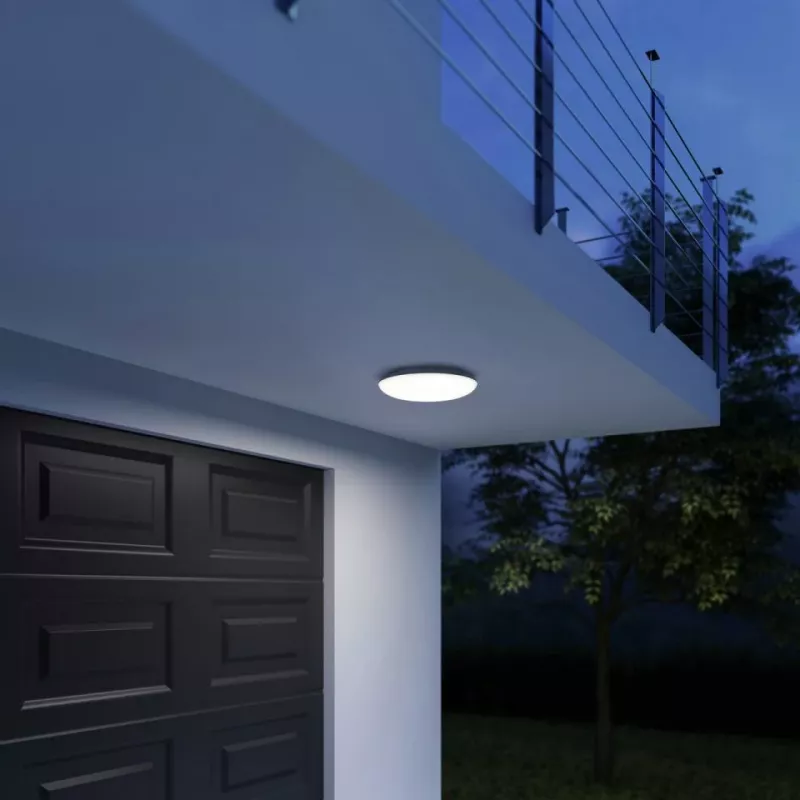

• Entrances, porches and carports
• Stairwells and landings
• Kitchens and utility rooms

Key specifications

• Light source: integrated LED, 14 W (non-replaceable)
• Luminous flux: 1430 lm
• Colour temperature: 4000 K (neutral white) or 3000 K (warm white)
• Detection range: 2–8 m (mechanically adjustable)
• Detection coverage: 360° (four adjustable infrared sensors)
• Mounting height: up to 6 m
• Supply voltage: 220–240 V AC, 50/60 Hz
• Dimensions: Ø 310 × 69 mm
• Operating temperature: -20 to 35 °C
• Networkable: cable connection for up to 10 luminaires

How to use

Install the luminaire on a suitable ceiling using the included fixing points and connect to the 220–240 V mains supply following local electrical regulations. Adjust the four infrared sensors mechanically to set the desired detection angles and range (2–8 m) for the local situation. Select the required colour temperature (3000 K or 4000 K) if applicable. Use the basic light level (10%) setting for low-level illumination at dusk or leave the motion detection to switch the light on only when movement is detected.

Recommendations

For precise detection, perform sensor adjustment after installation and test coverage at night or in low light. When chaining multiple luminaires, ensure correct cable routing and observe the limit of up to 10 networked units.
