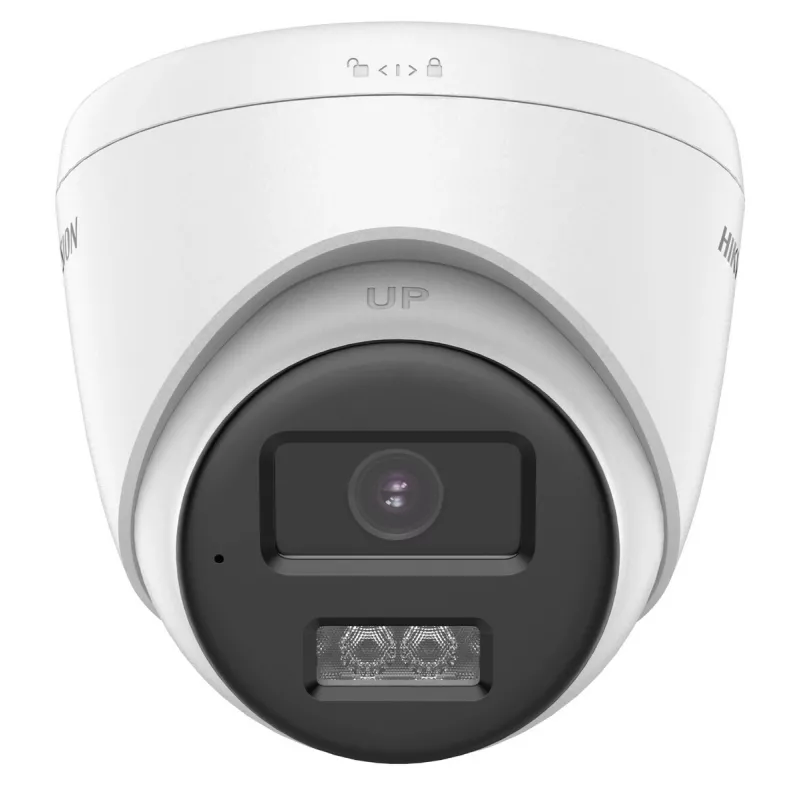

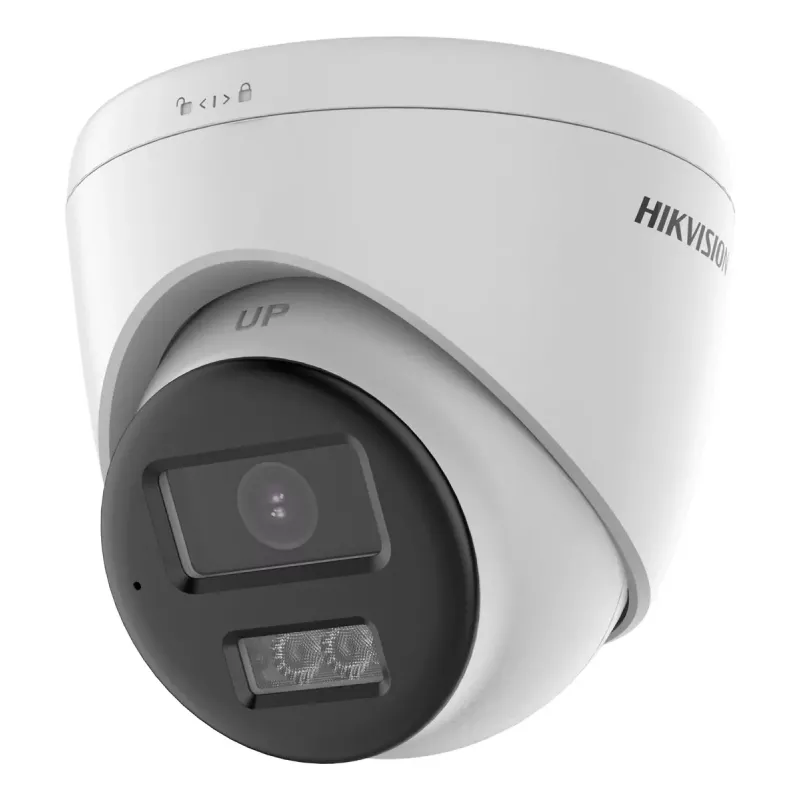

CCTV camera Hikvision Turbo HD Value Series DS-2CE78U0T-LTS 4K turret 2.8 mm, 113°×62°, 360° rotation, wired, indoor/outdoor

Hikvision Turbo HD Value Series DS-2CE78U0T-LTS is a 4K turret-style CCTV camera designed for wired video surveillance in both indoor and outdoor environments. The camera uses a CMOS sensor to capture video at up to 3840 × 2160 resolution and 30 fps through a 2.8 mm fixed lens that provides a wide horizontal field of view. The compact white turret housing supports ceiling, wall or pole mounting and offers 360° rotation for flexible aiming. Built-in two-way audio over coaxial cable enables real-time voice communication while Smart-Hybrid Light combines IR and white-light illumination for improved night imaging.

Advantages

The camera delivers high-resolution 4K imaging with a wide viewing angle to cover broad areas with a single device. Wired connectivity ensures a stable video feed at up to 30 fps, and the turret form factor with 360° rotation simplifies installation and orientation. Integrated two-way audio (microphone and speaker) and audio over coax add communication capability without extra cabling. IP67-rated ingress protection and a compact, 375 g white housing make the unit suitable for outdoor use while resisting dust and water.

Suitable for

• Monitoring retail shops, entrances and lobbies
• Perimeter surveillance for small commercial properties
• Indoor common areas such as corridors and stairwells
• Outdoor coverage of driveways, parking areas and building facades

Key specifications

• Image sensor: CMOS, resolution 3840 × 2160 (4K)
• Frame rate: up to 30 frames per second
• Fixed lens: 2.8 mm providing approx. 113° horizontal × 62° vertical field of view
• Night illumination: Smart-Hybrid Light combining infrared and white-light up to 40 m
• Audio: built-in microphone and speaker with audio over coaxial support for two-way communication
• Connectivity: wired video and power (coaxial/analog HD transmission)
• Mounting options: ceiling, wall or pole mount with 360° rotation for positioning
• Ingress protection: IP67 (dust and water resistant)
• Color and weight: white housing, approx. 0.375 kg

How to use

Mount the camera on a suitable surface (ceiling, wall or pole) using the supplied mounting hardware and ensure the housing is oriented using the turret’s rotational adjustment to cover the intended area. Connect video and power according to the recorder or power supply instructions, and run the coaxial cable to enable video and audio transmission. Configure the connected DVR or monitoring software to set resolution, frame rate and night-illumination preferences. Test two-way audio after installation to confirm microphone and speaker operation.

Recommendations

Position the camera to take advantage of the wide 2.8 mm field of view for general area coverage; use the 360° rotation to eliminate blind spots. For reliable night performance, select appropriate Smart-Hybrid Light settings in the recorder to balance white-light and IR illumination. Ensure cable connections are weatherproofed for outdoor installations and follow IP67 guidance to maintain long-term durability.
