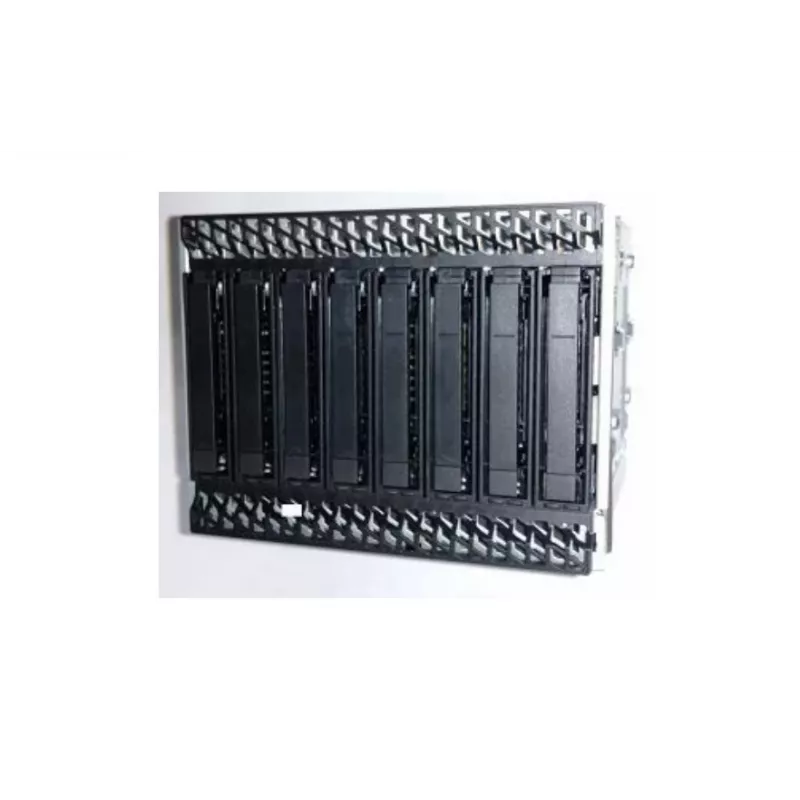

Carrier panel Intel AUP8X25S3DPDK

The Intel AUP8X25S3DPDK carrier panel is a stainless-steel 2.5" dual-port SAS hot-swap drive bay kit designed for P4000 server chassis. It serves as a replacement or spare carrier panel for mounting 2.5-inch HDDs/SSDs in compatible server systems and includes the necessary serial cable. Classified under ECCN 5A992C, the panel is intended for reliable, long-lasting operation in server environments.

Advantages

Constructed from durable stainless steel for corrosion resistance and mechanical stability, the carrier panel supports dual-port SAS drives and hot-swap operation. The kit includes a serial cable for connectivity and is compactly designed to fit P4000 server chassis. Its OEM-compatible form factor simplifies replacement and maintenance tasks.

Suitable for

• Replacing or adding 2.5" drive bays in P4000 server chassis
• Hot-swap deployment of dual-port SAS HDDs or SSDs
• Server maintenance, drive replacement, and spare part inventory

Key specifications

• Brand: INTEL
• Model / MPN: AUP8X25S3DPDK
• Form factor: 2.5" carrier panel
• Material: Stainless steel
• Interface: Dual-port SAS
• Includes: Serial cable
• Compliance: ECCN 5A992C
• Compatible chassis: P4000 server series

How to use

Power down the server or follow hot-swap procedures recommended by the server manufacturer. Install the 2.5" drive into the Intel carrier panel, secure it per the panel’s mounting points, connect the included serial cable to the server backplane or SAS connector, and insert the carrier panel into the P4000 drive bay until it locks. If performing a hot-swap, ensure the operating system and RAID controller settings are prepared for drive removal and insertion.

Recommendations

Verify compatibility with your specific P4000 chassis model and the server’s backplane cabling before installation. Handle drives and the carrier panel in an ESD-safe environment and follow the server vendor’s maintenance procedures to avoid data loss.
