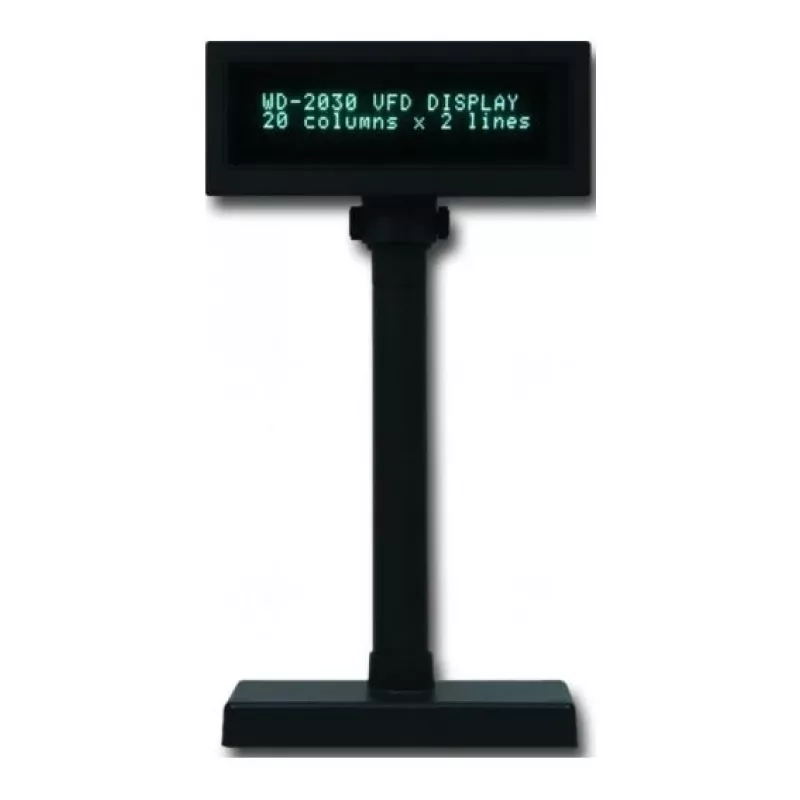

Capture WD-2312000008 customer display RS-232

The Capture WD-2312000008 is a compact customer display for point-of-sale counters, featuring a VFD line display and RS-232 interface for reliable communication. Designed for clear visibility and flexible placement, the unit includes a base with ports for Host/PC (DB21), VFD display (RJ45), printer (DB9) and a power adapter. The package contains a hard-wired 0.5 m RJ45 cable and a 1.5 m RS232 cable to connect the display to POS equipment.

Advantages

The WD-2312000008 offers a small footprint and adjustable viewing angle to fit on most counters while keeping customer information legible. It includes necessary connectivity and power accessories in the box, reducing setup time and ensuring compatibility with common POS hardware through DB21, DB9, RJ45 and RS-232 connections.

Suitable for

• Retail point-of-sale counters
• Hospitality checkouts and front desks
• Small shops and kiosks requiring customer-facing displays

Key specifications

• Model: Capture WD-2312000008
• Display type: VFD line display
• Interface: RS-232 (via DB21/DB9 and RJ45 cable)
• Weight: 0.2 kg
• Package dimensions (W×D×H): 387 × 281 × 97 mm
• Power: 12V power adapter (included)

How to use

Mount the VFD display on its base and connect the hard-wired 0.5 m RJ45 cable between the display and base. Use the provided 1.5 m RS232 cable to connect the base (DB21) to the host PC or POS system (DB9/DB21 as required). Plug the included 12V power adapter into the base and a suitable mains outlet. Power on the POS system and configure the terminal software to use the RS-232 port and appropriate baud rate for the VFD display.

Recommendations

Place the display so the screen is clearly visible to customers and adjust the viewing angle for minimal glare. Use the supplied cables and interfaces to maintain reliable communication; if alternative cabling is required, ensure compatible DB21/DB9 or RJ45 wiring and correct RS-232 settings.
