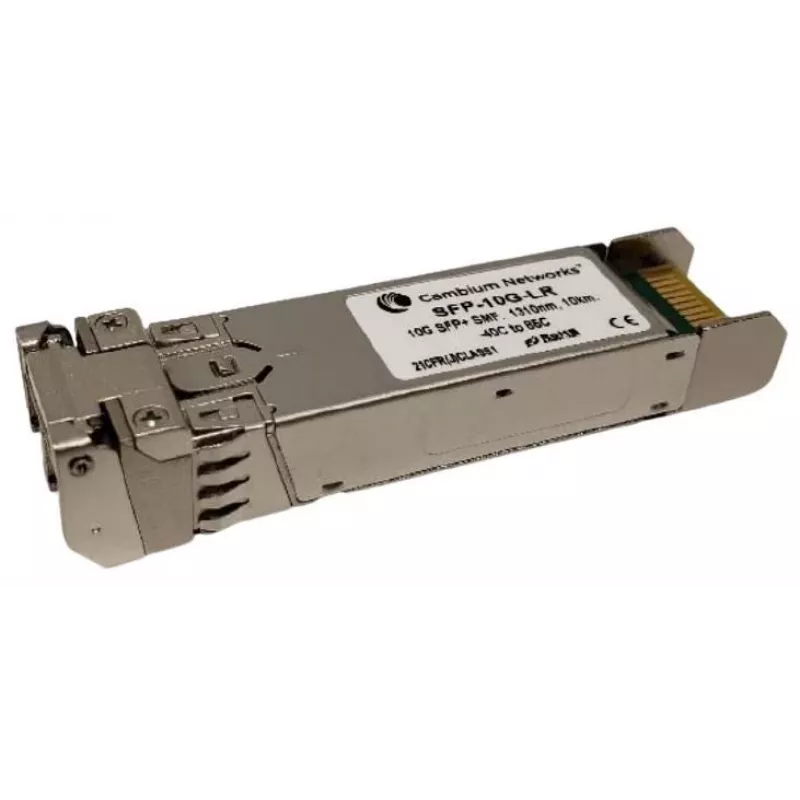

Cambium Networks 10G SFP+ SMF LR Transceiver

For long-haul single-mode links where reliability is non-negotiable, this SFP+ module from Cambium Networks delivers true 10GBASE-LR performance. Its 1310 nm DFB laser and PIN photodiode ensure stable 10 Gbps throughput up to 10 km, while engineering for consistent thermal behavior and low power draw sets it apart from generic MSA clones. A dependable choice for enterprise and ISP backbones.

Highlights

• 10 Gigabit Ethernet over single-mode fiber (SMF)
• LC duplex connector with digital diagnostics monitoring (DDM/DOM)
• Hot-swappable SFP+ form factor, compliant with SFF-8431 and SFF-8432
• 1310 nm wavelength, up to 10 km reach on 9/125 µm fiber
• Low power consumption under 1 W, wide operating temperature range

In daily use

Deploy this transceiver in D-Link DGS/DES series switches or any MSA-compliant device. Its DFB laser and PIN receiver maintain stable links over extended distances, while DDM provides real-time monitoring of temperature, voltage, and optical power. The module is hot-swappable, so installation and replacement cause zero downtime.

Full specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Standard: 10GBASE-LR (IEEE 802.3ae)
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Hot-Swappable: Yes
• Power Consumption: <1 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Transmitter: DFB Laser
• Receiver: PIN Photodiode
• Power Supply: 3.3 V
• Cable: 9/125 µm SMF
• MTBF: >500,000 hours
• Compliance: SFF-8431, SFF-8432, MSA

Final note

For network architects and operators, this transceiver offers a blend of performance, monitoring, and durability that keeps critical links running smoothly.
