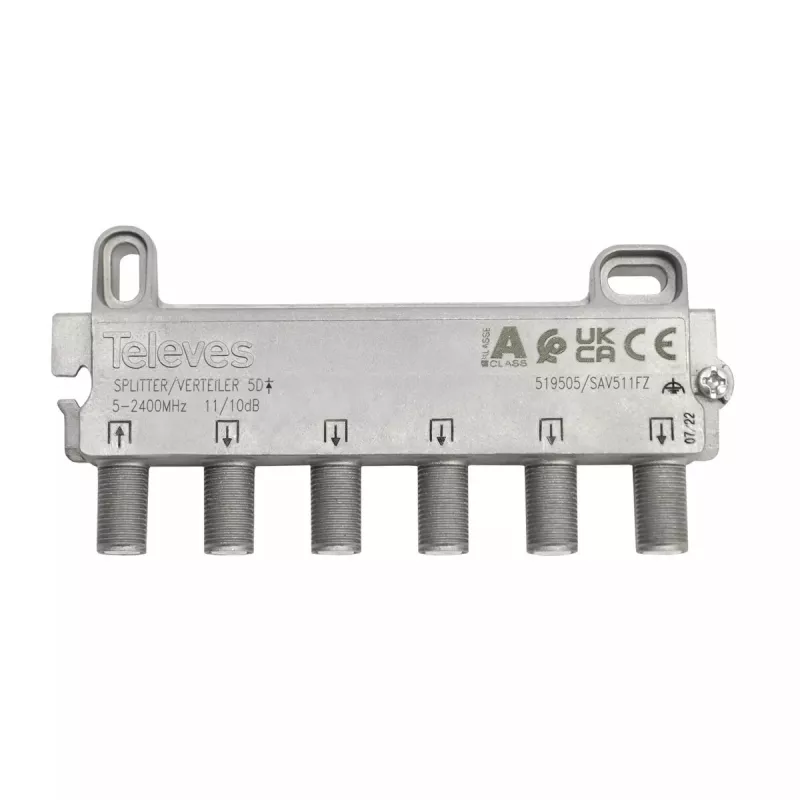

Cable splitter Televes 519505 Stainless steel 5 - 2400 MHz

F 5W splitter 5...2400MHz 11/10dB — five-way F‑connector splitter designed for SMATV and broadband RF distribution. The Televes 519505 operates across 5–2400 MHz and features a compact, miniaturized design that reduces through losses. Its zamak (stainless-like) chassis provides effective shielding and the unit is intended for indoor installation on a wall, rack plate or standard DIN rail.

Advantages

The Televes 519505 offers low insertion loss due to component miniaturization and stable performance across the full 5–2400 MHz range. Its zamak metal chassis enhances RF shielding and mechanical durability. F connectors simplify compatibility with common coaxial installations, while the compact form factor allows flexible mounting on walls, rack plates or DIN rails.

Suitable for

• SMATV and cable TV distribution systems
• Residential and commercial multi‑outlet installations

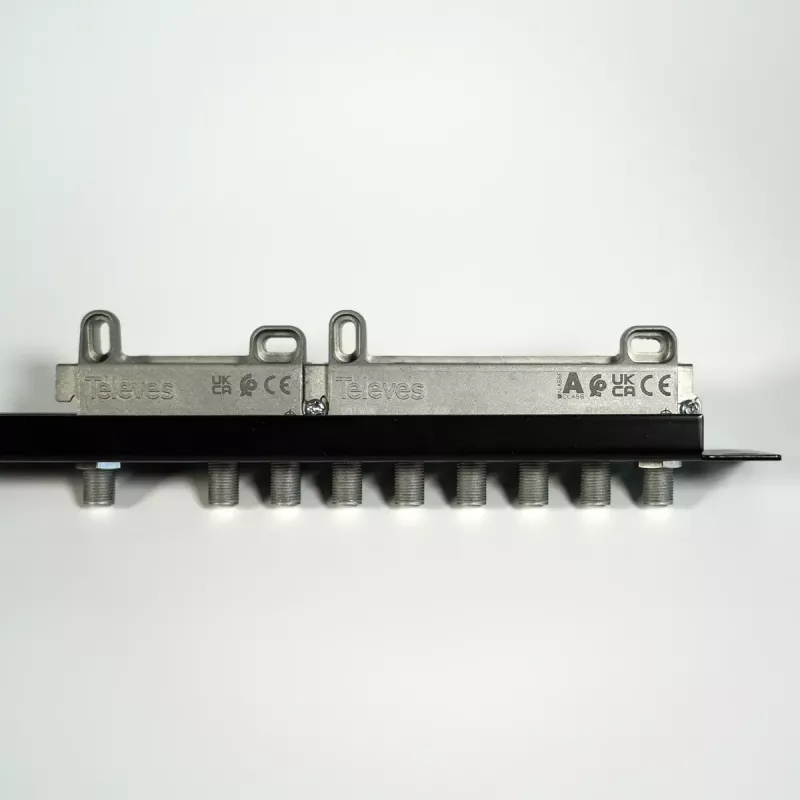

• Indoor mounting on walls, rack plates or DIN rails

Key specifications

• Model: Televes 519505
• Frequency range: 5–2400 MHz
• Outputs: 5-way splitter
• Attenuation: 11/10 dB (specified)
• Connectors: F‑type
• Chassis: Zamak (metal shielding)
• Intended installation: Indoor (wall, rack plate, DIN rail)
• EAN: 8424450267936

How to use

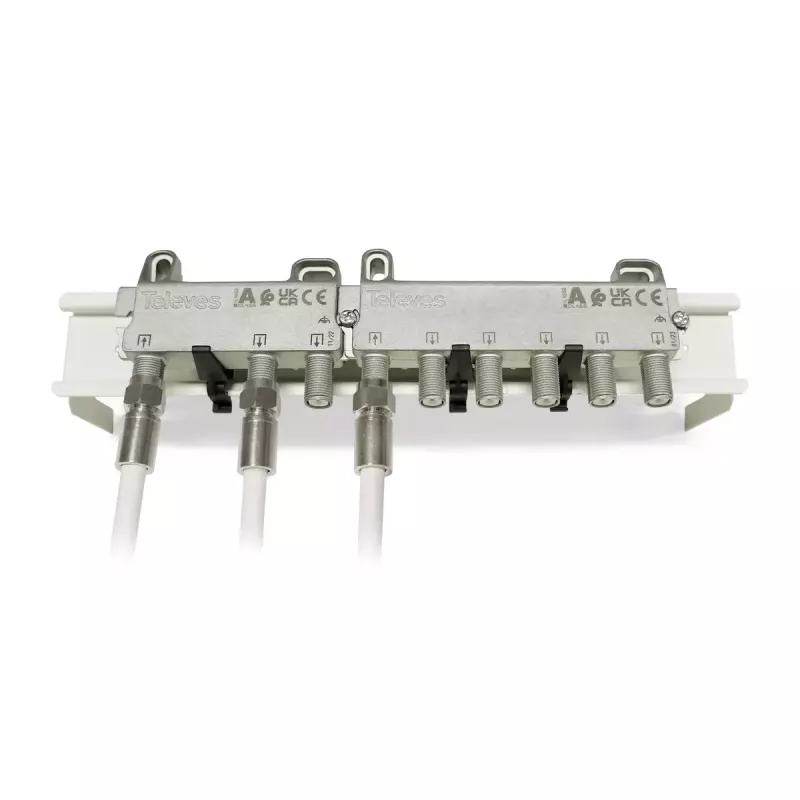

Mount the splitter in a dry indoor location on a wall, rack plate or standard DIN rail using appropriate fasteners. Connect the incoming coaxial feed to the splitter input and attach the five output cables to the F‑type output connectors. Ensure all F connectors are tightened securely to maintain shielding and signal integrity. Verify correct signal distribution and levels after installation.

Recommendations

Use with properly grounded installations and quality coaxial cables to ensure optimal performance. Avoid outdoor exposure and moisture; install in ventilated, dry enclosures. Check signal levels after splitting to confirm adequate reception on all outputs.
