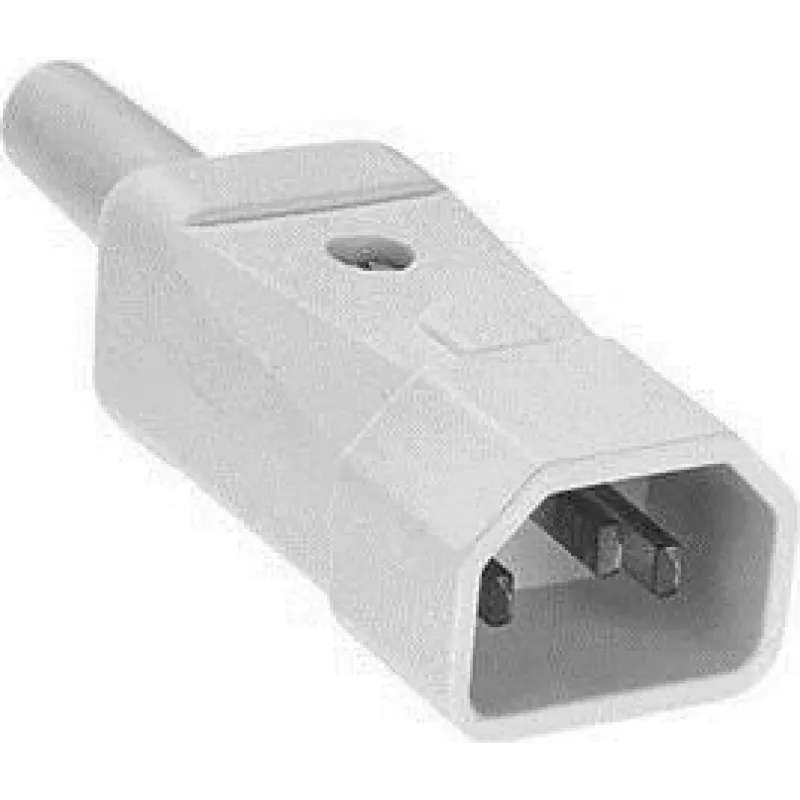

C14 Power Plug Bachmann 915.971 Grey

The Bachmann 915.971 C14 Power Plug in grey is a thermoplastic mains connector with earthing contact, rated for AC 250 V and up to 10 A. It accepts cables up to 3G 1.00 mm² and features a compact construction suitable for a variety of installation environments where a standard C14 inlet connection is required.

Advantages

This C14 power plug offers a screw terminal for secure conductor connection, integrated kink protection nozzle and strain relief to reduce mechanical stress on the cable, and a thermoplastic housing that provides electrical insulation and dimensional stability. The earthing contact is included to ensure safe grounding when used with compatible equipment.

Suitable for

• Powering IT equipment with C14/C13 interfaces
• Appliances and devices requiring a 250 V / 10 A inlet
• Repair or replacement of damaged C14 connectors

Key specifications

• Model: Bachmann 915.971
• Type: C14 power plug with earthing contact
• Rated voltage: AC 250 V
• Rated current: 10 A
• Conductor compatibility: up to 3G 1.00 mm²
• Housing material: thermoplastic
• Features: screw terminal, kink protection nozzle, strain relief
• Color: Grey
• MPN: 915.971
• EAN: 4016514005840

How to use

Strip the cable conductors to the appropriate length, insert them into the screw terminals according to the device's wiring scheme, and tighten the screws to secure electrical contact. Position the kink protection nozzle and the strain relief over the cable before final assembly to ensure mechanical protection. Verify the earthing conductor is connected to the designated terminal and check continuity before applying mains voltage.

Recommendations

Use this C14 plug with cables matching the specified cross-section (up to 3G 1.00 mm²) and within the declared ratings (250 V, 10 A). Install and service the connector with power disconnected and follow local electrical codes. For repeated or high-load applications, inspect the terminal connections and strain relief periodically for wear or loosening.
