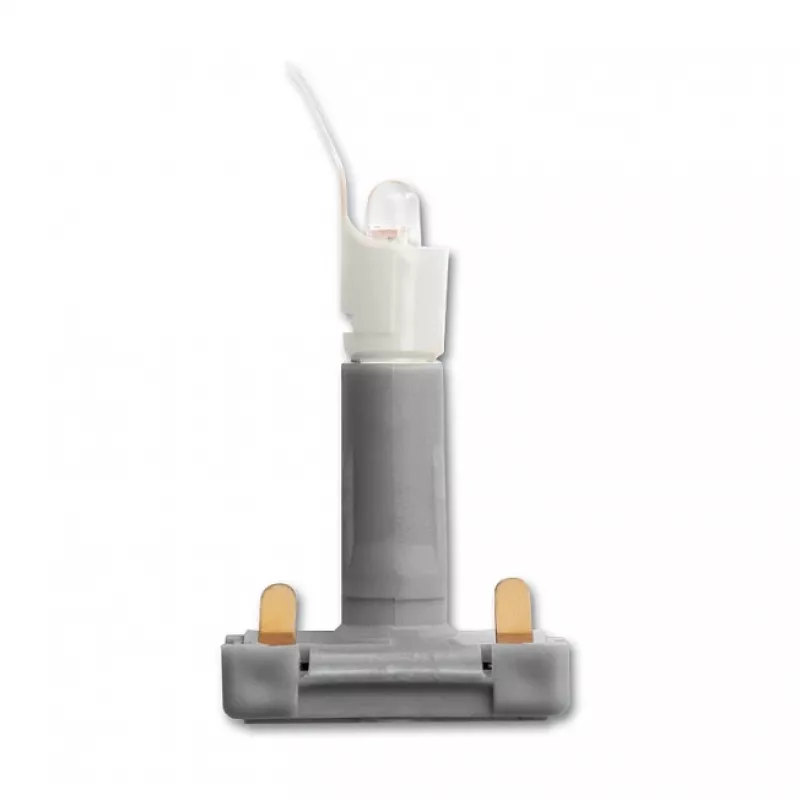

BUSCH-JAEGER 8383-12 LED Illumination Insert with Socket, Red, 2 mA

For those who demand reliable status indication without the heat and short life of traditional glow lamps, the BUSCH-JAEGER 8383-12 LED illumination insert delivers a crisp red signal from a fraction of the energy. This module insert is built to replace conventional glow lamps in compatible Busch-Jaeger switch and socket programs, providing a durable, maintenance-free orientation light for rocker switches, push-buttons, and socket outlets.

Highlights

• Energy-efficient LED technology with only 0.46 W power consumption
• Clear red light for control, orientation, and status indication
• Rated for 230 V AC with a low 2 mA current draw
• Integrated socket for simple, secure connection
• Compatible with Reflex SI, Future Linear, Solo, and Carat ranges

In daily use

Installed behind a compatible rocker or push-button, this insert provides a subtle red glow that makes switches easy to locate in dark hallways, bedrooms, or stairwells. It also serves as a clear status indicator for circuits, helping you see at a glance whether a load is active. The LED source is designed for continuous operation, eliminating the frequent replacements associated with older glow lamps.

Full specifications

• Product type: LED illumination insert
• Light colour: Red
• Rated voltage: 230 V AC
• Rated current: 2 mA
• Power consumption: approx. 0.46 W
• Connection: with socket
• Mounting: module insert
• Material: high-quality plastic
• Application: indoor use only
• Compatibility: Busch-Jaeger switch and socket programs (Reflex SI, Future Linear, Solo, Carat)

Final note

A smart upgrade for any Busch-Jaeger installation, this LED insert brings modern efficiency and long life to your control and orientation lighting needs.
