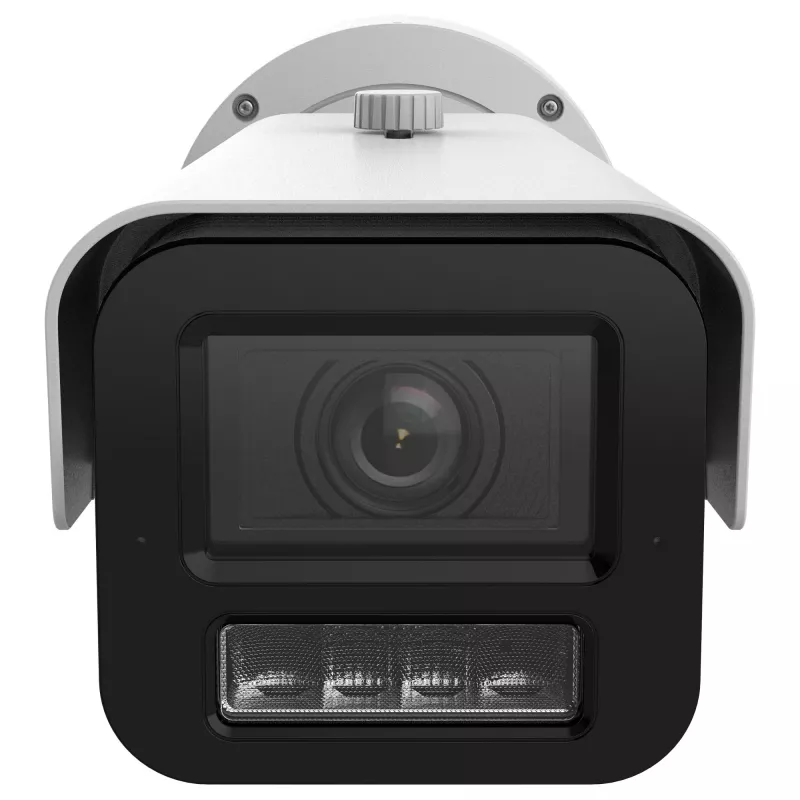

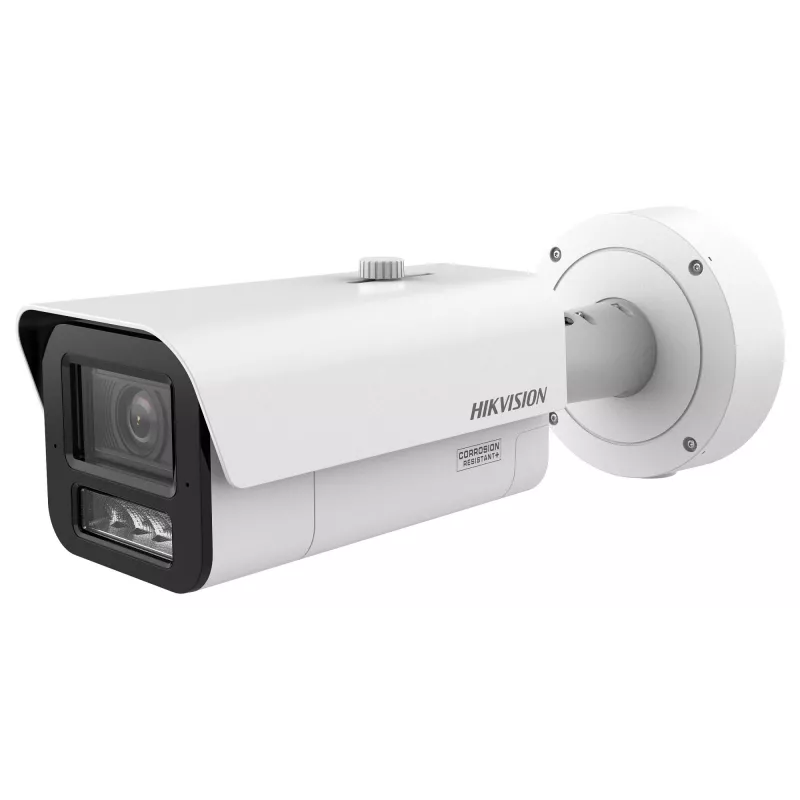

Bullet IP security camera Hikvision IDS-2CD7A46G2/V-XZHSY 2688×1520, 1/1.8 inch CMOS, 2.8–12 mm motorized lens, outdoor wall mount

Hikvision IDS-2CD7A46G2/V-XZHSY is a 4 MP bullet IP security camera designed for outdoor wall mounting. It integrates a 1/1.8" CMOS sensor with 2688×1520 resolution and a 2.8–12 mm motorized varifocal lens, offering a horizontal field of view from approximately 106° to 41.8°. The camera supports wired Ethernet connectivity, has weather- and impact-resistant mechanical protection suitable for outdoor perimeter and facility surveillance, and includes imaging and compression technologies aimed at clear video capture and efficient storage.

Advantages

The camera delivers high-resolution imaging at 4 MP and improved low-light performance, enabling detailed scene capture across day and night conditions. Wide dynamic range (WDR) and advanced imaging algorithms help maintain clarity when there are strong backlight or contrast conditions. Efficient H.265+ compression reduces bandwidth and storage requirements while multiple streams permit flexible recording and monitoring setups. Robust environmental protection and an integrated heater make the unit suitable for outdoor installations where dust, water, vandalism risk or low temperatures may otherwise affect operation.

Suitable for

• Perimeter protection of buildings and fences
• Parking lot surveillance and vehicle monitoring
• Facility entrance and access point monitoring
• Outdoor corridors, loading docks and yard areas

Key specifications

• Image sensor: 1/1.8" CMOS, 4 MP (2688×1520)
• Lens: 2.8–12 mm motorized varifocal (horizontal angle ~106°–41.8°)
• Compression: H.265+ (efficient bandwidth and storage usage)
• Streams: up to 5 simultaneous streams
• Low-light technology: enhanced low-light imaging (DarkFighter or equivalent)
• Wide dynamic range: up to 140 dB WDR
• Night vision: infrared illumination for long-range night monitoring (specified up to ~100 m typical for equivalent models)
• Ingress and impact protection: rated for outdoor use (IP67) and vandal resistance (IK10)
• Mounting: outdoor wall mount (bullet form factor)
• Operating features: built-in heater for cold or wet conditions
• Color: white
• Weight: approximately 2.28 kg

How to use

Mount the camera on a stable outdoor wall or surface using appropriate anchors and the wall-mount bracket, ensuring the field of view covers the intended perimeter, parking or facility areas. Connect the camera to a wired Ethernet network for power and data, or use a compatible power-over-Ethernet (PoE) infrastructure if supported. Configure image settings, compression, streams and detection parameters via the recorder, NVR or camera web interface according to site requirements. Position and adjust the motorized 2.8–12 mm lens to achieve the desired framing and focus during installation, then secure the lens position.

Recommendations

Install the camera at a height and angle that minimizes direct exposure to vehicle headlights and strong backlight; use WDR settings for scenes with high contrast. For perimeter protection, enable AI-based detection features and tune sensitivity to reduce false alarms. Regularly check seals and mounting hardware, and verify firmware updates and network security settings to maintain reliable operation and cyber protection.
