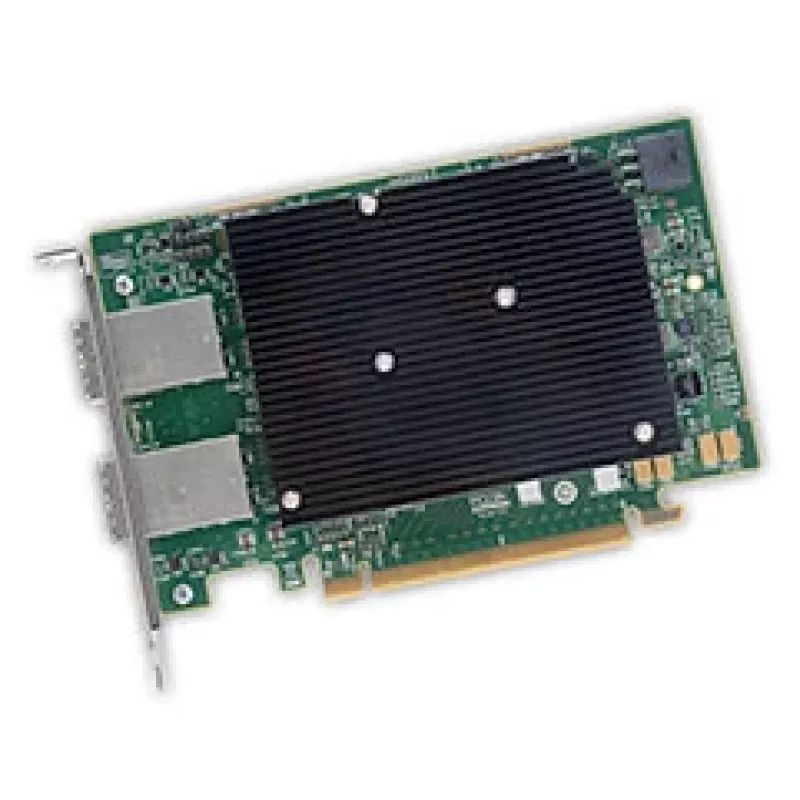

BROADCOM SAS 9302-16e Host Bus Adapter 16 Port Pci-e

BROADCOM SAS 9302-16e Host Bus Adapter 16 Port Pci-e
BROADCOM SAS 9302-16e Host Bus Adapter 16 Port Pci-e
R7,654
For server and storage systems needing maximum throughput, the SAS 9302-16e HBA delivers up to 2.8 million input-output operations per second. Using two SAS 3008 12Gb/s SAS controllers with a 16 lane PCI Express 3.0 interface gives Broadcom the highest performing HBA.... Read More
Stock 5 Code 125152 Brand BROADCOM Model 05-25688-00 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

For server and storage systems needing maximum throughput, the SAS 9302-16e HBA delivers up to 2.8 million input-output operations per second. Using two SAS 3008 12Gb/s SAS controllers with a 16 lane PCI Express 3.0 interface gives Broadcom the highest performing HBA.

Key Highlights
  • Connects up to 1024 SAS and SATA devices with 16 external 12Gb/s SAS ports
  • Provides maximum connectivity and performance for external JBOD and external RAID enclosures
  • Supports critical application with the bandwidth of a 16 lane PCIe 3.0 connectivity
  • Achieves up to 2.8 million IOPS for performance-sensitive applications
Specifications
Certification
Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (N-B 2-0001-404), RoHS, Safety: EN60950, WEEE
Compliance certificates
RoHS
Data transfer rate (max)
12 Gbit/s
Expansion card standard
PCIe 3.0
Full duplex
Yes
Harmonized System (HS) code
84733020
Host interface
PCIe
Internal
Yes
Internal SATA ports quantity
16
Linux operating systems supported
Yes
Manual
Yes
Mean time between failures (MTBF)
1500000 h
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 55 °C
Output interface
SAS, SATA
Plug and Play
Yes
Power consumption (typical)
30 W
Product colour
Black, Green, Metallic
Quantity
1
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-45 - 105 °C
User guide
Yes
Windows operating systems supported
Yes
