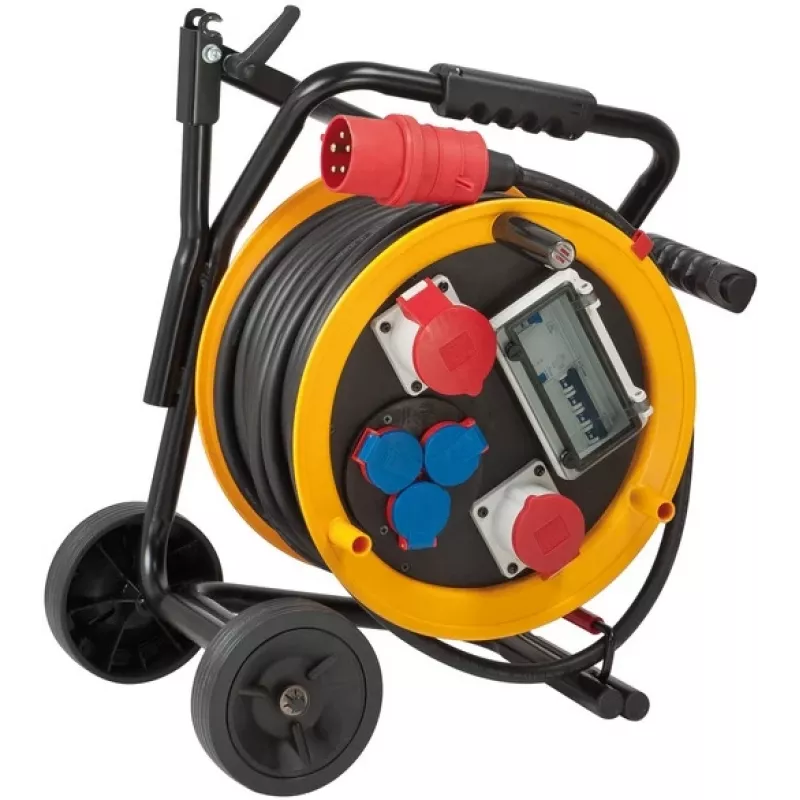

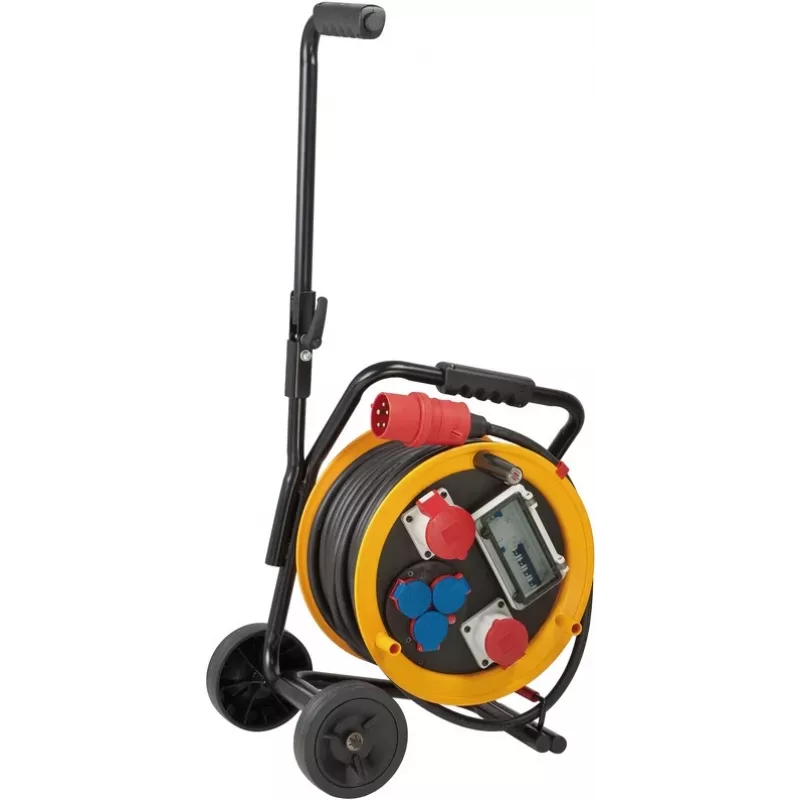

Brennenstuhl 1319200010 Cable Reel 230-400 V 25m H07RN-F 5G2.5 with 5 Sockets IP44

On construction sites and in industrial workshops, reliable power distribution is non-negotiable. The Brennenstuhl 1319200010 cable reel delivers exactly that: a robust 25-meter H07RN-F 5G2.5 rubber cable wound on a galvanized steel frame, equipped with five sockets to handle both 230 V and 400 V equipment simultaneously. Whether you're running heavy machinery or charging multiple tools, this reel keeps power within reach.

Key specifications

• Cable length: 25 m
• Cable type: H07RN-F 5G2.5 (rubber neoprene, 5 cores, 2.5 mm² cross-section)
• Sockets: 1 × CEE 400 V 16 A, 2 × CEE 230 V 16 A, 2 × Schuko 16 A
• Voltage rating: 230 V / 400 V
• Protection class: IP44 (splash-proof)
• Max power (400 V unwound): 11000 W
• Max power (230 V unwound): 3500 W
• Overheating protection: thermal cut-out
• Drum material: special plastic
• Frame material: galvanized steel tube
• Drum diameter: 290 mm

Why choose it

The combination of a rugged galvanized steel frame and a special plastic drum ensures durability in harsh environments. The H07RN-F cable is oil-resistant and remains flexible even in cold temperatures, making it ideal for outdoor use. With IP44 protection, the reel withstands splashing water from any direction, and the integrated thermal cut-out prevents overheating when the cable is partially wound.

Ideal use cases

• Construction sites requiring both 230 V and 400 V power
• Industrial maintenance and repair operations
• Outdoor events and temporary installations
• Workshops with multiple power tools

Good to know

Always unwind the cable fully when operating at maximum load to avoid overheating. The reel's sturdy stand allows stable placement on uneven ground, and the large drum diameter ensures easy winding and unwinding. For safety, the thermal cut-out automatically interrupts power if the cable temperature exceeds safe limits.
