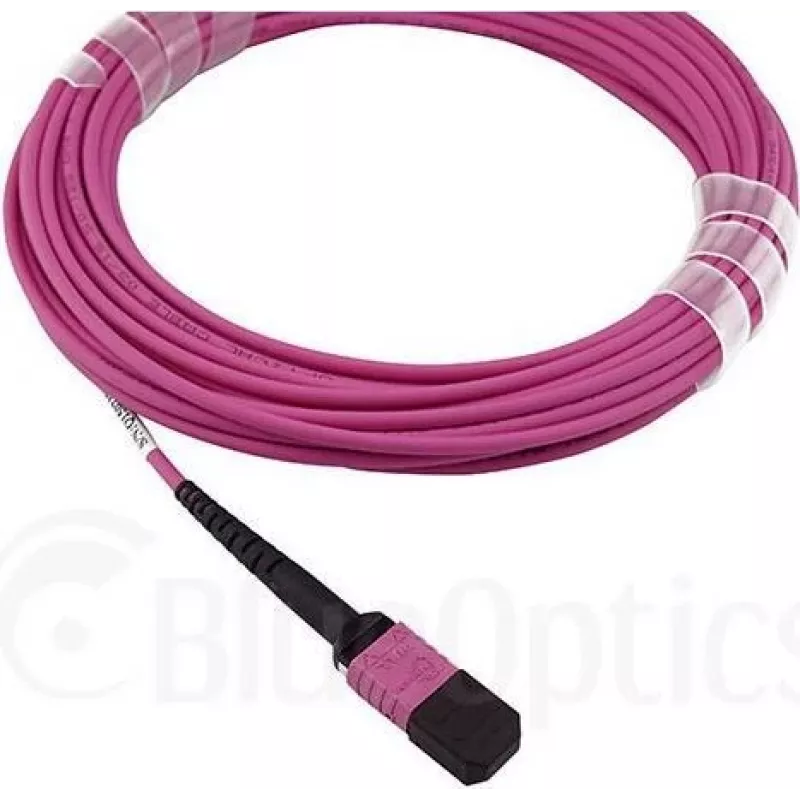

BlueOptics X66205-3-BO InfiniBand fibre optic cable 3 m MPO 4x LC

The BlueOptics X66205-3-BO InfiniBand fibre optic cable is a 3 m MPO to 4x LC assembly designed for high-density interconnects in data centers and enterprise networks. Built with OM4 laser-optimized multimode fiber and a 125 µm core diameter, this cable supports full-duplex data transmission and is intended for high-speed optical links between patch panels, switches, and transceivers. The cable features an LSZH (low smoke, zero halogen) outer jacket for reduced smoke and no halogen release in case of fire.

Advantages

This MPO to 4x LC cable uses OM4 multimode fiber to provide low attenuation and high return loss suitable for demanding optical links. Connectors use zirconia ceramic ferrules for reliable mating performance and an extended mating life. Each cable is factory-tested with interferometer and OTDR measurements and supplied with a measurement protocol for input loss and return loss. The LSZH jacket and compliance with common industrial standards offer safer deployment in enclosed installations.

Suitable for

Key specifications

How to use

Route the 3 m MPO to 4x LC cable between MPO-enabled ports and the corresponding LC ports or transceivers, taking care to align polarity and keying on MPO connectors. Ensure connector endfaces are clean before mating; use appropriate cleaning tools or wipes to remove dust or contamination. Plug the MPO end into the MPO inlet or trunk and connect the individual LC duplex plugs to the target LC ports. Avoid tight bends and maintain the recommended minimum bend radius for multimode OM4 fiber during installation.

Recommendations

Store and handle the cable in a dry, dust-free environment. Use dust caps on unused connectors and perform endface inspection after installation. For optimal performance, follow vendor guidance for polarity, channel loss budget, and transceiver pairing when deploying in InfiniBand or Ethernet multimode links.
