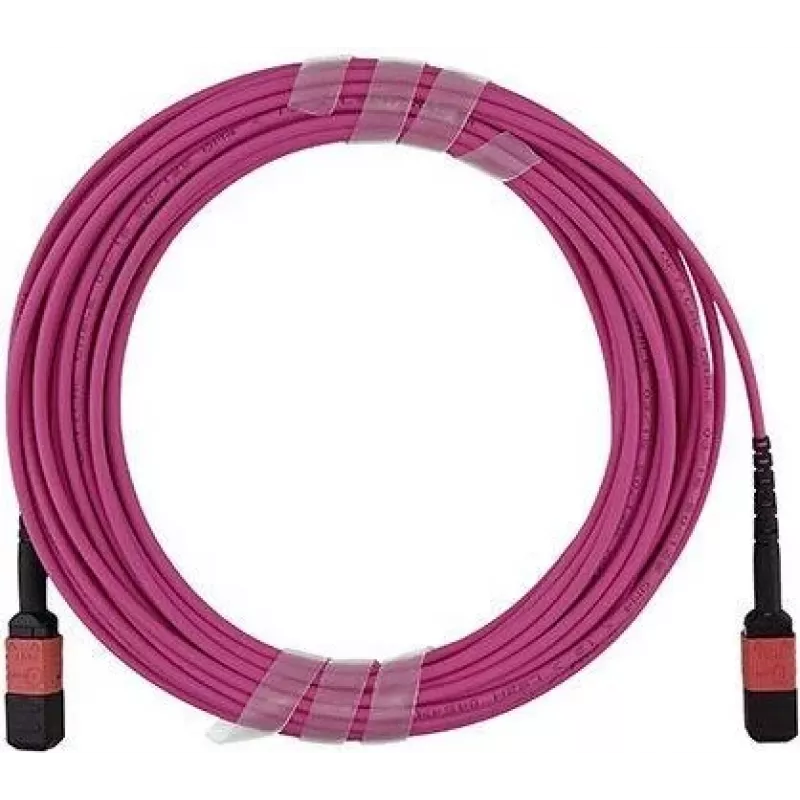

BlueOptics UACC-OFC-MA-MPMP-3M kompatibles MPO-MPO Multimode OM4 Patchkabel 3 Meter

High-density fibre patching gets a reliable backbone with this 3-metre MPO-MPO multimode OM4 patch cable. It delivers low-loss 40/100 Gigabit Ethernet connectivity for data centres and enterprise backbones, using 12-fibre MPO connectors to maximise port density without sacrificing signal integrity.

Advantages

OM4 laser-optimised fibre supports 40GBASE-SR4 and 100GBASE-SR4 links up to 150 metres, while the 3.0 mm round LSZH jacket keeps installations tidy and fire-safe. Factory-terminated MPO connectors with UPC polish ensure consistent insertion loss and return loss, reducing deployment time compared to field termination. The cable is fully compatible with industry-standard MPO/MTP interfaces, making it a drop-in replacement for vendor-specific assemblies.

Suitable for

• Data centre spine-leaf architectures using 40G and 100G parallel optics
• High-density fibre distribution areas and SAN fabrics
• Telecommunications rooms requiring quick, repeatable MPO trunk connections
• Network upgrades from 10G to 40G/100G without recabling

Key specifications

• Length: 3 metres
• Connector 1: MPO female (12-fibre, UPC polish)
• Connector 2: MPO female (12-fibre, UPC polish)
• Fibre type: OM4 multimode, 50/125 µm core/cladding
• Jacket: LSZH, 3.0 mm diameter, aqua colour
• Insertion loss: ≤ 0.35 dB typical per mated pair
• Return loss: ≥ 20 dB
• Operating temperature: -20 °C to +70 °C

Recommendations

Pair this cable with MPO-to-LC breakout modules or cassettes for seamless migration from 10G to 40G/100G. For best performance, inspect and clean MPO connectors before each mating using a dry optical cleaning tool. Store unused cables with dust caps in place to prevent contamination.
