BlueOptics SFP3132FU15MK InfiniBand fibre optic cable 15 m LC SC

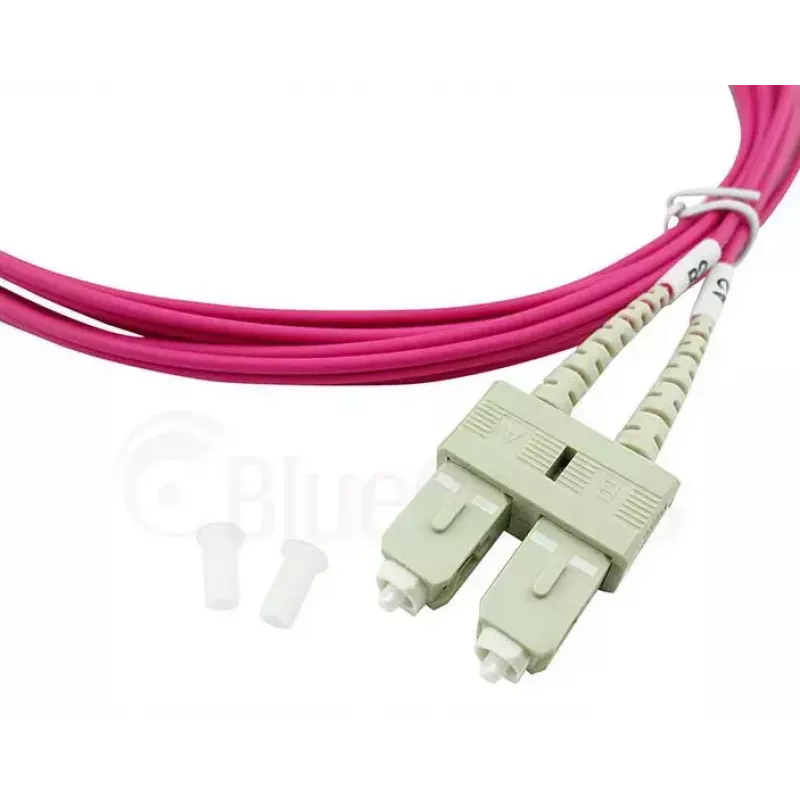

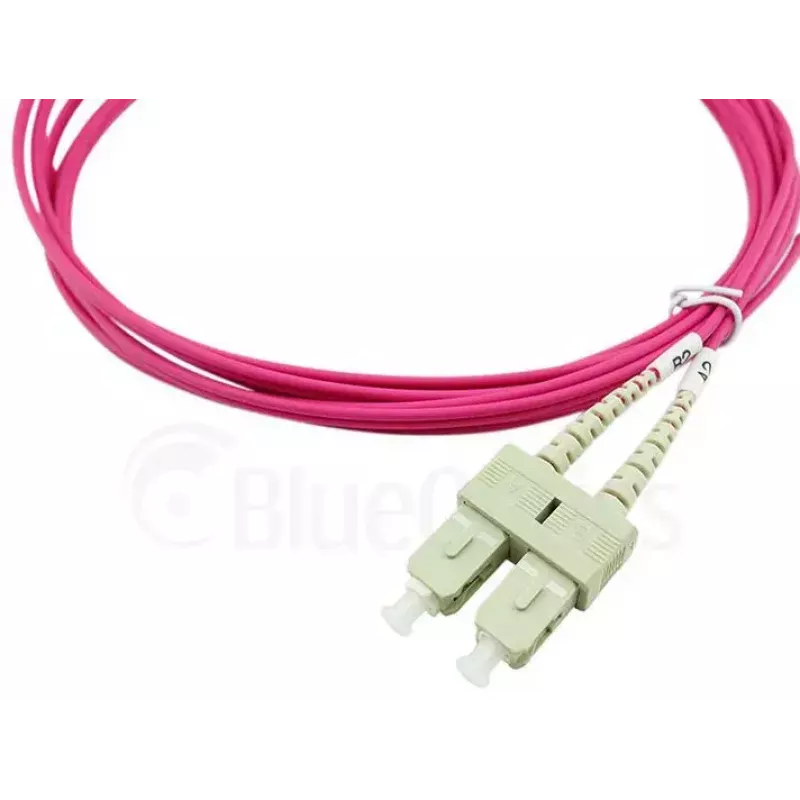

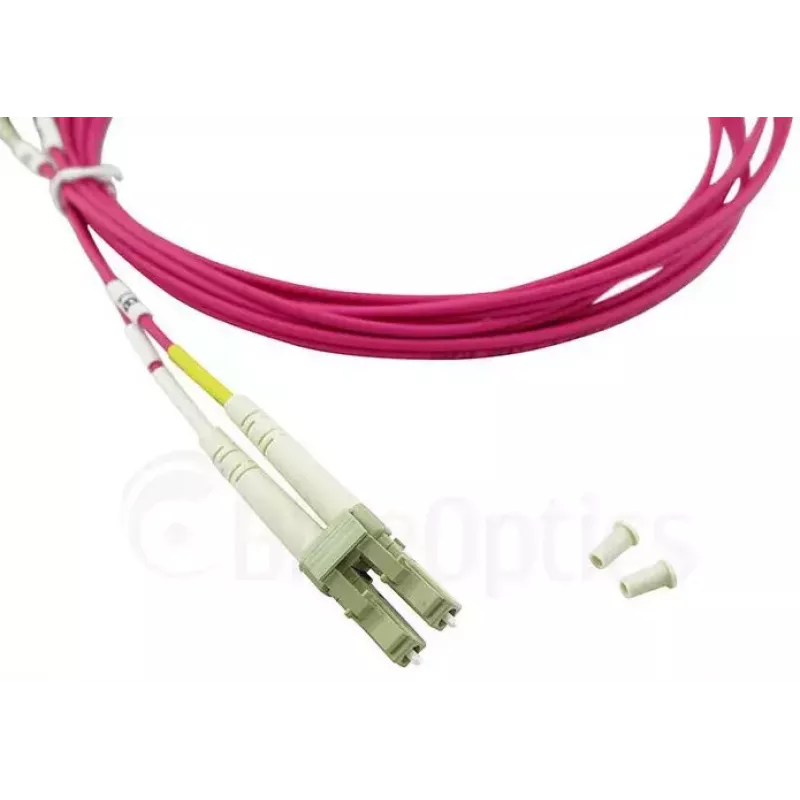

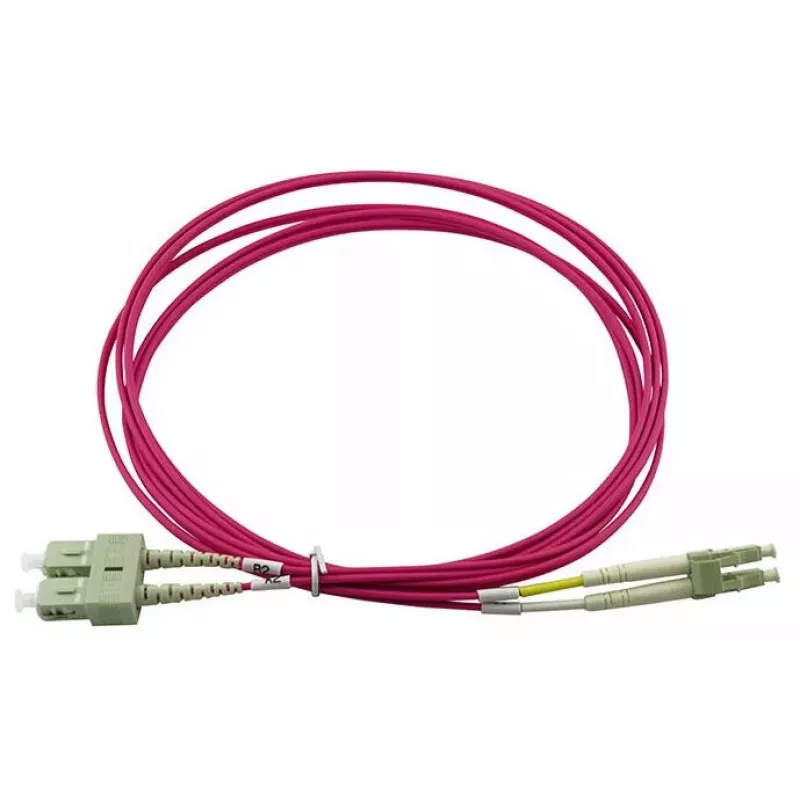

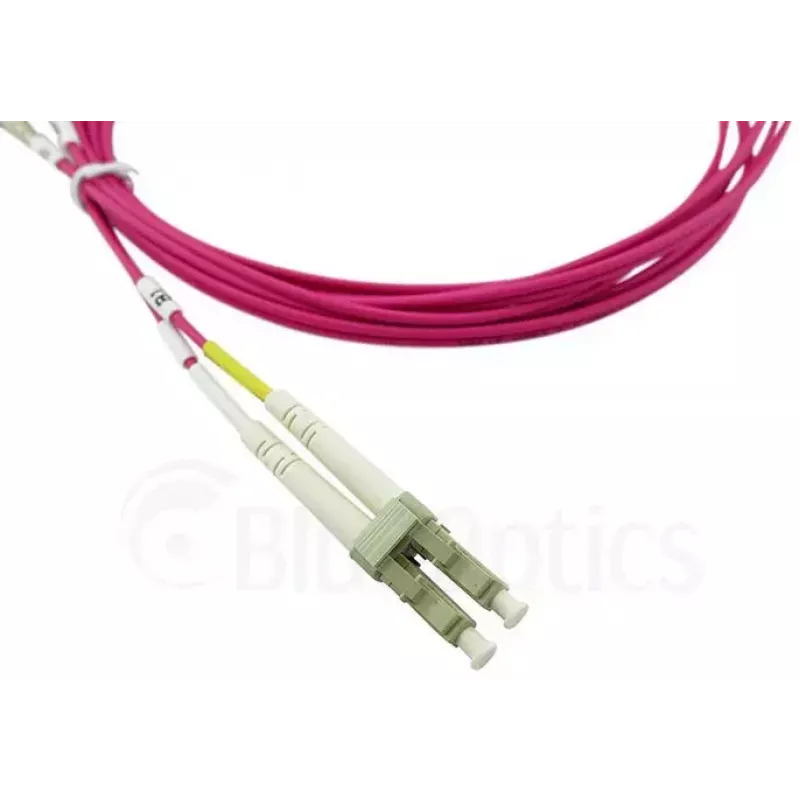

The BlueOptics SFP3132FU15MK is a 15 m InfiniBand fibre optic patch cord with duplex LC/UPC to SC/UPC connectors and OM4 multi-mode fibre (50 µm core). Designed for 850 nm transmission, this LC–SC cable provides full duplex communication and is suitable for connecting patch panels, optical transceivers and other networking equipment in data centres and high-density network installations. The exterior features a flame-retardant LSZH jacket in magenta for improved safety and reduced smoke and halogen emission in case of fire.

Advantages

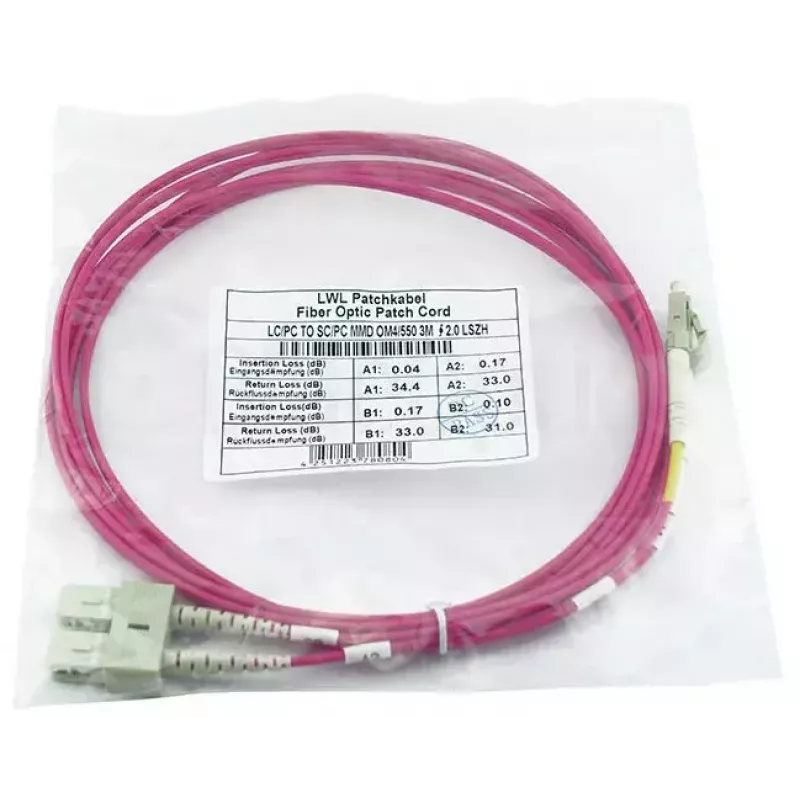

This OM4 LC–SC duplex cable offers low attenuation (approximately 2.5 dB/km) and low insertion loss with high return loss values. Connectors use zirconia ceramic ferrules for long service life and repeated mating cycles. Components from established fibre and connector manufacturers are used to ensure stable, low-loss transmissions. Each cable is tested with interferometer and OTDR and supplied with measurement results for input loss and return loss.

Suitable for

Key specifications

How to use

Route the BlueOptics OM4 LC–SC duplex cable between the corresponding LC and SC ports of patch panels or transceivers, taking care to maintain bend radii recommended for multi-mode fibre. Align and insert connectors gently until a secure latch clicks into place. Verify link integrity using appropriate diagnostics or the supplied test report for insertion loss and return loss. Avoid excessive pulling force and protect connectors from contamination by using dust caps when not in use.

Recommendations

Store and install the cable in clean conditions, keep connectors capped until connection, and respect minimum bend radius and manufacturer handling guidelines to preserve OM4 performance. For custom lengths or specific connector polish options, consult product support or sales to ensure compatibility with existing equipment.
