BlueOptics SFP3131BU10MM InfiniBand fibre optic cable 10 m LC Yellow

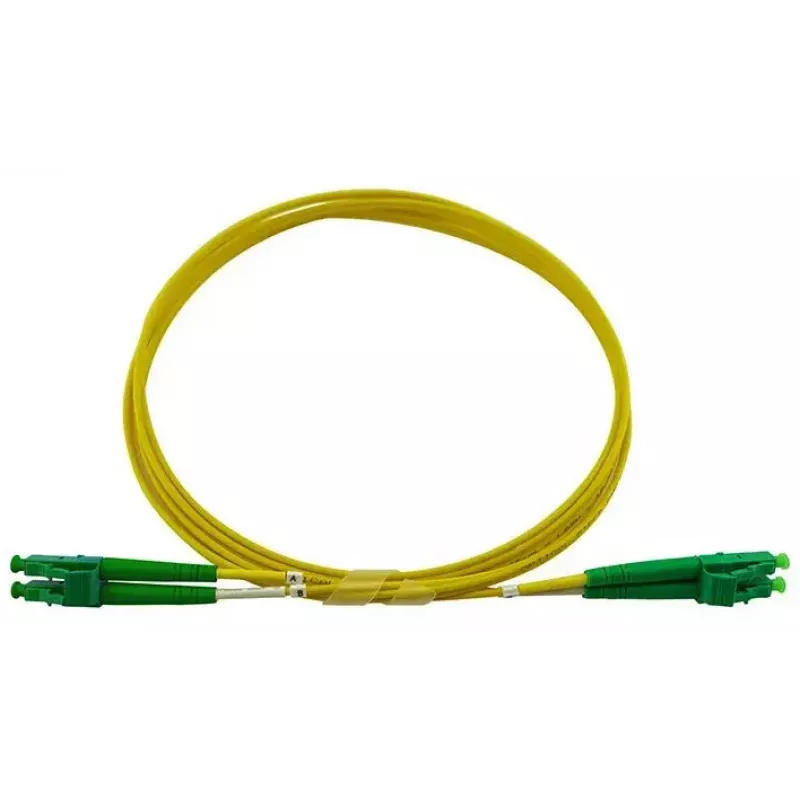

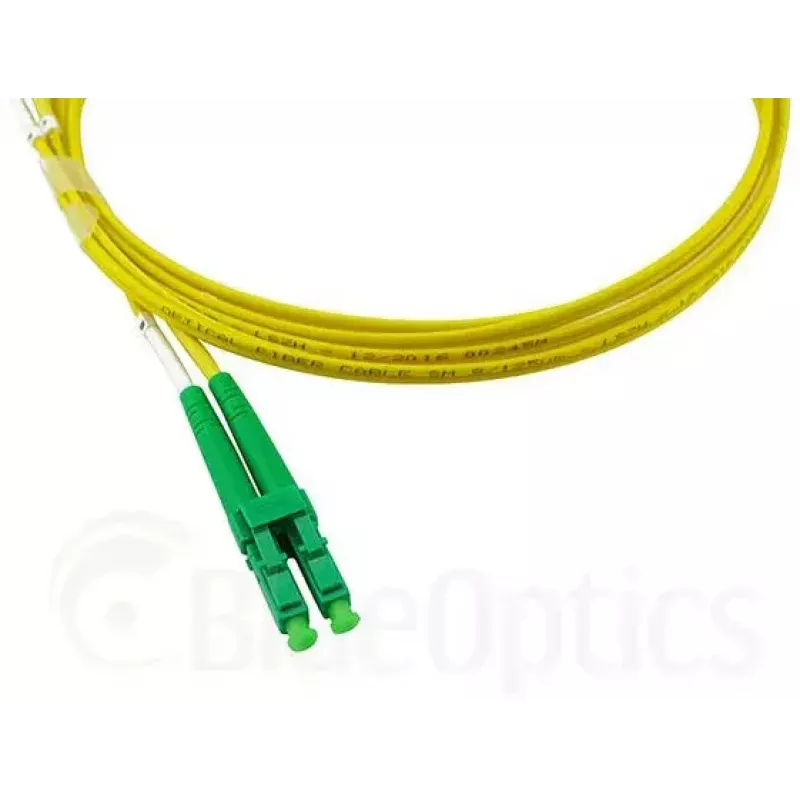

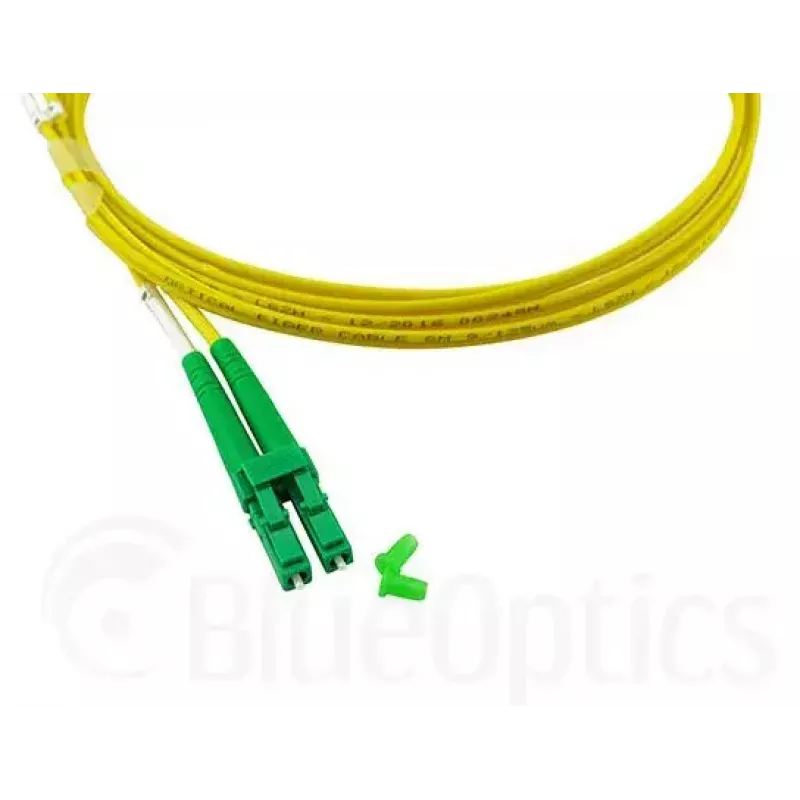

BlueOptics SFP3131BU10MM is a 10 meter single-mode duplex fiber optic patch cord with LC/APC to LC/APC (8° angled polish) connectors and laser-optimized G.657.A1 fiber (E9/125 µm). The cable is yellow and designed for transmission at 1310 nm and 1550 nm, supporting full-duplex connections between patch panels, optical transceivers and other network components. The jacket is LSZH (low smoke zero halogen) to reduce smoke and eliminate halogen release in case of fire.

Advantages

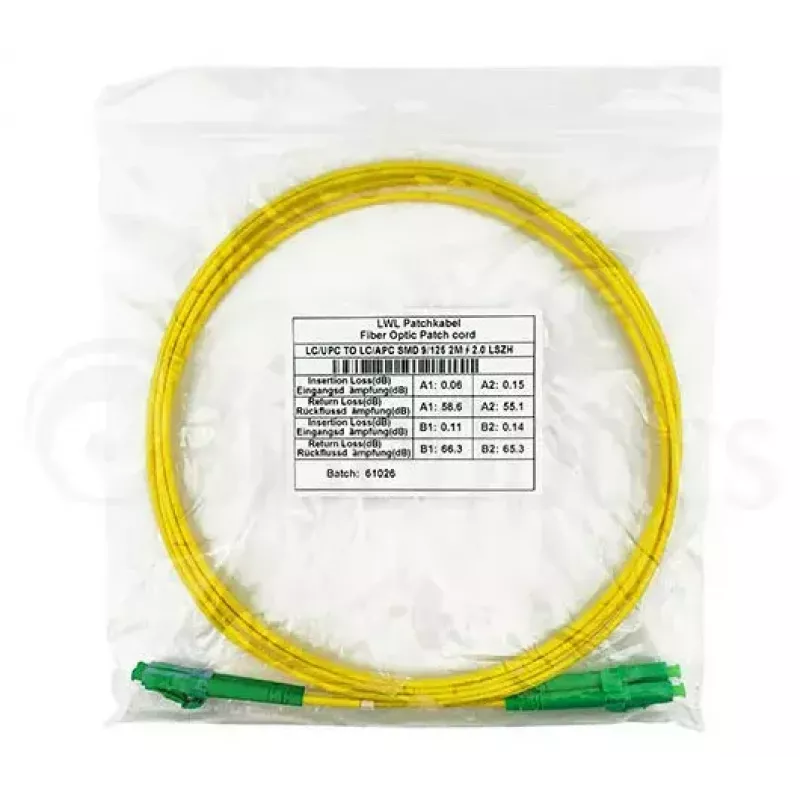

This BlueOptics LC/APC-LC/APC patch cord provides low attenuation (0.4 dB/km), low insertion loss and high return loss. It is produced from branded single-mode fibers and uses precision ceramic ferrules to ensure reliable, repeatable connections with up to 1500 mating cycles. Each cable is factory-tested with interferometer and OTDR and delivered with a measurement protocol of insertion loss and return loss values. The product meets Telcordia GR-326-Core requirements and common industry standards for safety and materials.

Suitable for

Key specifications

How to use

Inspect connectors and ports for dust or damage before connecting. Align the LC/APC connectors with the equipment ports and insert gently until the latch engages. For duplex connections ensure correct orientation of transmit and receive fibers. Avoid tight bends and secure the cable to prevent strain; maintain the minimum bend radius recommended for single-mode fiber when routing the cable.

Recommendations

Store and handle the cable in a clean environment and use dust caps when connectors are not in use. For optimal performance, follow manufacturer guidelines for bend radius, connector cleaning, and mating cycles. Custom lengths are available on request if standard lengths do not meet installation requirements.
