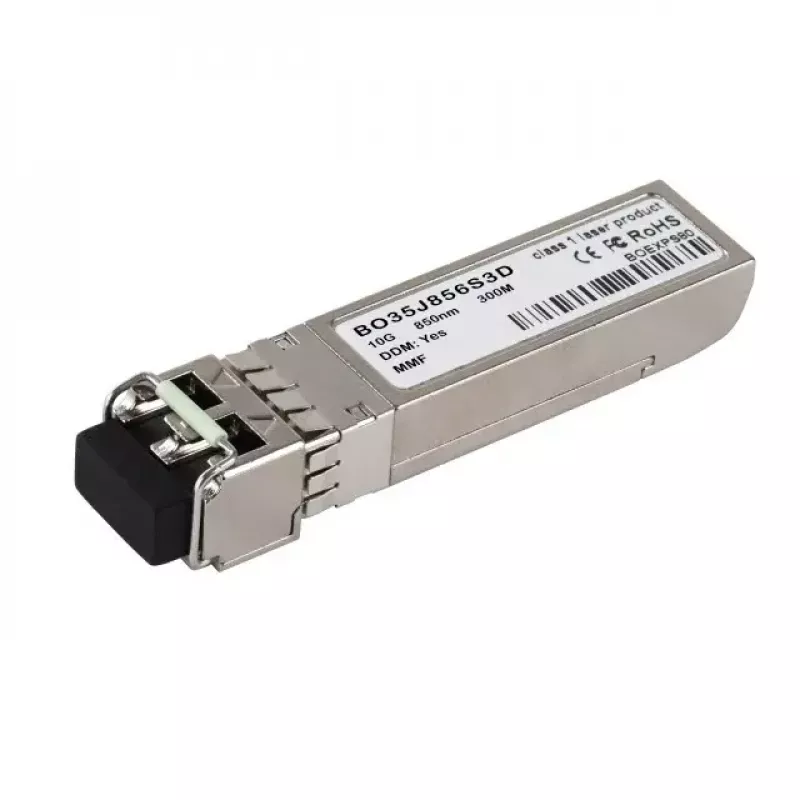

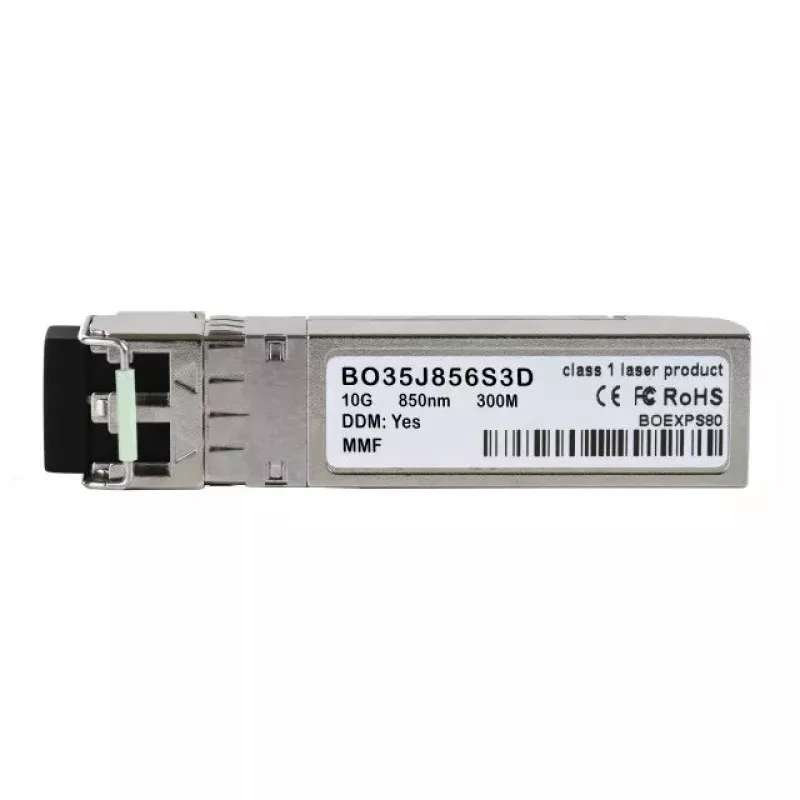

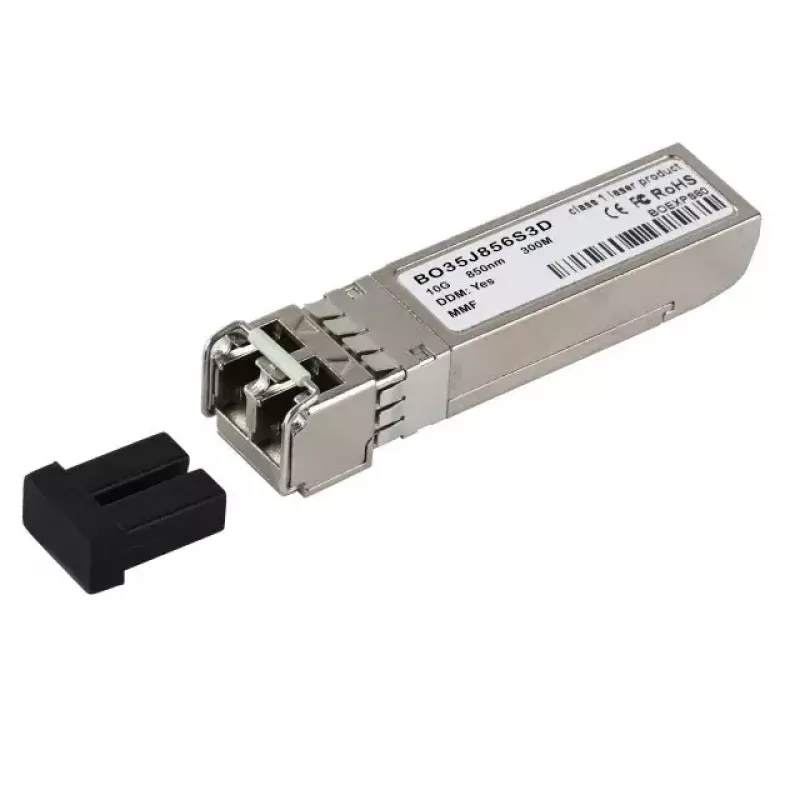

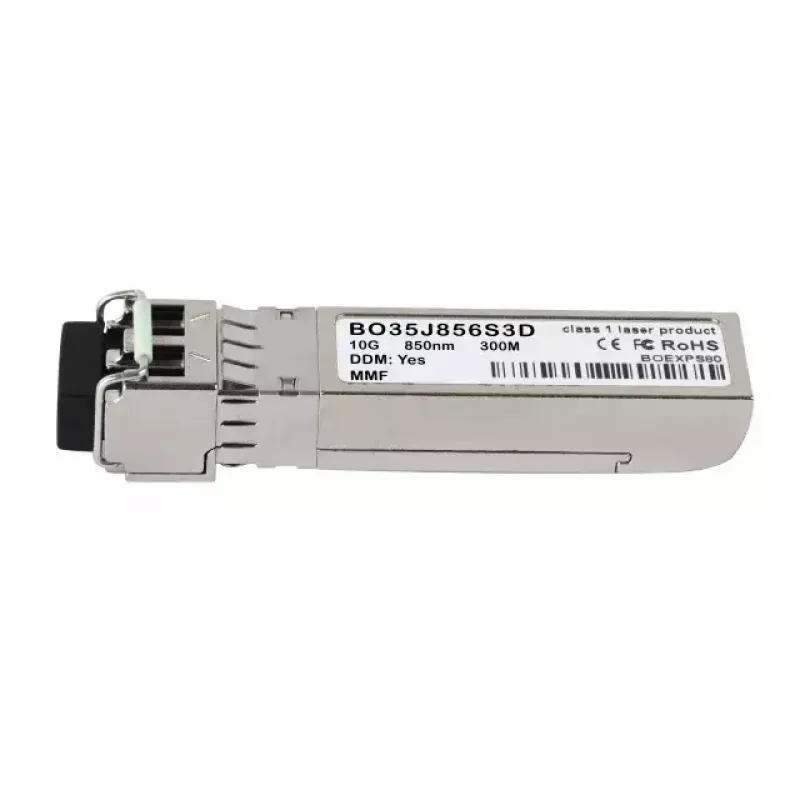

SFP+ transceiver EFB Elektronik BO35J856S3D-BO

The EFB Elektronik BO35J856S3D-BO is an SFP+ transceiver module for short-range multimode fiber networks. It supports 10 Gigabit Ethernet and related protocols at data rates up to 10.325 Gbit/s, operates at an 850 nm wavelength and uses an LC duplex connector. The module is intended for high-speed fiber links with a multimode reach of up to 300 m.

Advantages

This SFP+ transceiver provides a compact, hot-pluggable form factor compatible with standard SFP+ ports, offers reliable 10 Gb/s connectivity over multimode fiber, and features an LC duplex connector for common fiber patching. The module is compliant with short-range 10GbE applications and supports Fibre Channel over Ethernet where applicable.

Suitable for

• Short-range 10 Gigabit Ethernet links over multimode fiber
• 10 Gigabit Fibre Channel over Ethernet (FCoE) connections
• Data center uplinks and switch-to-switch connections within a single building
• Network equipment that accepts SFP+ LC duplex transceivers

Key specifications

• Model: BO35J856S3D-BO (EFB Elektronik)
• Maximum data transfer rate: 10000 Mbit/s (supports up to 10.325 Gbit/s)
• Wavelength: 850 nm
• Maximum transfer distance: 300 m (multimode fiber)
• Connector type: LC duplex

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on a switch, server or media converter while the device is powered according to the host equipment instructions. Connect LC duplex multimode fiber patch cables to the module, observing correct transmit/receive orientation. Verify link status on the host device and ensure transceiver compatibility with the equipment firmware and optics policy.

Recommendations

Use the BO35J856S3D-BO in multimode fiber installations up to 300 m with appropriate OM fiber type and clean, certified LC connectors. Check device vendor compatibility lists and update firmware as needed to ensure full interoperability. Avoid exposing the optical interface to dust; keep dust caps on when not in use.
