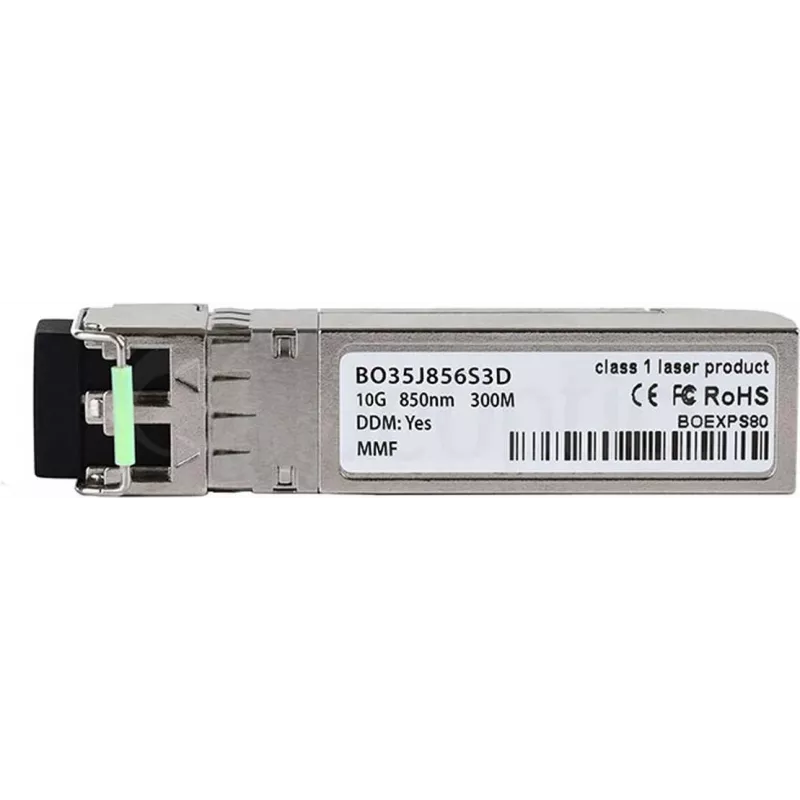

SFP+ transceiver CBO AXM761-10000S 10 Gbit/s 850 nm

CBO AXM761-10000S is an SFP+ optical transceiver module that supports 10 Gbit/s data transfer over multimode fiber using an 850 nm wavelength. Designed for short-range links in data centers, campus networks and enterprise environments, this module follows the standard SFP+ form factor and provides hot-pluggable connectivity for switches, servers and storage appliances. The transceiver is intended for reliable 10 Gigabit Ethernet or Fibre Channel links over multimode fiber for distances typical of short-reach applications.

Advantages

The SFP+ transceiver offers a compact, industry-standard form factor that simplifies replacement and upgrades in existing SFP+ ports. Hot-pluggable operation allows installation or replacement without powering down the host system. Using an 850 nm VCSEL emitter and multimode fiber compatibility provides cost-effective short-range optical links with low power consumption and stable performance. The module is suitable for high-density rack deployments where small size and consistent 10 Gbit/s throughput are required.

Suitable for

• 10 Gigabit Ethernet links in data center aggregation and access layers
• Short-range server-to-switch and switch-to-switch connections
• Storage area network (SAN) links and backup infrastructure within a campus or rack
• Multimode fiber installations using 850 nm optics for distances up to typical short-reach limits

Key specifications

• Data rate: 10 Gbit/s
• Optical wavelength: 850 nm
• Fiber type: Multimode fiber (MMF)
• Form factor: SFP+
• Interface: Hot-pluggable serial optical interface for SFP+ ports
• Typical reach: Short-range multimode links (designed for data center and campus distances)
• Application: 10 Gigabit Ethernet and Fibre Channel compatibility

How to use

Insert the SFP+ transceiver into an available SFP+ slot on a compatible switch, server NIC or storage device with the connector latch aligned. Connect the multimode fiber patch cable with the appropriate duplex connector to the module’s optical port. Ensure the host device is configured for a 10 Gbit/s optical interface and verify link status using the device management interface. For replacement, remove the module by disengaging the latch and pulling it straight out, then install the new module following the same alignment procedure.

Recommendations

Use high-quality multimode fiber and compatible LC duplex patch cords rated for 850 nm operation. Verify firmware and transceiver compatibility with the host device vendor to ensure proper link negotiation and optical power levels. Avoid touching the optical connector endfaces and keep protective dust caps on when the module is not in use. Follow data center handling practices to minimize electrostatic discharge and mechanical stress during installation.
