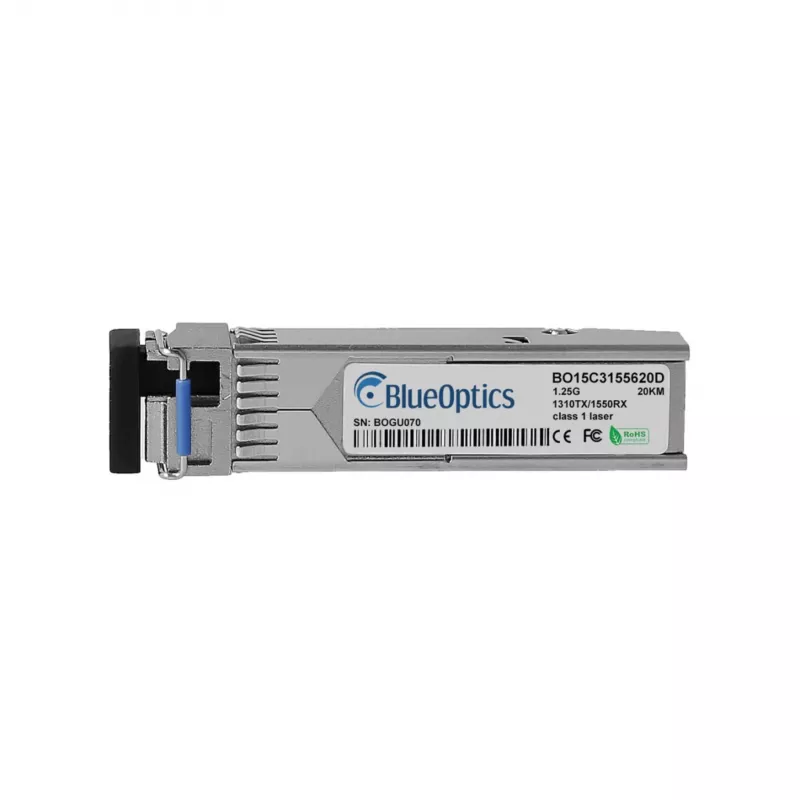

BlueOptics SFP-BX1310-E Compatible SFP BO15C3155620D BiDi Transceiver 1.25 Gbps 20 km LC SMF

The BlueOptics SFP-BX1310-E compatible SFP BO15C3155620D is a high-performance, cost-effective BiDi (Bi-Directional) SFP transceiver designed for Gigabit Ethernet applications. It operates on a single strand of single-mode fiber, transmitting at 1310 nm and receiving at 1550 nm, with a reach of up to 20 km. This module is MSA compliant and supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring.

Advantages

This transceiver offers a reliable and affordable solution for extending network reach without the need for additional fiber infrastructure. Its BiDi technology doubles fiber utilization, reducing cabling costs. The hot-pluggable SFP form factor ensures easy installation and maintenance, while DDM provides valuable insights into link health.

Suitable for

• Gigabit Ethernet networks requiring single-fiber operation
• Metro and access networks up to 20 km
• Enterprise and data center uplinks
• FTTx and PON applications

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: Tx 1310 nm / Rx 1550 nm
• Max Distance: 20 km
• Connector: LC Simplex
• Fiber Type: Single-Mode (OS2)
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Supply: 3.3V
• Compliance: MSA, IEEE 802.3z

Recommendations

For optimal performance, pair this transceiver with a complementary BiDi module at the other end (e.g., BlueOptics SFP-BX1550-E). Ensure your switch or media converter supports SFP modules and DDM if required. This module is compatible with major brands when used with appropriate coding.
