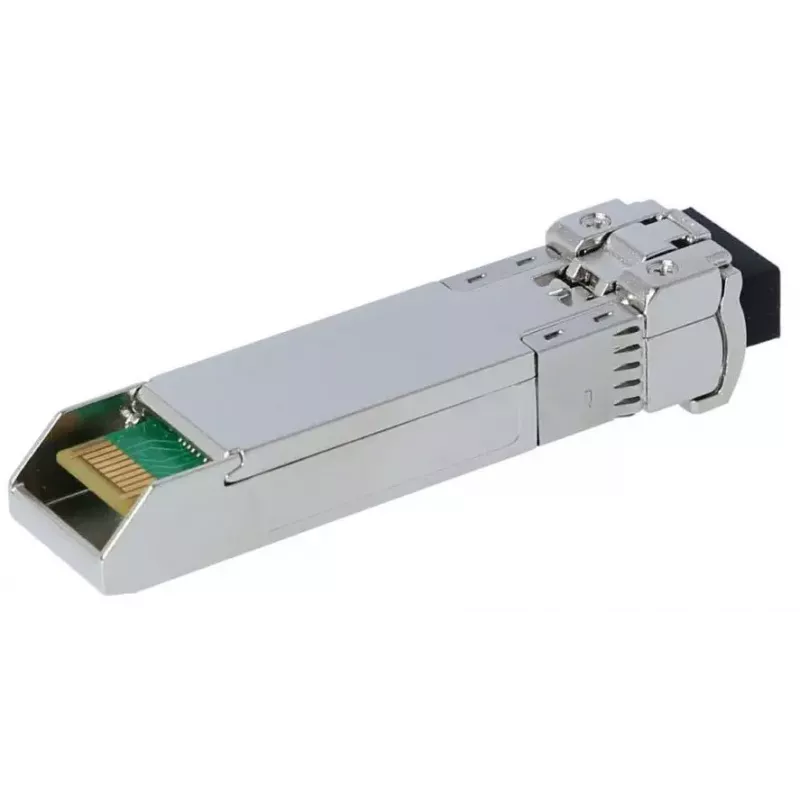

BlueOptics SFP-10G-SR-CM-BO network transceiver module Fiber optic SFP+ 300m

The BlueOptics SFP-10G-SR-CM-BO is a fiber optic SFP+ transceiver module engineered for 10G data transmission over multimode fiber. It features an LC duplex connector, operates with 850 nm optics for both transmitter and receiver, and supports a maximum link distance of up to 300 meters. The transceiver comes in an aluminium housing and weighs approximately 20 grams, making it compact and suitable for installation in compatible SFP+ ports on switches, routers and storage systems.

Advantages

This SFP+ module follows MSA (Multi-Source Agreement) form factor standards and provides 10GBASE-SR performance for short-range high-speed links. The module is designed to be interoperable with major hardware platforms that support the matching SFP+ type and offers Digital Diagnostic Monitoring (DDM/DOM) capability for live monitoring of supply voltage, laser bias current, optical output and input power, and temperature when the host device supports it. The aluminium casing contributes to durability while the lightweight design simplifies handling and installation.

Suitable for

Key specifications

How to use

Insert the module into a compatible SFP+ slot on the host device until it clicks into place, and secure any retention mechanism provided by the chassis. Connect LC duplex multimode fiber patch cords to the module, ensuring correct polarity for transmit and receive channels. Verify that the host device recognizes the transceiver and that the interface is configured for 10G operation. If DDM/DOM data is required, enable and read the diagnostics through the host management interface, provided the platform supports DDM.

Recommendations

Use high-quality multimode fiber and properly rated LC duplex patch cords to achieve the specified 300 m reach. Confirm compatibility with the host device firmware and enable DDM only if the host supports SFF-8472 diagnostic access. Avoid excessive bending or strain on fiber cables and follow standard ESD precautions when handling the module.
