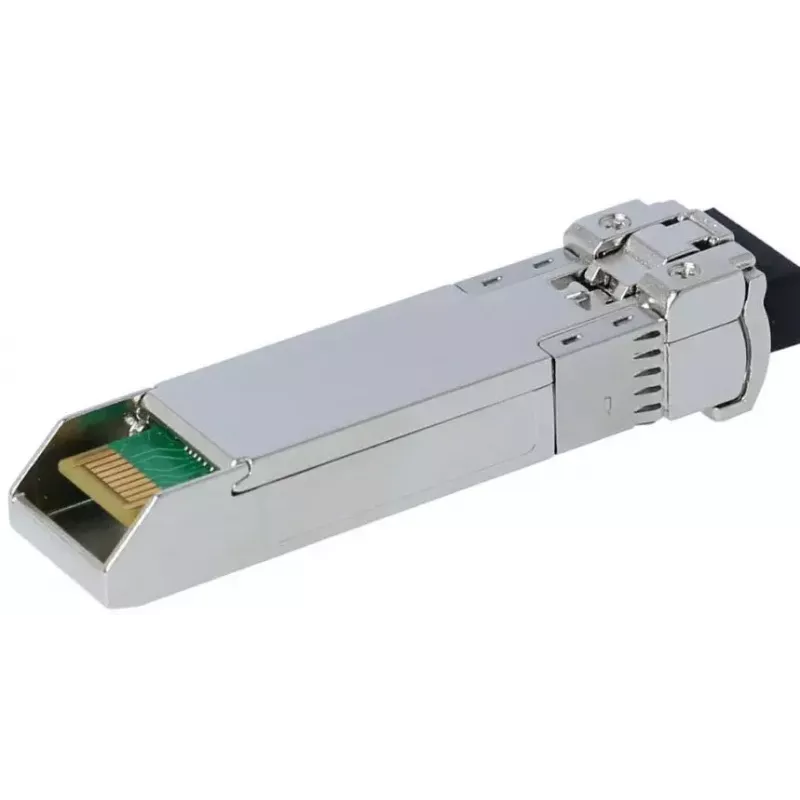

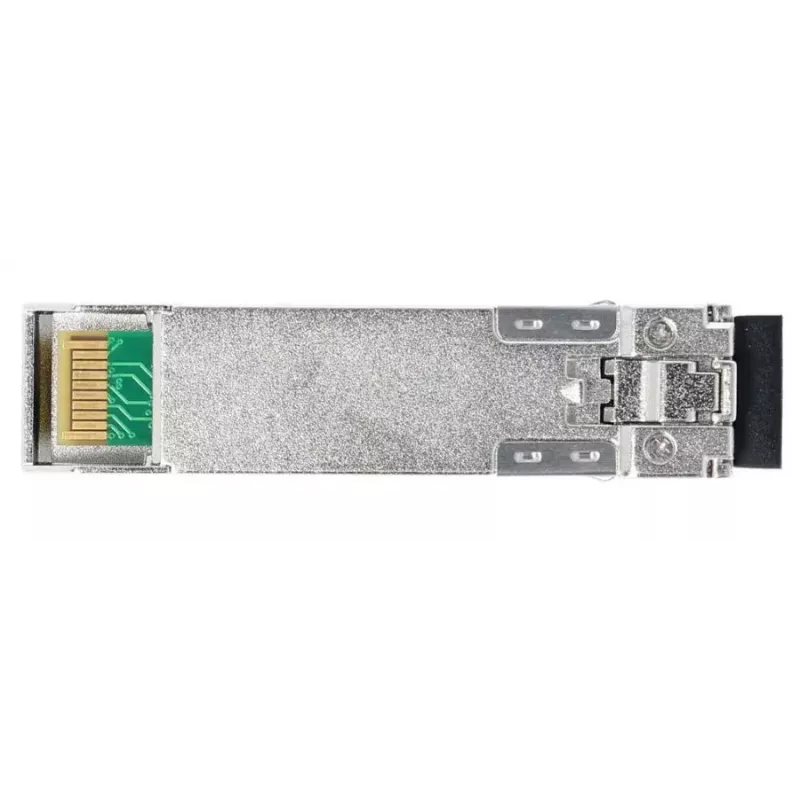

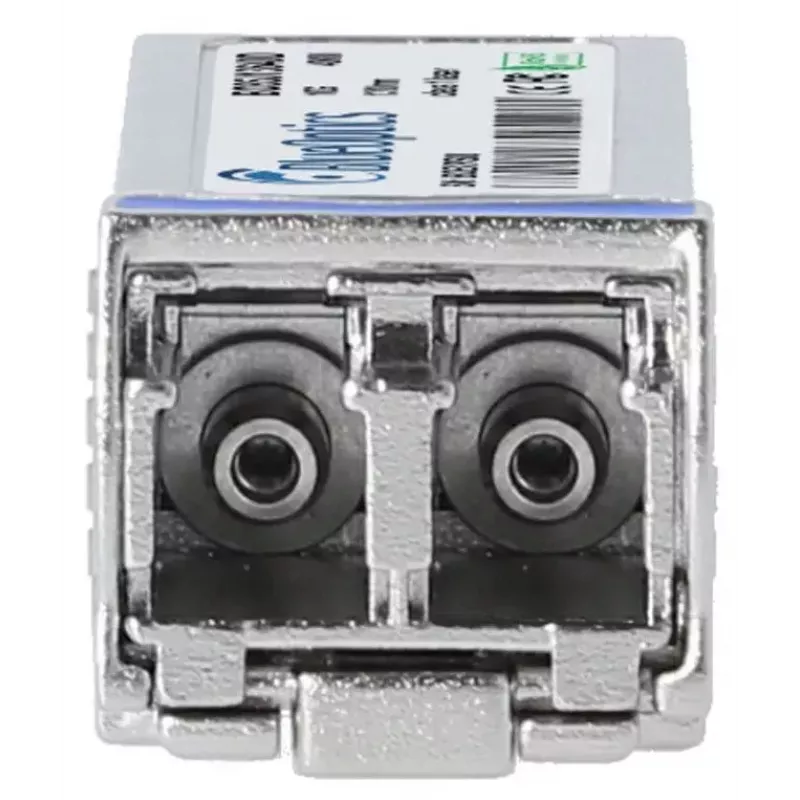

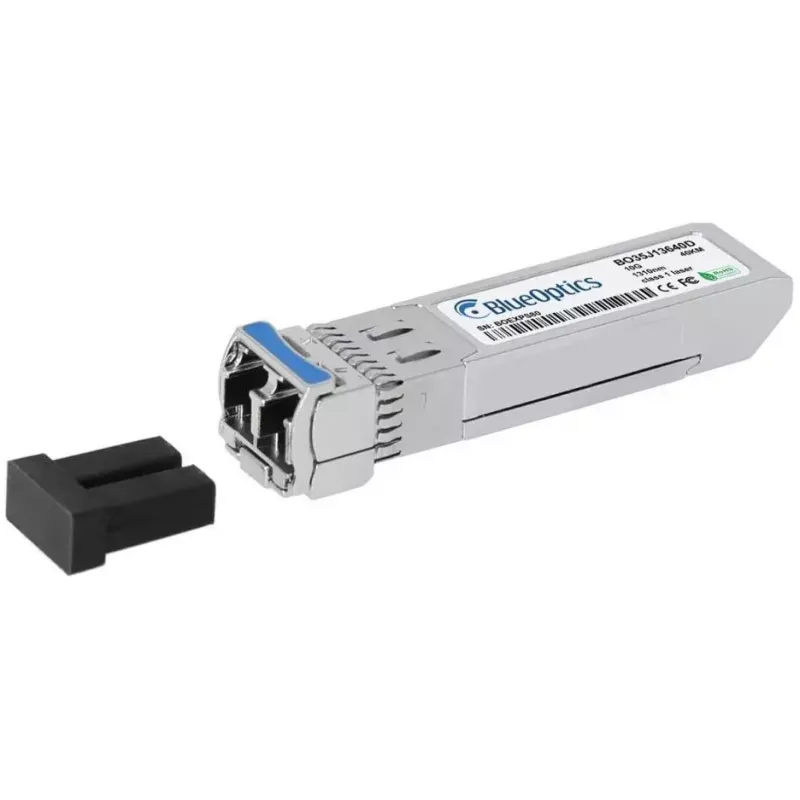

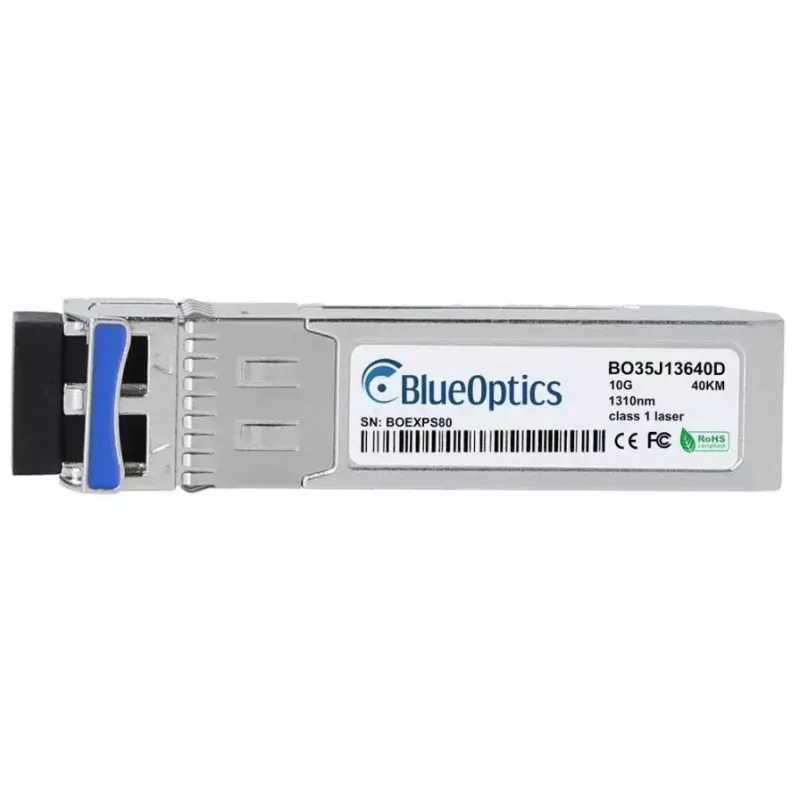

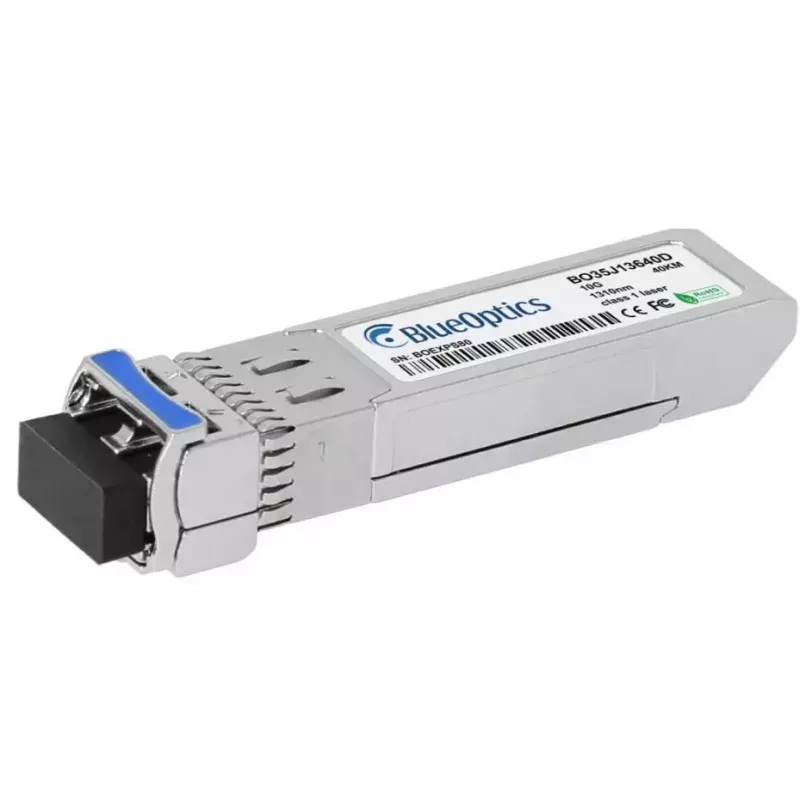

BlueOptics SFP-10G-ER-CS-BO network transceiver module Fiber optic 10000 Mbit/s SFP+

The BlueOptics SFP-10G-ER-CS-BO is a fiber optic SFP+ transceiver module engineered for 10 Gbit/s data links. Housed in metal and compliant with RoHS standards, this compact module supports high-speed optical transmission in network equipment that accepts SFP+ form-factor modules. With a lightweight construction and standard SFP+ interface, it is suitable for long-range optical connections where reliable 10 Gbit/s throughput is required.

Advantages

The metal housing ensures mechanical durability and improved heat dissipation compared with plastic alternatives. Compliance with RoHS indicates the module meets common environmental and material restrictions. Compatibility with the SFP+ interface provides plug-and-play replacement or upgrade options for compatible switches, routers and transceivers while the 10 Gbit/s transfer capability supports high-bandwidth applications.

Suitable for

• 10 Gbit/s optical uplinks between switches and routers
• Data center server-to-switch connections
• Long-reach fiber links in enterprise networks (SFP+ compatible)
• Optical backbone segments requiring SFP+ transceivers

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Form factor: SFP+ optical transceiver
• Housing: metal for improved durability and thermal performance
• Weight: approximately 0.02 kg
• Environmental compliance: RoHS

How to use

Install the BlueOptics SFP-10G-ER-CS-BO into an SFP+ port on compatible network equipment following standard hot-pluggable transceiver procedures. Ensure the device firmware or operating system recognizes SFP+ modules and configure the network interface for 10 Gbit/s operation as required. Connect the appropriate single-mode or multimode fiber patch cables to the transceiver optical port, taking care to avoid contamination of connector endfaces. Monitor link status through the host device to verify a stable connection.

Recommendations

Handle the transceiver by its metal housing and use protective caps on the optical ports when the module is not in use. Clean fiber connectors before insertion and verify compatibility with the host device's supported SFP+ modules. For optimal performance in long-reach installations, use suitable single-mode fiber and adhere to installed fiber link loss budgets.
