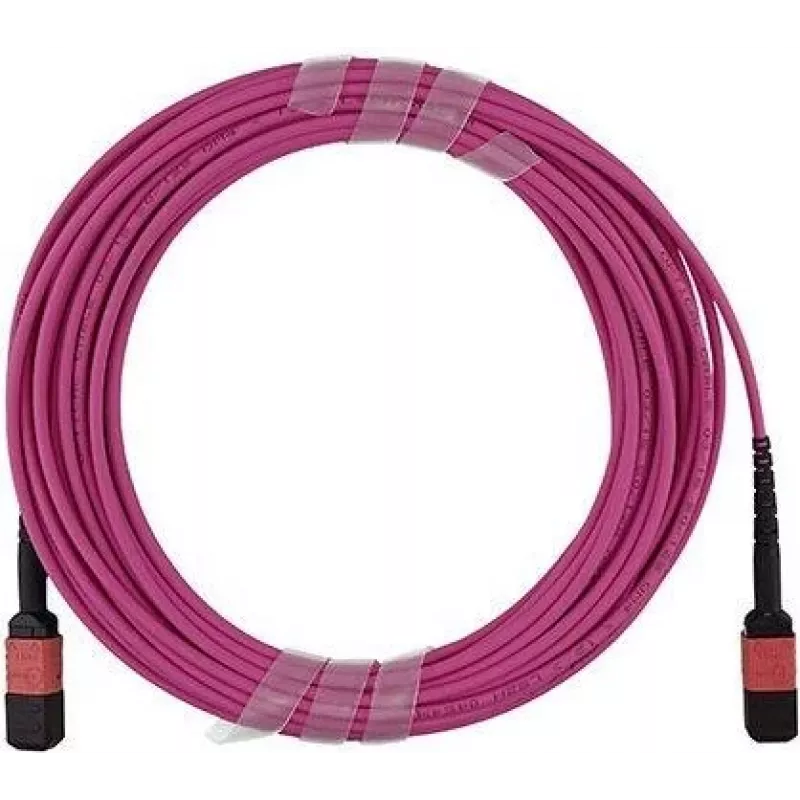

BlueOptics MPO/UPC to MPO/UPC OM4 Multimode Fiber Trunk Cable, 12 Fibers, Type B Polarity, 5m, LSZH, Infortrend Compatible

High-density 12-fiber MPO/UPC to MPO/UPC trunk cable engineered for parallel optic transmission in data centers and enterprise networks. OM4 multimode fiber delivers extended reach at 10G/40G/100G speeds, while Type B polarity ensures correct lane mapping in multi-lane transceiver links. The 5-meter LSZH jacket meets strict fire safety regulations, and the cable is fully compatible with Infortrend storage systems.

Advantages

OM4 laser-optimized fiber provides 4700 MHz·km bandwidth at 850nm, supporting 40G and 100G Ethernet up to 150 meters. MPO connectors with low insertion loss (≤0.35 dB typical) guarantee signal integrity across all 12 fibers. Type B (cross-over) polarity simplifies deployment in parallel optics, eliminating the need for complex polarity management. LSZH jacket emits low smoke and zero halogen, making it safe for enclosed spaces. Factory-terminated and tested, this trunk cable reduces installation time and eliminates field termination errors.

Suitable for

• 40G SR4 and 100G SR4 parallel optic links
• High-density fiber patching in data centers
• Infortrend storage area networks (SAN)
• Backbone cabling between MPO cassettes or panels
• Environments requiring LSZH-rated cabling

Key specifications

• Connector A: MPO/UPC Male
• Connector B: MPO/UPC Male
• Fiber Type: Multimode OM4
• Fiber Count: 12
• Cable Length: 5 meters
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH
• Insertion Loss: ≤ 0.35 dB typical
• Return Loss: ≥ 20 dB
• Cable Diameter: 3.0 mm
• Operating Temperature: -10°C to +70°C

Recommendations

Ideal for high-density parallel optic deployments where space, performance, and safety are critical. Pair with MPO cassettes or QSFP transceivers for seamless 40G/100G connectivity.
