BlueOptics MPO/UPC to MPO/UPC Multimode Trunk Cable 10 m OM3 G50/125µm 12-core LSZH 3.0 mm Type B (470-ABPV-BO)

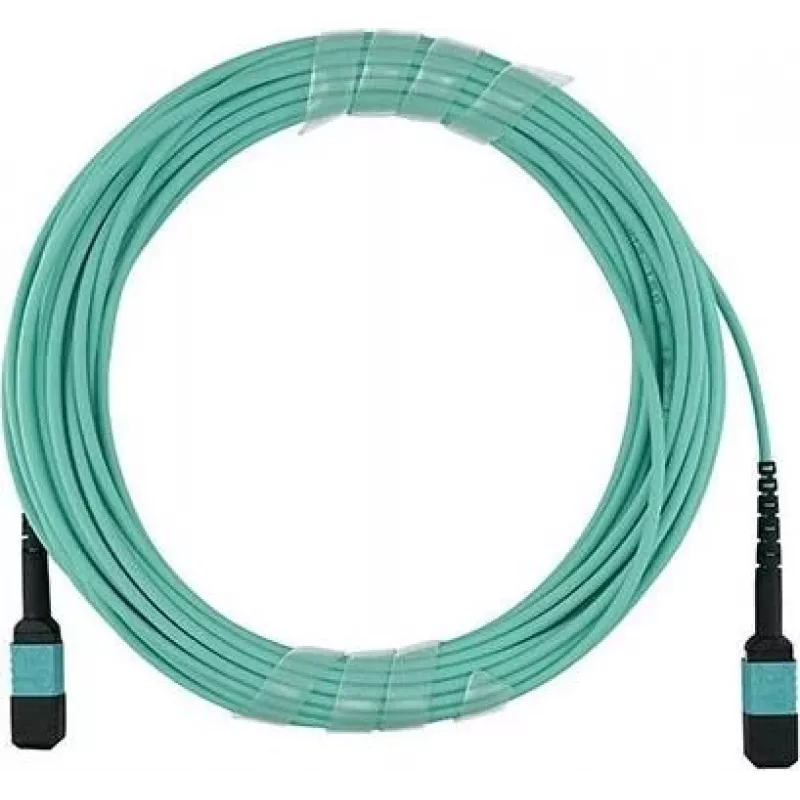

BlueOptics MPO/UPC to MPO/UPC multimode trunk cable, 10 m length, designed for OM3 50/125 µm (G50) fiber. The cable features 12 cores and Type B polarity, with an outer diameter of 3.0 mm and an LSZH aqua jacket. Both ends terminate in MPO/UPC connectors without pins. A factory test report is supplied, confirming optical performance suitable for high-speed data center and backbone interconnect applications.

Advantages

This multimode trunk cable supports OM3 performance characteristics for 50/125 µm fibers, enabling reliable short-range high-bandwidth links. The 12-core MPO/UPC termination and Type B polarity allow straightforward parallel transmission and compatibility with modern MPO-based patch panels and cassettes. The LSZH jacket reduces smoke and toxic emission risk in confined spaces, while the 3.0 mm diameter balances flexibility and mechanical protection for routing in racks and cable trays. Inclusion of a factory test report provides traceable verification of insertion loss and continuity.

Suitable for

Key specifications

How to use

Inspect both MPO/UPC connectors and the cable jacket for visible damage before installation. Align the MPO key orientation according to Type B polarity requirements and insert connectors into compatible MPO adapters or ports without forcing. Route the cable along rack channels or trays maintaining manufacturer's minimum bend radius for OM3 multimode fiber to avoid excess bending stress. Secure the trunk cable with appropriate cable management accessories and verify continuity and insertion loss at endpoints using suitable test equipment if additional verification is required.
