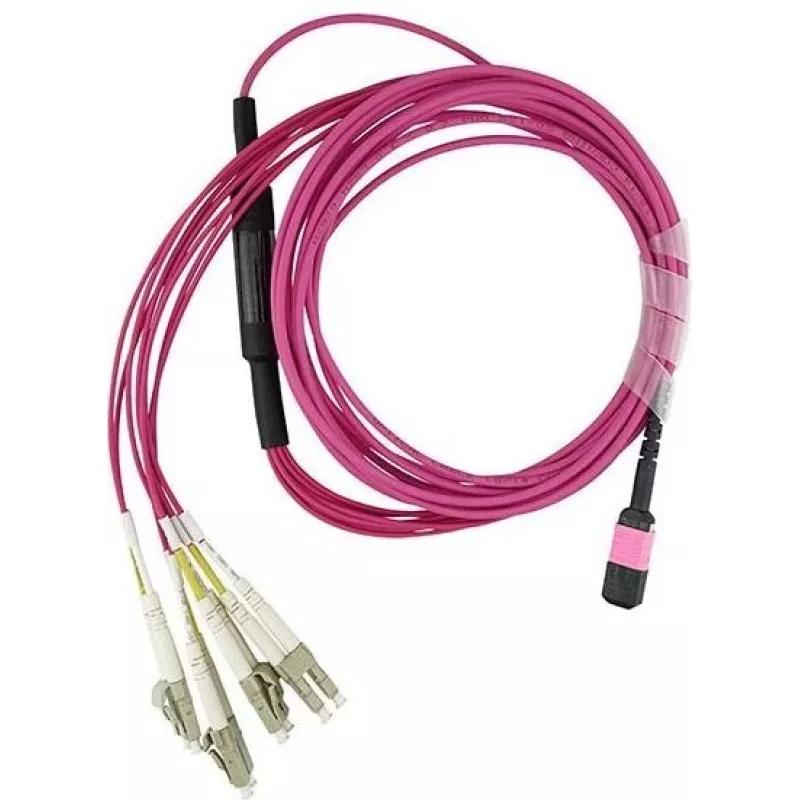

BlueOptics MPO/UPC to 4x Duplex LC/UPC Breakout Patch Cable 2m, Multimode G50/125µm OM4, 3.0mm LSZH, 8‑core, MPO without pins, with test report

This BlueOptics MPO/UPC to 4x Duplex LC/UPC breakout patch cable converts a single MPO trunk into four duplex LC/UPC terminations. The 2 m multimode OM4 cable uses G50/125 µm fiber with an 8-core construction and a 3.0 mm LSZH jacket in magenta. The MPO connector is supplied without pins and the product is delivered with a measurement/test report. It is designed for high-density multimode links in data centers, server racks and optical patch panels where orderly fanout from MPO trunks to LC duplex ports is required.

Advantages

The cable provides a compact and standardized method to break out an MPO trunk into four LC duplex pairs, supporting high-density port mapping and minimizing panel space. OM4 multimode fiber (G50/125 µm) enables increased modal bandwidth for short- to medium-reach applications. The 3.0 mm LSZH outer jacket reduces smoke and toxic gas emission in case of fire and the included test report documents optical performance parameters for installation verification. The MPO connector is specified without pins to match MPO/APC-less chassis and cassette interfaces that require pinless trunk mating.

Suitable for

Key specifications

How to use

Route the 2 m breakout cable from the MPO trunk to the target patch panel or cassette, ensuring bend radius limits are observed for multimode fiber. Align the MPO connector with the corresponding MPO receptacle and engage until the connector latches. Plug each duplex LC/UPC pair into the appropriate LC ports on the patch panel, transceiver or device, maintaining correct polarity for transmit/receive mapping. Verify connections using the supplied measurement/test report and, if required, run an additional optical test after installation to confirm loss and continuity.

Recommendations

Maintain manufacturer-recommended bend radius and avoid tight cable ties; store and handle the MPO connector with its protective dust cap until final mating. Use the included test report to compare measured insertion loss against system requirements and repeat verification after rack or module changes.
