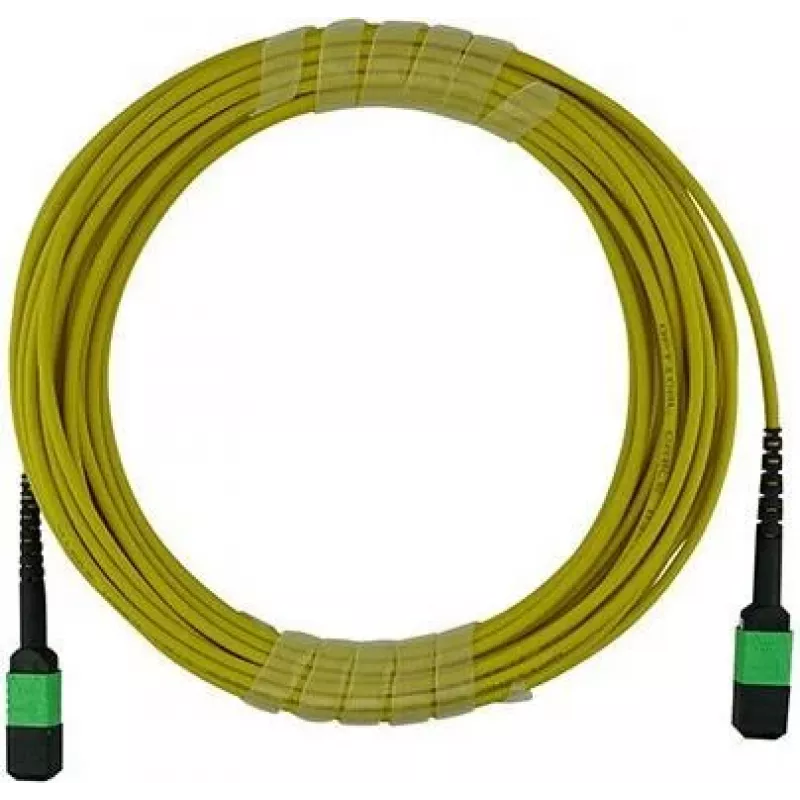

BlueOptics MPO Trunk Cable Singlemode 12 Fibers 7.5 Meter Type B

The BlueOptics MPO Trunk Cable is a high-performance fiber optic trunk cable designed for data center interconnects, SAN, LAN, and telecommunications applications. With 12 singlemode fibers and a length of 7.5 meters, this Type B polarity cable ensures reliable and efficient connectivity for high-speed networks.

Advantages

This MPO trunk cable offers low insertion loss (max 0.35 dB) and high return loss (min 60 dB), ensuring excellent signal integrity. The LSZH jacket provides safety in confined spaces, and the yellow color allows for easy identification. The MPO/APC connectors with zirconia ceramic ferrules guarantee durability and stable performance.

Suitable for

• Data center interconnects
• Storage area networks (SAN)
• Local area networks (LAN)
• Telecommunications infrastructure

Key specifications

• Cable Type: MPO Trunk Cable
• Fiber Type: Singlemode OS2
• Number of Fibers: 12
• Length: 7.5 meters
• Connectors: MPO/APC to MPO/APC
• Polarity: Type B
• Jacket: LSZH, Yellow
• Insertion Loss (Max): 0.35 dB
• Return Loss (Min): 60 dB
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC-61754-7

Recommendations

For optimal performance, ensure proper handling and installation of MPO connectors. This cable is ideal for high-density fiber environments where space and reliability are critical.
