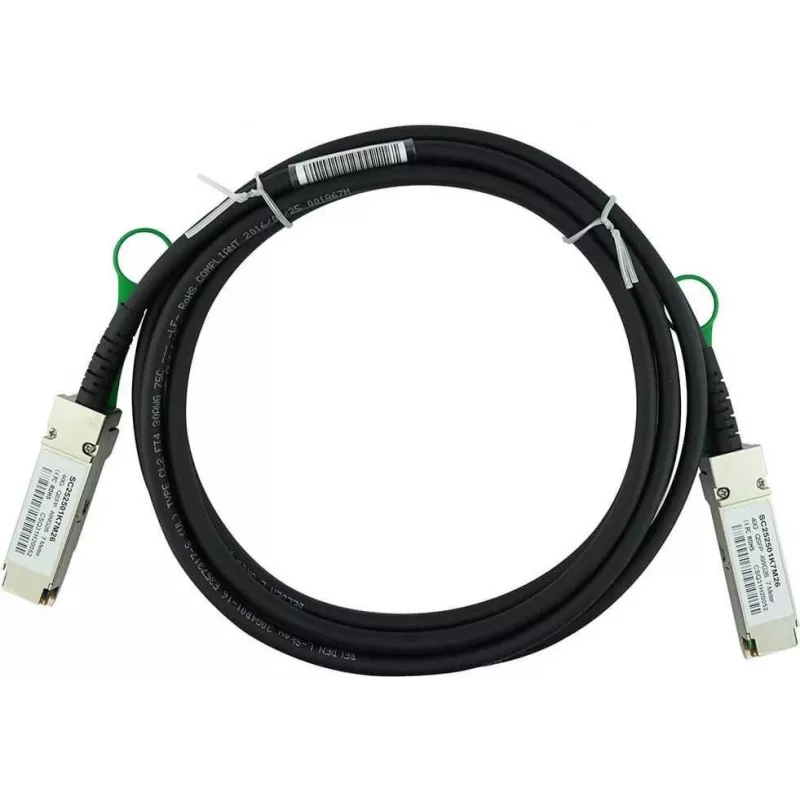

BlueOptics MikroTik Q+DA0002 Compatible BlueLAN QSFP Direct Attach Copper Cable, 40GBASE-CR4, Ethernet/Infiniband QDR, 30AWG, 2 Meter (Q+DA0002-BL)

The BlueOptics Q+DA0002-BL is a high-performance, MikroTik Q+DA0002 compatible Direct Attach Copper (DAC) cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. This passive copper cable provides a cost-effective, low-latency solution for short-range interconnects within data centers and enterprise networks.

Advantages

This BlueLAN DAC cable ensures reliable, high-speed connectivity with minimal power consumption. Its passive design eliminates the need for external power, reducing overall system cost and complexity. The 30 AWG construction offers flexibility for easy routing while maintaining signal integrity over the 2-meter length.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network aggregation
• Storage area networks (SAN)
• Telecommunications equipment

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 2 Meters
• Wire Gauge: 30 AWG
• Cable Type: Passive Copper
• Compatibility: MikroTik Q+DA0002 (Compatible)
• Supported Protocols: Ethernet, InfiniBand QDR
• Form Factor: QSFP (Quad Small Form-factor Pluggable)
• Hot Swappable: Yes
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP ports. This cable is ideal for short-distance, high-bandwidth links within racks or between adjacent racks.
