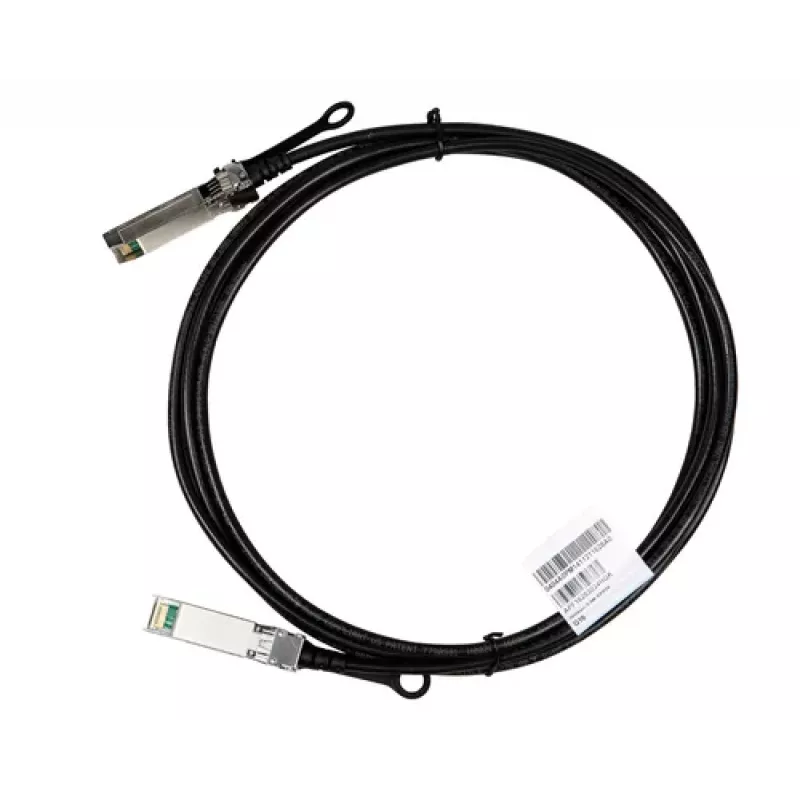

HPE X240 Direct Attach Copper Cable SFP28 to SFP28 3m

The HPE X240 Direct Attach Copper Cable (DAC) is a high-performance, passive twinax cable designed for 25 Gbps data center interconnects. It provides a cost-effective, low-latency solution for server-to-switch and switch-to-switch connections within HPE networking environments.

Advantages

This cable offers reliable 25 Gbps connectivity with minimal power consumption, as it requires no external power. Its passive design ensures low signal loss and high signal integrity, making it ideal for high-density deployments. The SFP28 connectors are hot-swappable, simplifying installation and maintenance.

Suitable for

• Connecting servers to HPE FlexFabric or Aruba switches
• High-speed data center top-of-rack and end-of-row cabling
• Short-distance, high-bandwidth links up to 3 meters

Key specifications

• Product Type: Direct Attach Copper Cable (DAC)
• Connector Type: SFP28 to SFP28
• Data Transfer Rate: 25 Gbps
• Cable Length: 3 m (9.84 ft)
• Technology: Twinax Passive
• Conductor Material: Copper
• AWG: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Colour: Black
• Hot-Swappable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, use this cable with HPE networking equipment that supports SFP28 25 Gbps ports. Ensure proper cable management to maintain airflow and avoid bending beyond the minimum bend radius.
