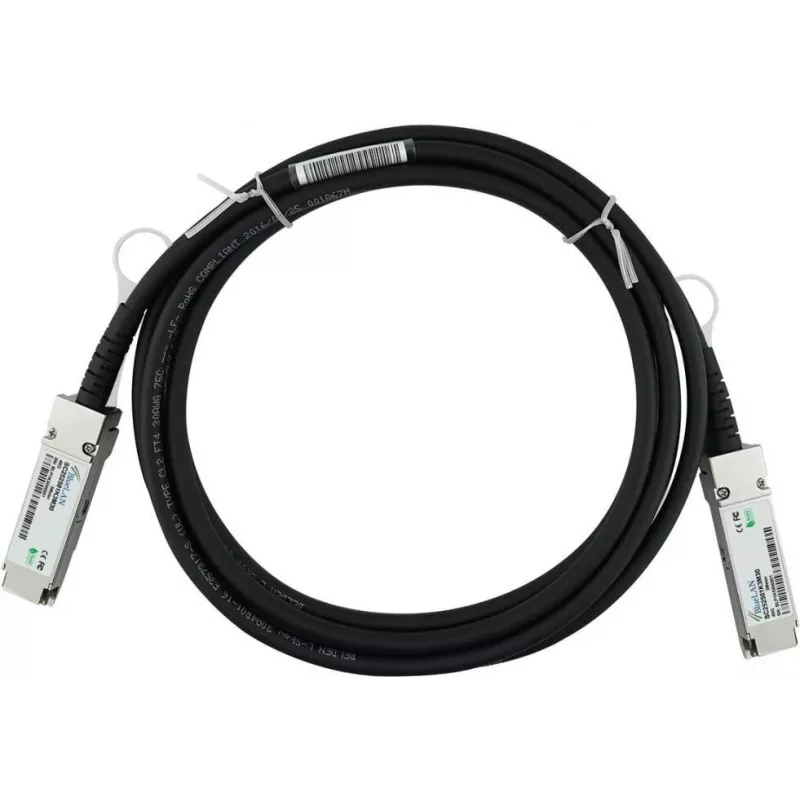

BlueOptics MC2206310-0005 Compatible BlueLAN QSFP Direct Attach Copper Cable, 40GBASE-CR4, 0.5m, 30AWG

The BlueOptics MC2206310-0005 compatible BlueLAN QSFP Direct Attach Copper (DAC) cable is a high-performance, passive copper cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. It provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This DAC cable offers reliable, low-latency connectivity with minimal power consumption compared to optical transceivers. Its passive design ensures plug-and-play operation without the need for external power. The 30 AWG construction provides flexibility for easy cable management in dense racks.

Suitable for

• Data center top-of-rack to server/storage connections
• High-performance computing clusters
• Network switch to switch interconnects
• 40GBASE-CR4 Ethernet and InfiniBand QDR networks

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• InfiniBand Standard: QDR (Quad Data Rate)
• Cable Length: 0.5 Meter
• Wire Gauge: 30 AWG
• Compatibility: NVIDIA MC2206310-0005
• Cable Category: Passive
• Hot-Swappable: Yes
• Number of Lanes: 4 (4x 10 Gbps)
• Impedance: 100 Ohm
• Voltage Supply: 3.3 V

Recommendations

For optimal performance, ensure your network equipment supports QSFP+ 40GBASE-CR4 or InfiniBand QDR standards. This cable is ideal for short-distance links up to 0.5 meters within racks or adjacent racks.
