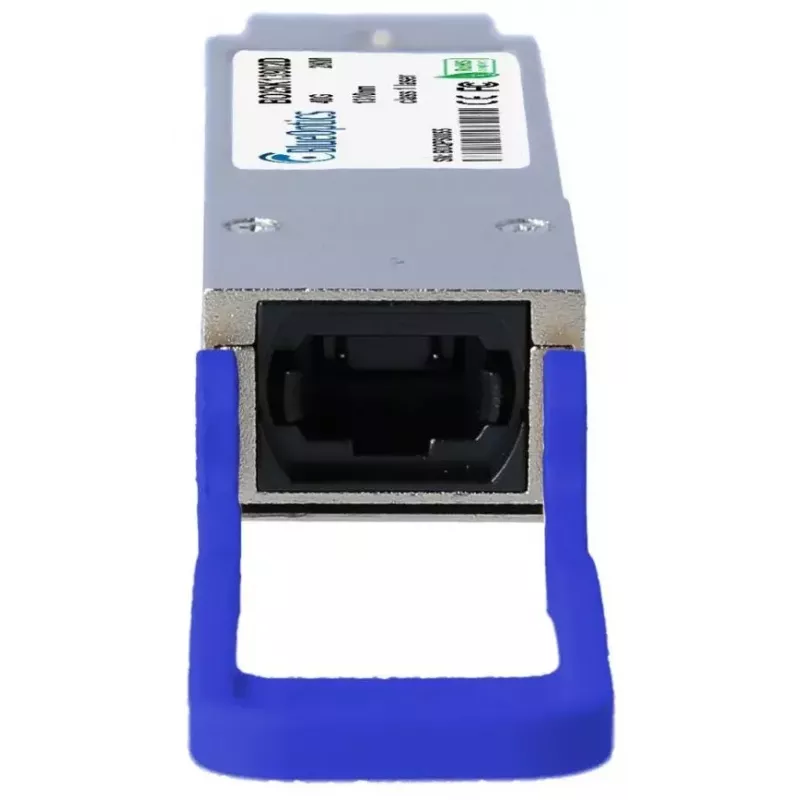

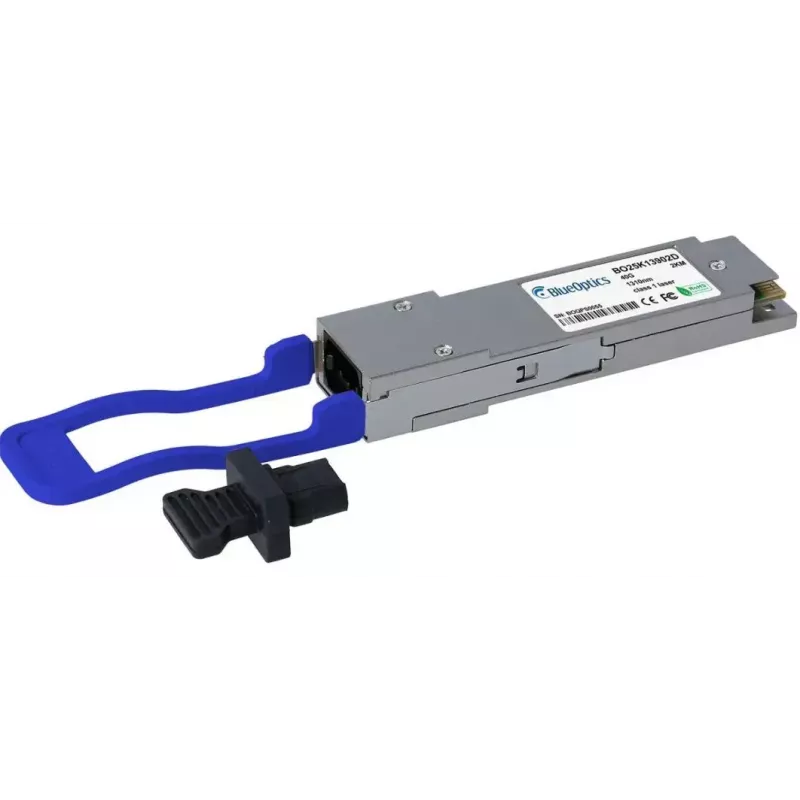

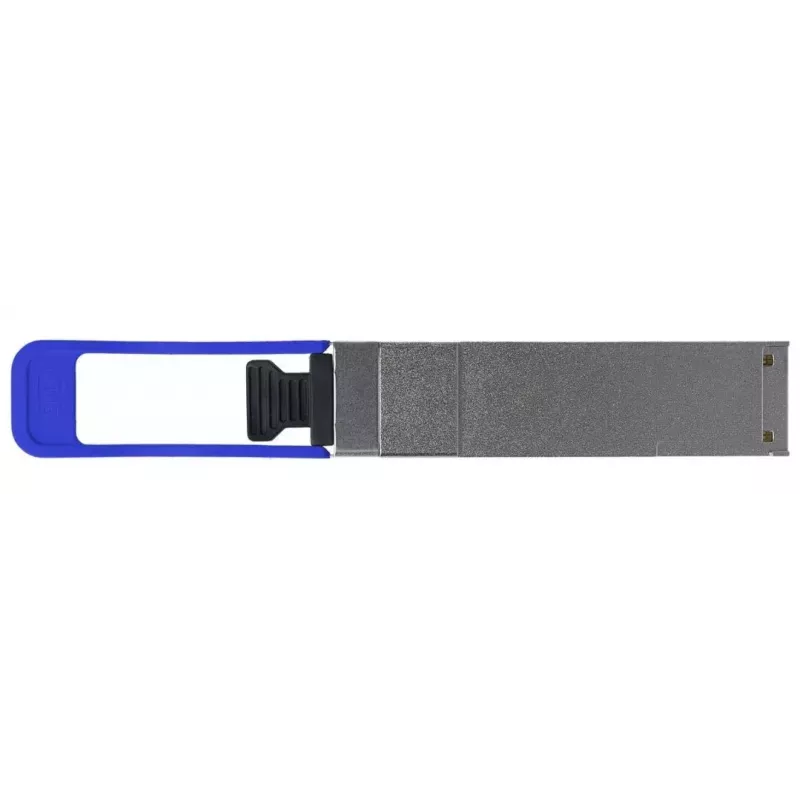

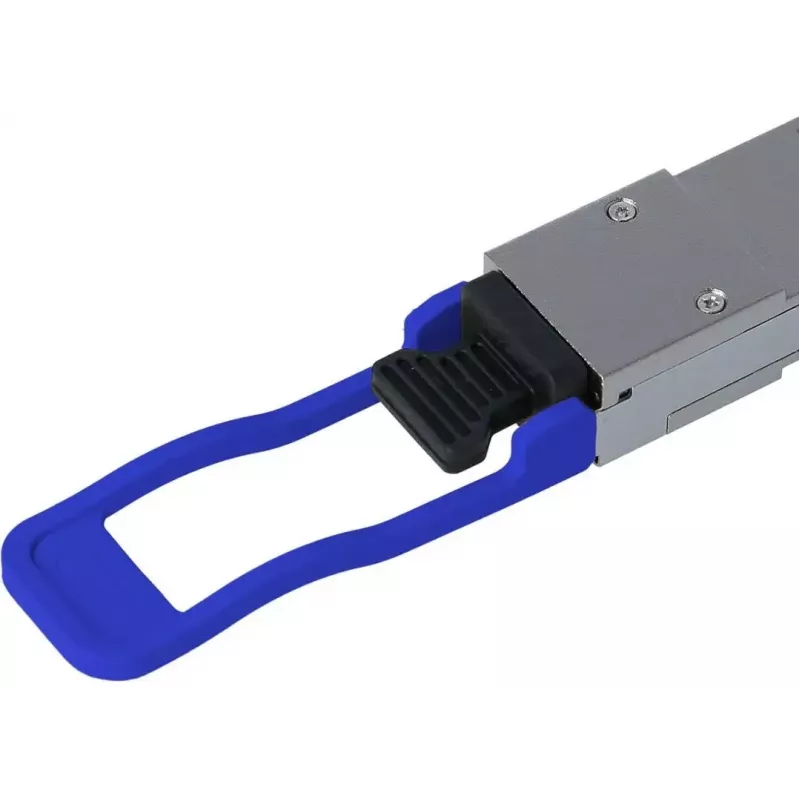

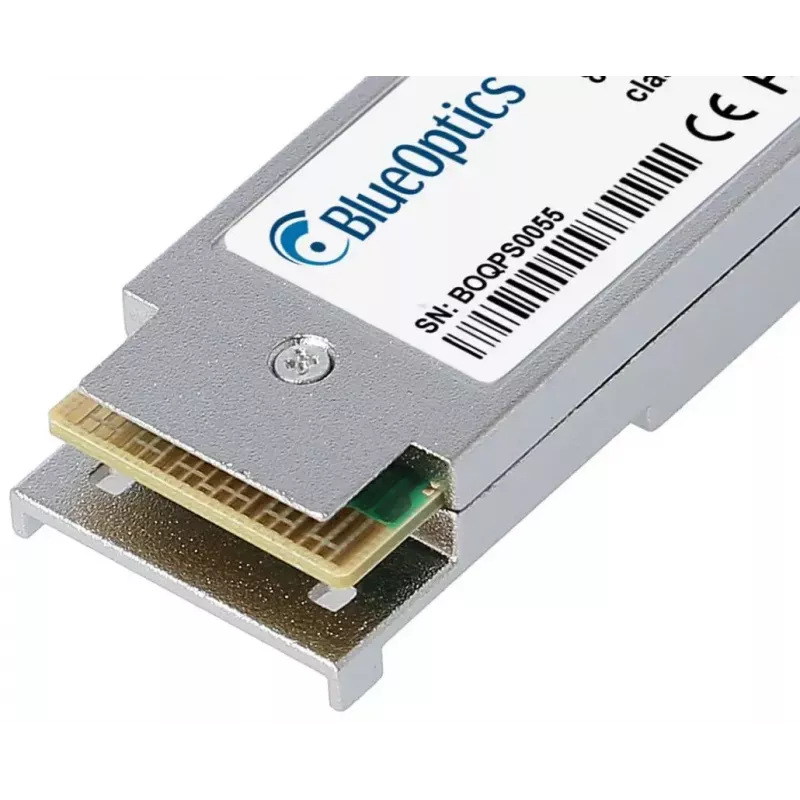

BlueOptics JNP-QSFP-4X10GE-IR-BO network transceiver module Fiber optic QSFP MTP/MPO Aluminium 40g

The BlueOptics JNP-QSFP-4X10GE-IR-BO is a 40G fiber optic QSFP network transceiver module with an MTP/MPO connector and an aluminium housing. Designed for single-mode fiber links, it supports 40G communication using four 10G channels and follows MSA QSFP form-factor conventions to ensure physical compatibility with compatible networking equipment. The module includes both transmitter and receiver optics operating around 1310 nm and is lightweight at approximately 0.04 kg, allowing straightforward installation in data center and enterprise networking environments.

Advantages

This QSFP transceiver provides high-bandwidth data transmission over single-mode fiber with MPO/MTP connectivity and supports established 40G transmission protocols. It incorporates digital diagnostics monitoring (DDM/DOM) functionality for real-time monitoring of supply voltage, laser bias current, output power, received power and temperature where the host device supports these features. Manufactured to industry MSA standards, the module is intended to be compatible with hardware that accepts the corresponding Juniper-compatible QSFP transceiver and is built with components selected for reliable long-term operation.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP transceiver into a compatible QSFP slot on your switch, router or other networking device following the device manufacturer’s hot-plug procedures. Connect an appropriate single-mode MTP/MPO patch cable to the transceiver and to the corresponding port or patch panel. Ensure that the host platform supports the QSFP form factor and required 40G protocol, and verify DDM/DOM availability in the host software if real-time diagnostics are needed. After insertion, confirm link status through the host device interface and monitor optical parameters where supported.

Recommendations

Use single-mode MTP/MPO patch cords of appropriate polarity and maintain clean fiber endfaces to ensure optimal signal quality. Verify compatibility with the target hardware platform and firmware version before deployment, and enable digital diagnostics in the host system if remote monitoring is required. For best long-term performance, observe electrostatic discharge (ESD) precautions during handling and store unused transceivers in protective packaging.
