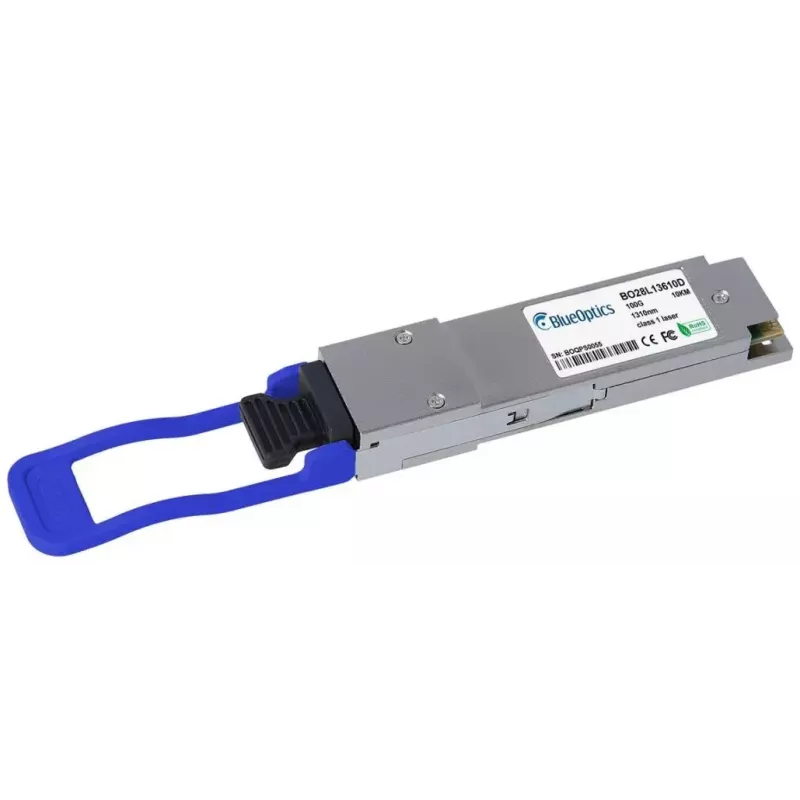

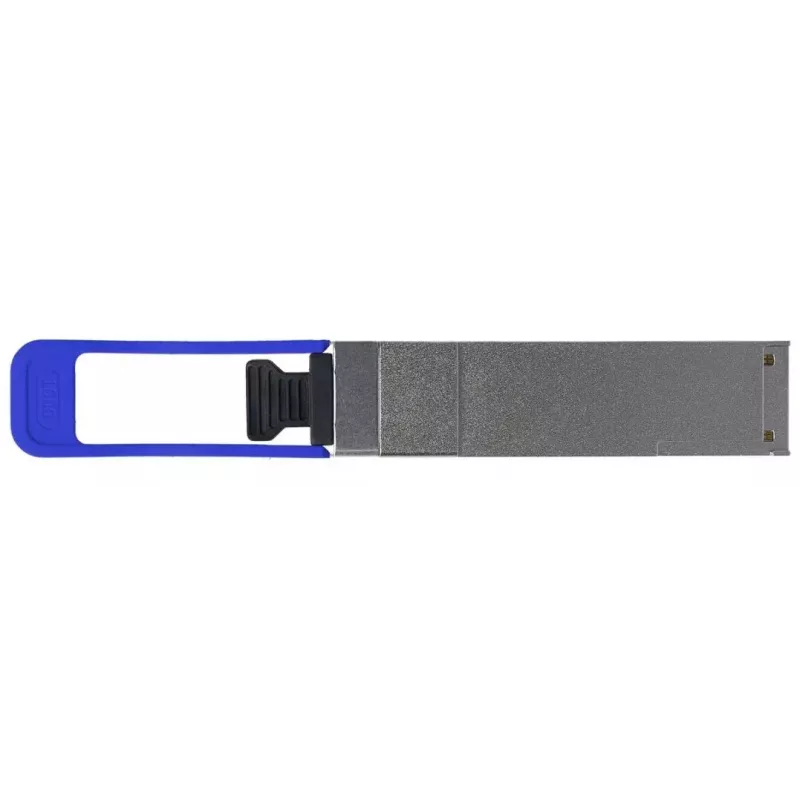

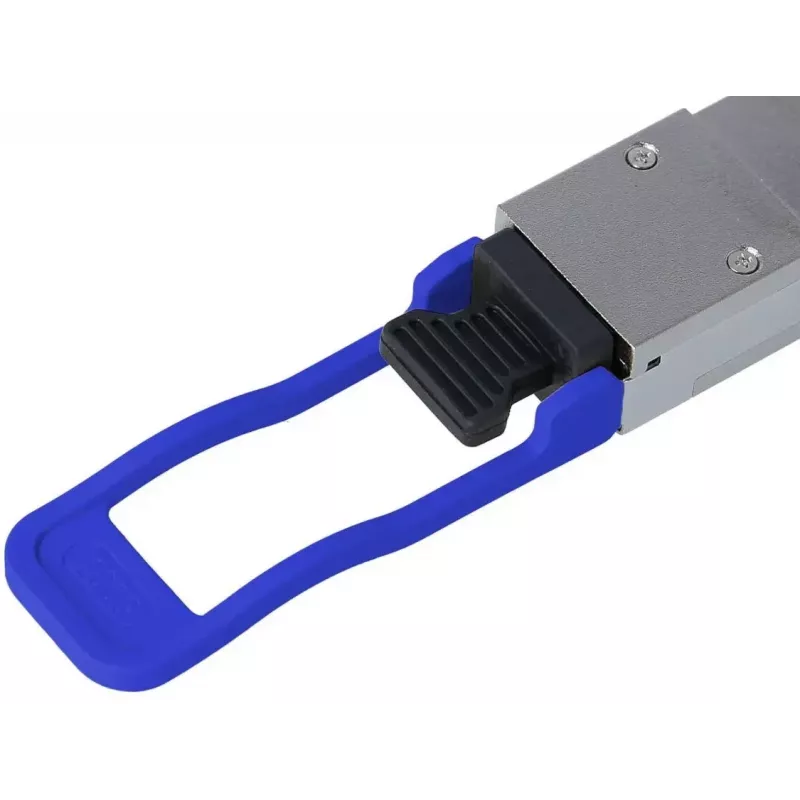

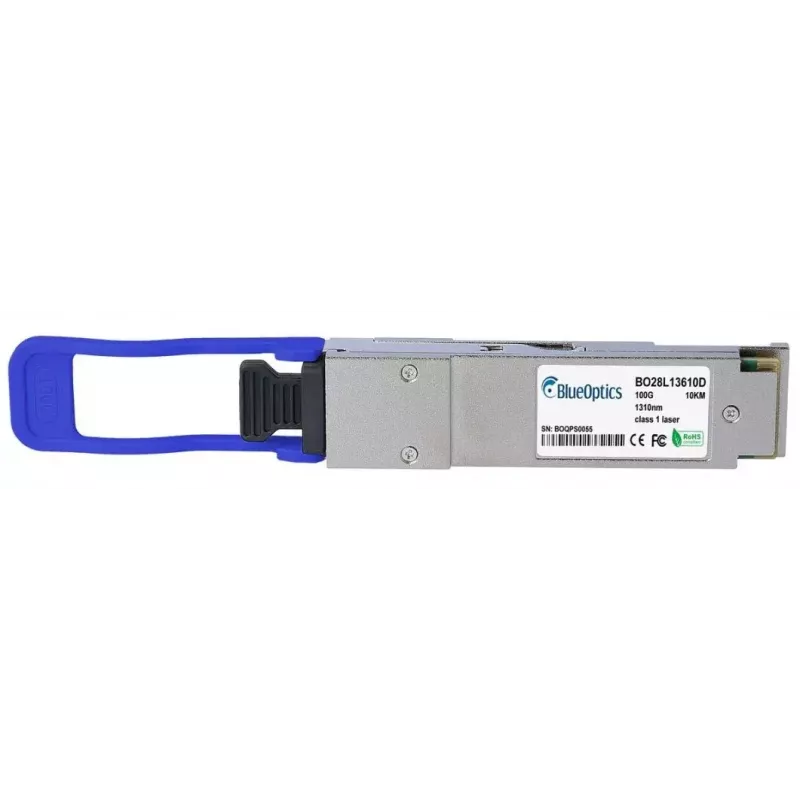

BlueOptics JNP-QSFP-100G-LR4-BO network transceiver module 100000 Mbit/s QSFP28

The BlueOptics JNP-QSFP-100G-LR4-BO is a 100G QSFP28 fiber optic transceiver module designed for single-mode links. It supports data rates up to 100000 Mbit/s and uses an LC duplex connector for optical transmit and receive channels. The module follows QSFP28 / MSA form-factor standards and is compatible with Juniper hardware platforms that support the corresponding 100GBASE-LR4 optical specification. With a lightweight metal housing and a compact QSFP28 interface, the module is intended for installation in switches, routers and other network equipment to extend high-speed fiber connections up to multi-kilometre distances.

Advantages

The module implements 100GBASE-LR4 operation with CWDM-based transmitter and receiver channels to enable 100 Gbit/s optical links over single-mode fiber and supports Digital Diagnostic Monitoring (DDM/DOM) for real-time status of voltage, temperature, laser bias and optical power. Manufactured to MSA mechanical and electrical standards, the transceiver provides interoperability with compatible QSFP28 ports and is built from proven optical and electronic components to deliver long operational lifetime and high availability. Its compact QSFP28 form factor allows hot-pluggable replacement and easy installation in supported devices.

Suitable for

Key specifications

How to use

Install the BlueOptics JNP-QSFP-100G-LR4-BO into a compatible QSFP28 slot on the target device while the device is powered according to the vendor instructions for hot-pluggable modules. Connect LC duplex single-mode fiber patch cords to the transceiver's optical ports, observing correct TX/RX orientation. Verify link status and negotiate the appropriate 100G profile on the host device. If required, enable or query DDM/DOM through the host management interface to monitor temperature, voltage and optical power in real time. Follow the host vendor guidelines for firmware or software compatibility when deploying third-party modules.

Recommendations

Use high-quality single-mode LC patch cords and maintain proper fiber handling to preserve link performance. Confirm that the target Juniper or third-party device firmware supports third-party QSFP28 modules and that DDM access is enabled if remote diagnostics are required. Ensure connectors and patch panels are clean and that fiber routes are within the specified bend radius to achieve the expected reach and stability.
