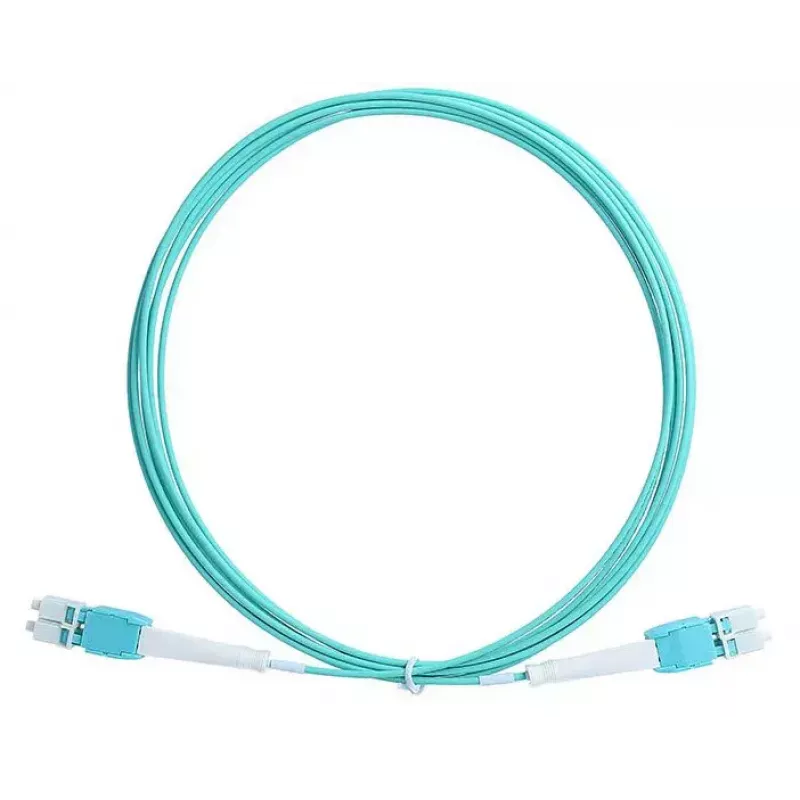

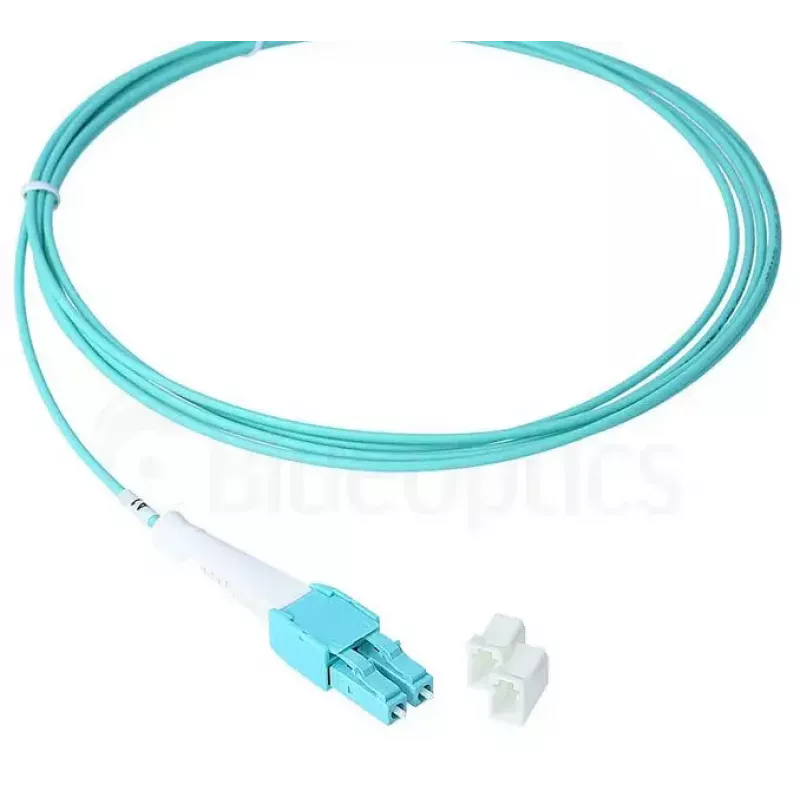

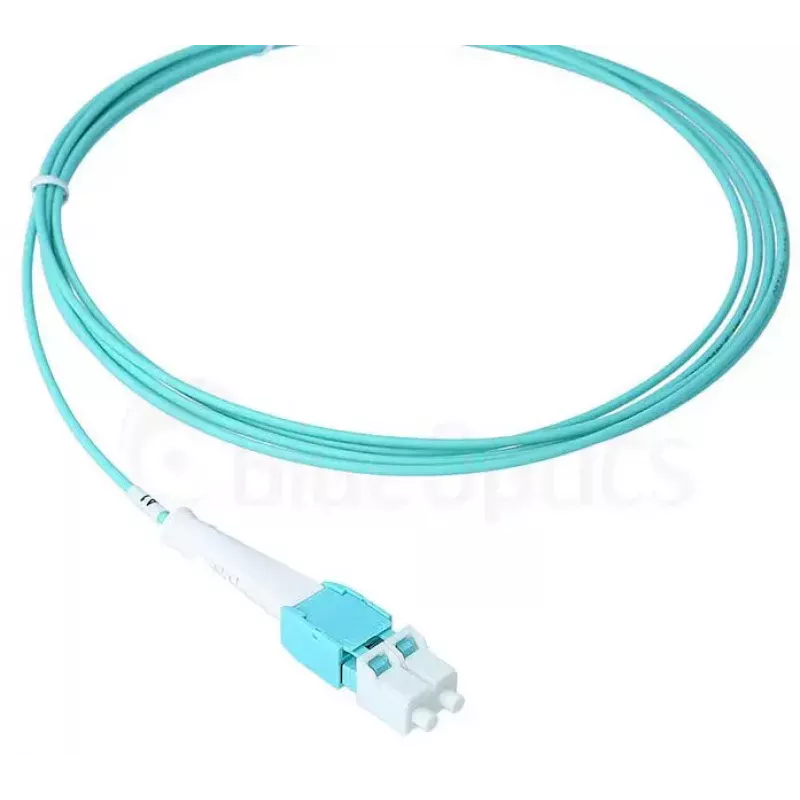

BlueOptics InfiniBand/fibre optic cable 3 m LC LC/APC Aqua

The BlueOptics InfiniBand/fibre optic cable 3 m LC LC/APC Aqua is a 3‑metre multi‑mode OM3 patch cable with LC to LC APC connectors designed for high‑speed, full‑duplex optical links. Constructed with a 125 µm core diameter and laser‑optimized OM3 fiber, the cable is intended for short‑reach data center and networking applications where reliable transmission and low attenuation are required. The aqua jacket and LC APC terminations identify the cable for OM3 systems and polarization‑sensitive installations.

Advantages

This OM3 fiber cable provides low insertion loss and high return loss values suitable for multimode links, supporting reliable high‑bandwidth signal transmission. The cable is manufactured using branded fiber and quality connectors with zirconia ceramic ferrules for consistent mating performance and long connector life. A flame‑retardant LSZH sheath reduces halogen emission and smoke in case of fire, meeting common industrial safety norms. Each cable is tested with interferometry and OTDR and supplied with input loss and return loss measurement data.

Suitable for

• Data center patching between switches, panels and transceivers
• High‑speed InfiniBand or multimode Ethernet links
• Server rack fiber interconnects and short‑reach trunking
• Fiber optic test setups requiring LC‑terminated OM3 cabling

Key specifications

• Fiber type: OM3 (laser‑optimized multimode)
• Length: 3 metres
• Core/cladding diameter: 125 µm
• Connector types: LC to LC with APC polish
• Jacket: LSZH (low smoke zero halogen), aqua color
• Transmission: full duplex multimode

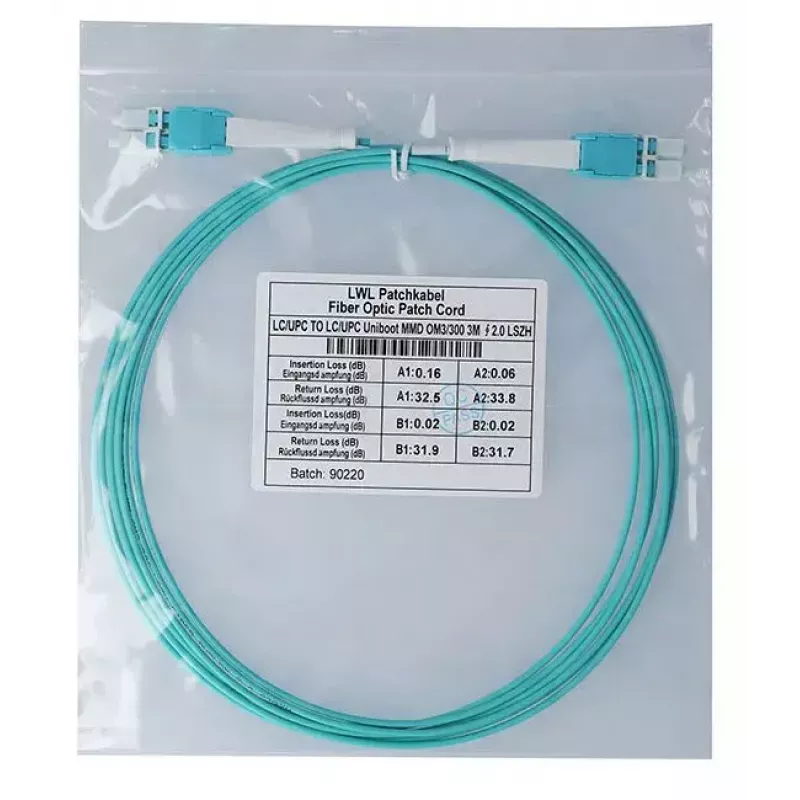

• Tested with interferometer and OTDR; supplied with loss/return loss measurement protocol

How to use

Connect each LC APC connector into corresponding LC ports on patch panels, transceivers or switches, ensuring correct polarity for full‑duplex operation. Route the cable to avoid sharp bends and mechanical strain; maintain the minimum bend radius recommended for multimode fiber to preserve optical performance. If installing in a rack or cabinet, secure the cable with appropriate management clips or trays to prevent stress on connectors.

Recommendations

For best performance, clean LC APC endfaces before mating and verify link loss after installation using an optical power meter or OTDR. Use LSZH cabling in enclosed or public spaces where low smoke and halogen‑free materials are required. Match OM3 fiber and connector polish types across the link to ensure compatible optical performance.
