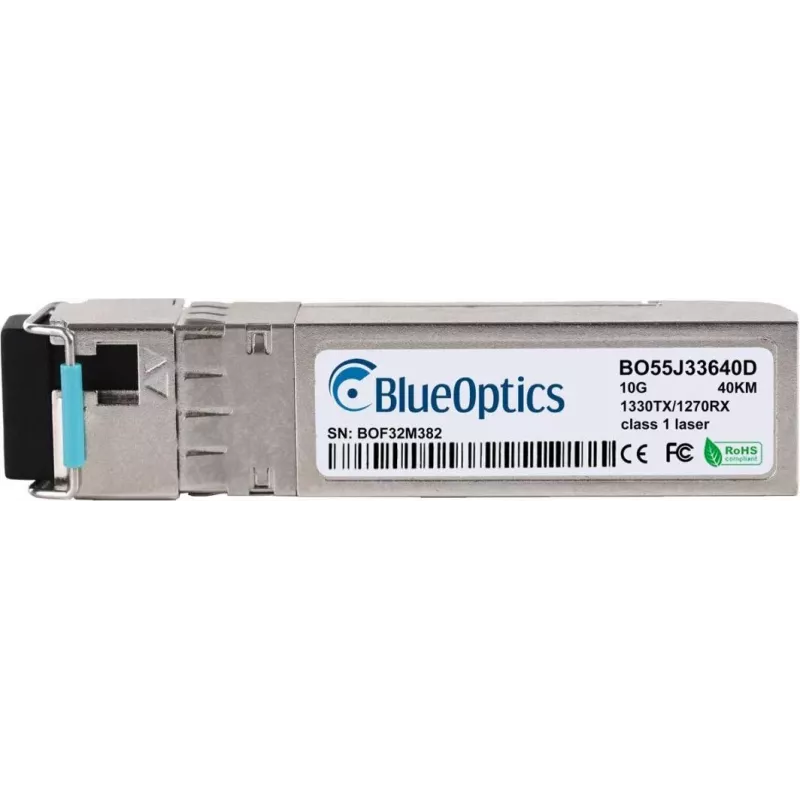

BlueOptics HPE Aruba R9X54A Compatible SFP+ Bidi Transceiver, LC-Simplex, 10GBASE-BX-D, Singlemode Fiber, TX1330nm/RX1270nm, 40km, DDM, 0°C to +70°C (R9X54A-BO)

The BlueOptics BO55J33640D is a high-performance SFP+ Bi-directional (Bidi) transceiver designed for 10 Gigabit Ethernet applications over singlemode fiber. It is fully compatible with HPE Aruba R9X54A equipment and offers reliable connectivity for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This transceiver utilizes Bidi technology to transmit and receive data over a single fiber strand, effectively doubling fiber utilization and reducing cabling costs. With a reach of up to 40 km and support for Digital Diagnostic Monitoring (DDM), it provides real-time performance monitoring and enhanced network management. The wide operating temperature range of 0°C to +70°C ensures stable operation in various environments.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications and service provider networks
• High-speed storage area networks (SAN)

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Standard: 10GBASE-BX-D
• Wavelength (Transmit): 1330 nm
• Wavelength (Receive): 1270 nm
• Max. Reach: 40 km
• Fiber Type: Singlemode (OS2)
• Connector: LC Simplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to +70°C
• Hot-Pluggable: Yes
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of LC connectors. This transceiver is a cost-effective alternative to OEM modules without compromising quality or compatibility.
